Airbag Diagnosis

Tools

The following equipment is required for troubleshooting:

1. Porsche System Tester 2

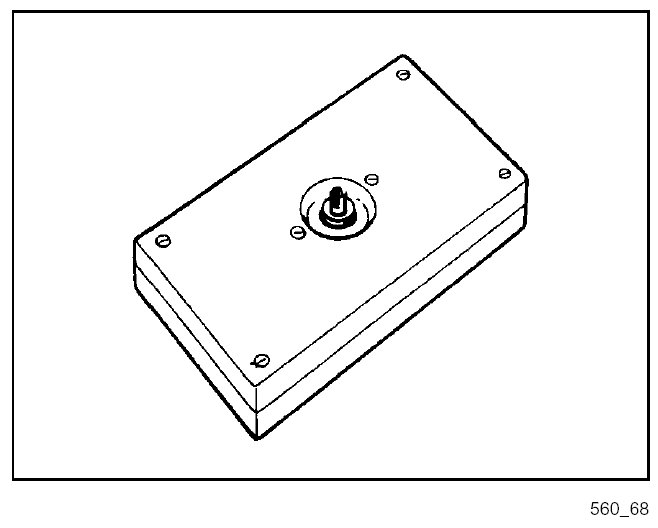

2. Special tool 9516

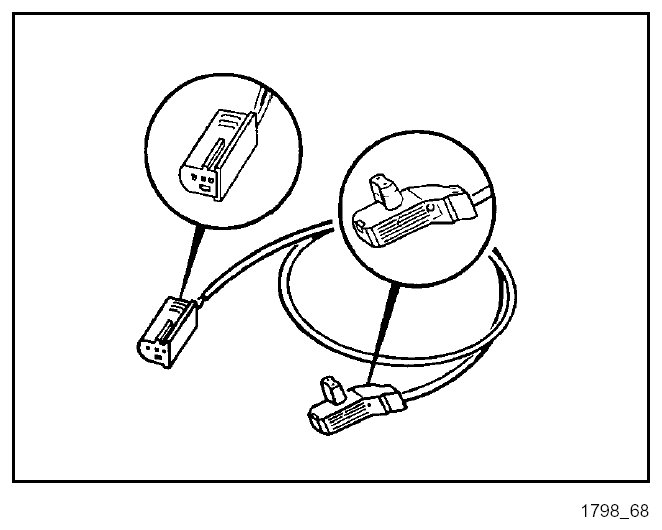

3. Special tool 9516/1

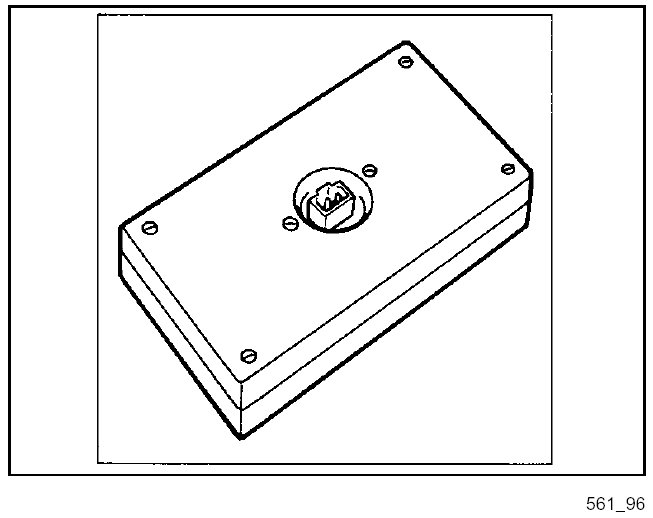

4. Special tool 9566

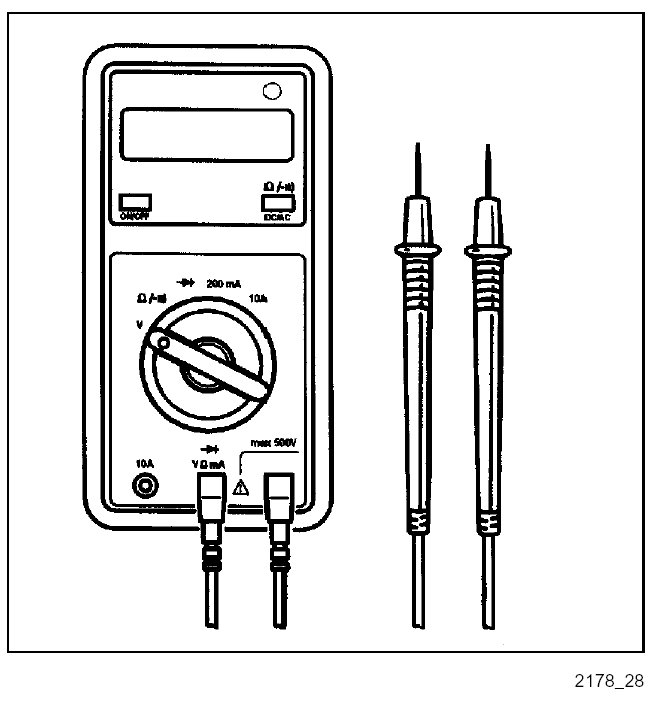

5. Commercially available digital multimeter







NOTE: The special tools are used to check the ignition pill circuits.

For safety reasons, it is not permissible to drive with special tools attached instead of the airbag units.
