Removing and Installing Flexible Rear Window of Cabriolet

Removing And Installing Flexible Rear Window Of Cabriolet
The following tools and materials are required for removal and installation of the flexible rear window of the Cabriolet:

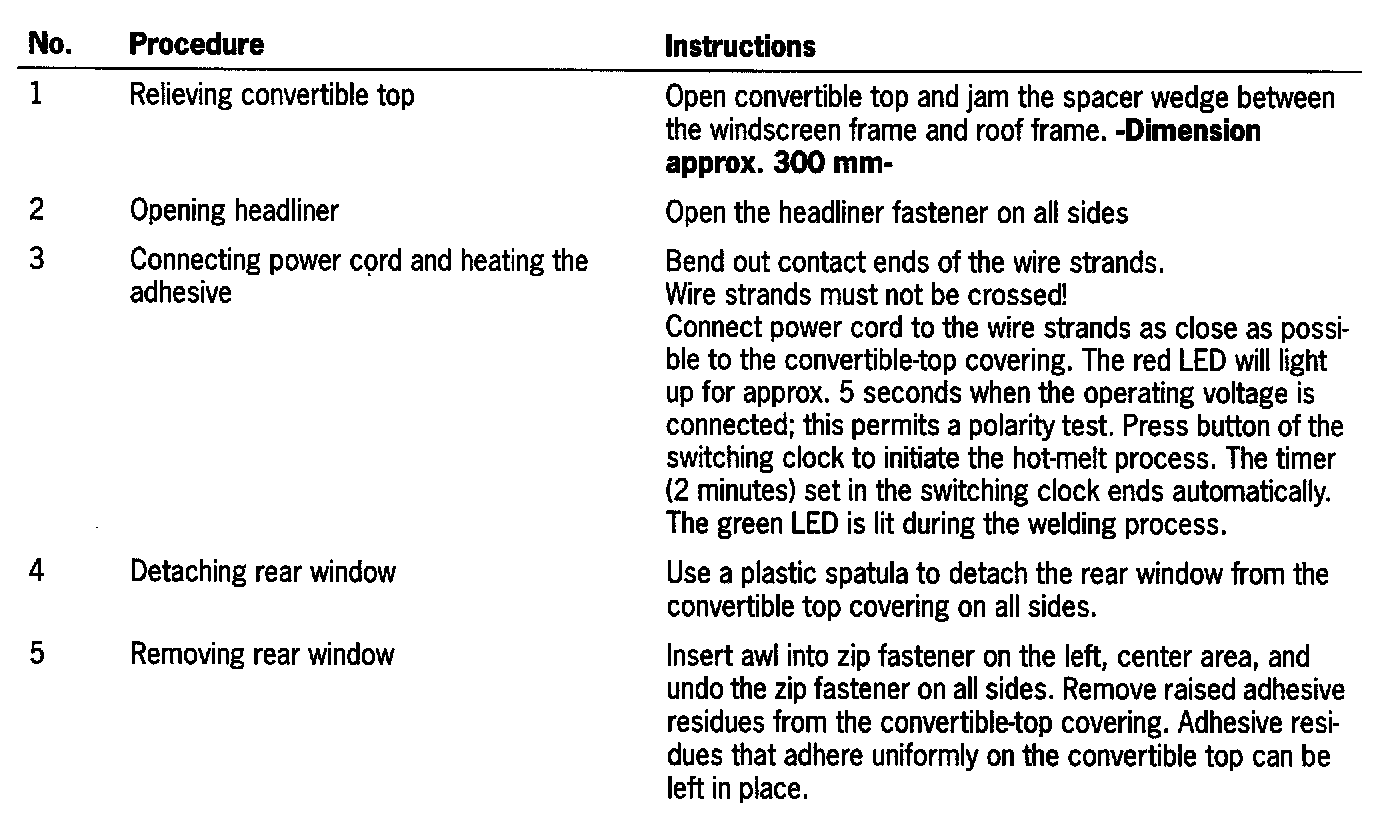

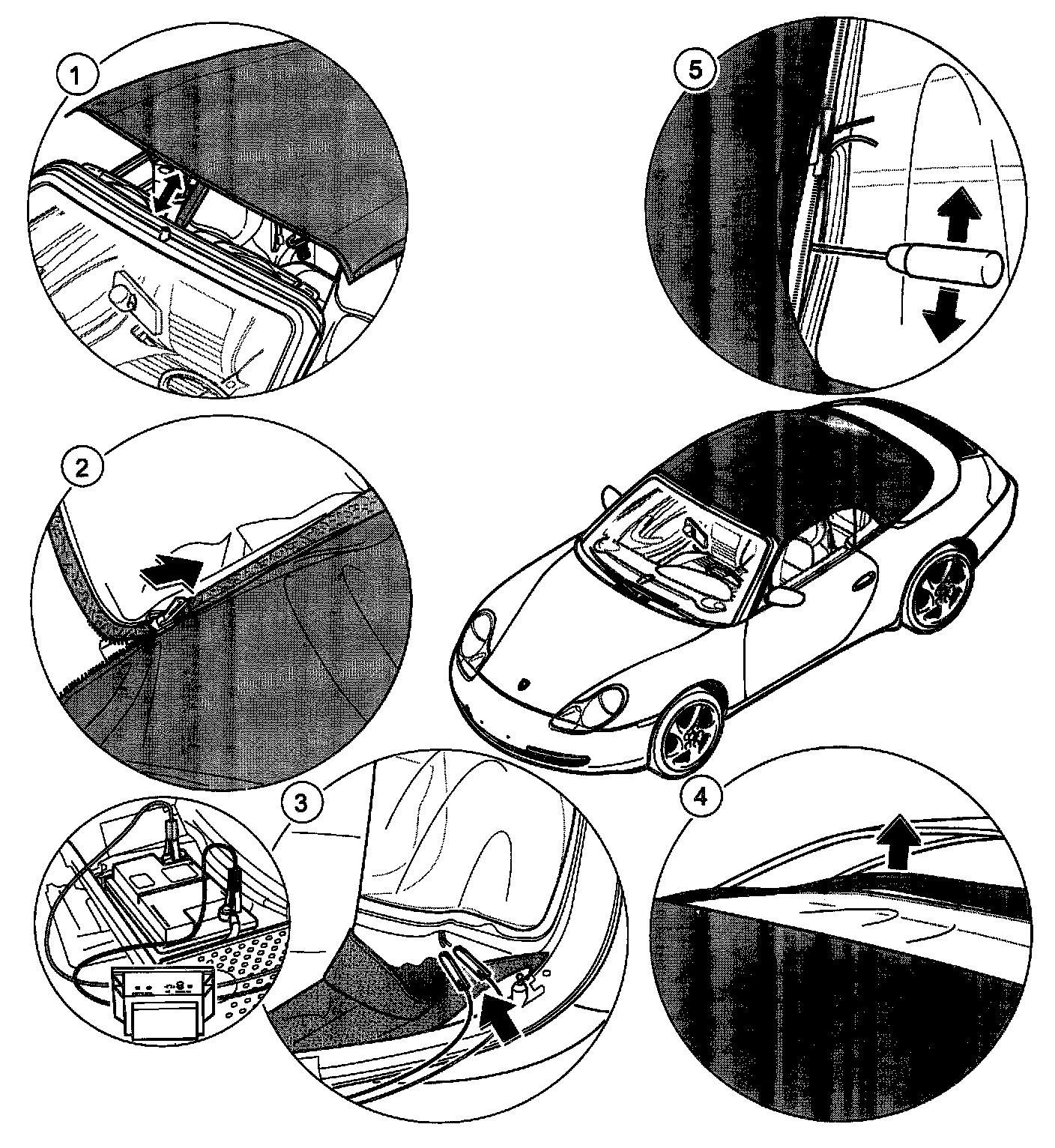

Removing Flexible Rear Window Of Cabriolet







CAUTION:
The tension bow seal can be damaged or destroyed; move the convertible top to service position during this work.
- Always observe the procedure "convertible top in service position" in order to avoid damage or destruction of the tension bow seal.

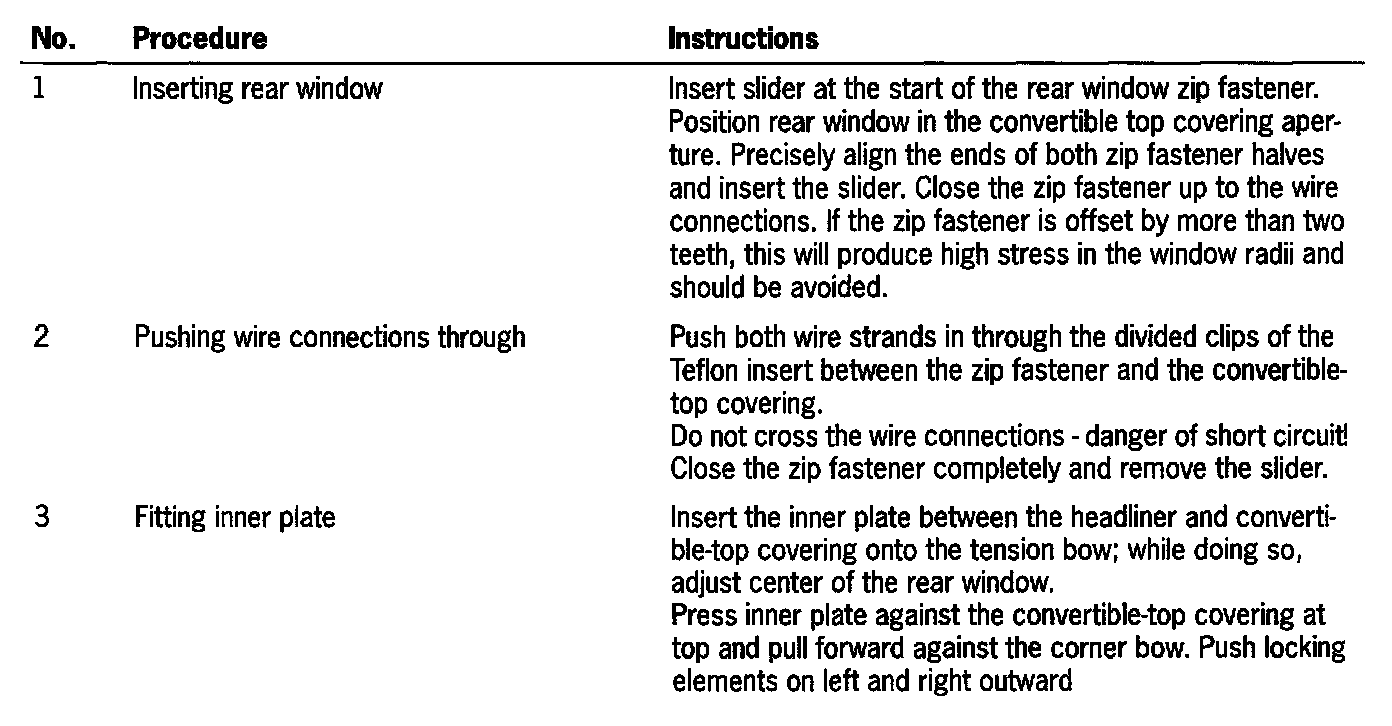

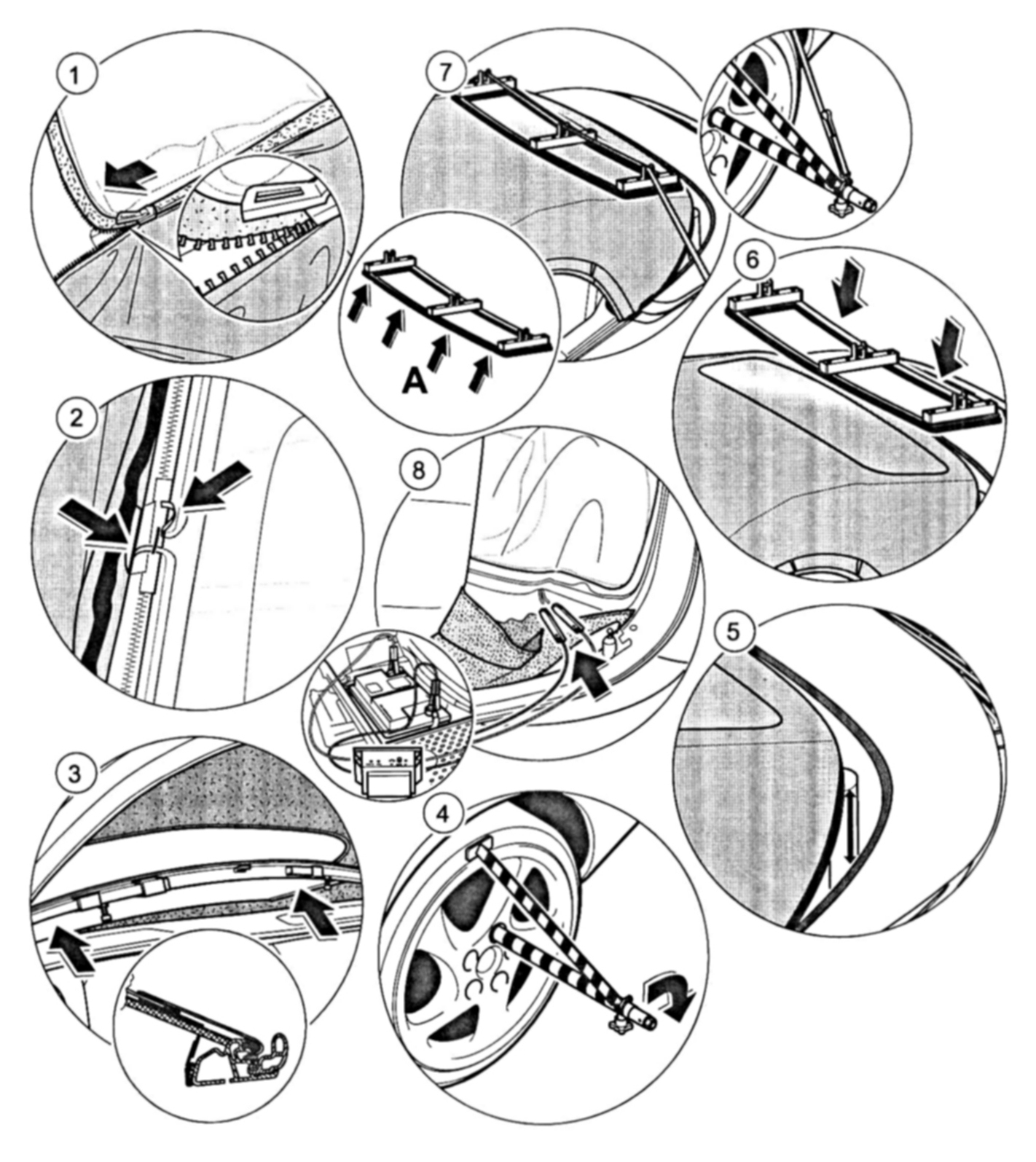

Installing Flexible Rear Window Of Cabriolet










CAUTION:

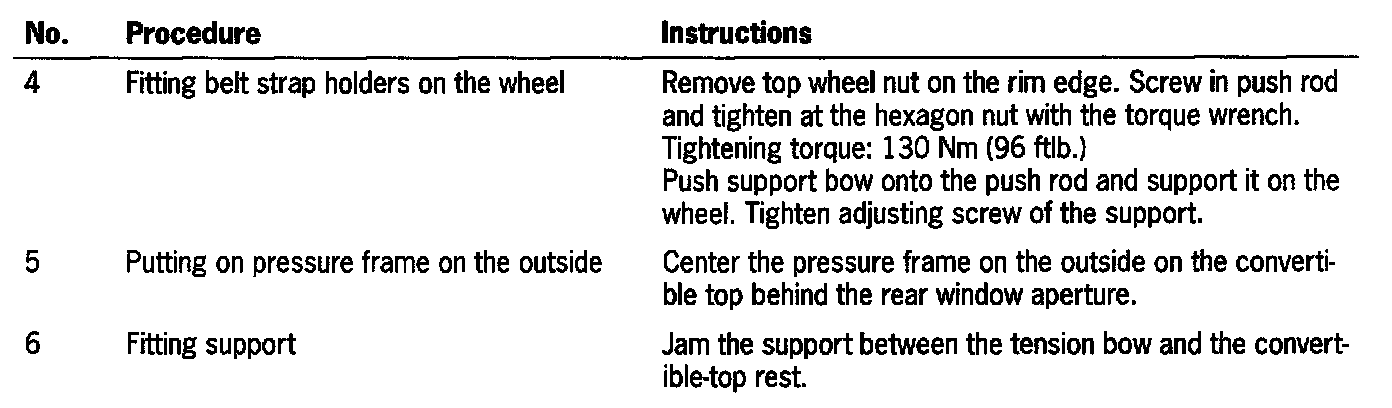

- Danger of impact with the belt strap holders fitted on wheel.
- Pay attention to the two projecting belt strap holders when working on the vehicle.

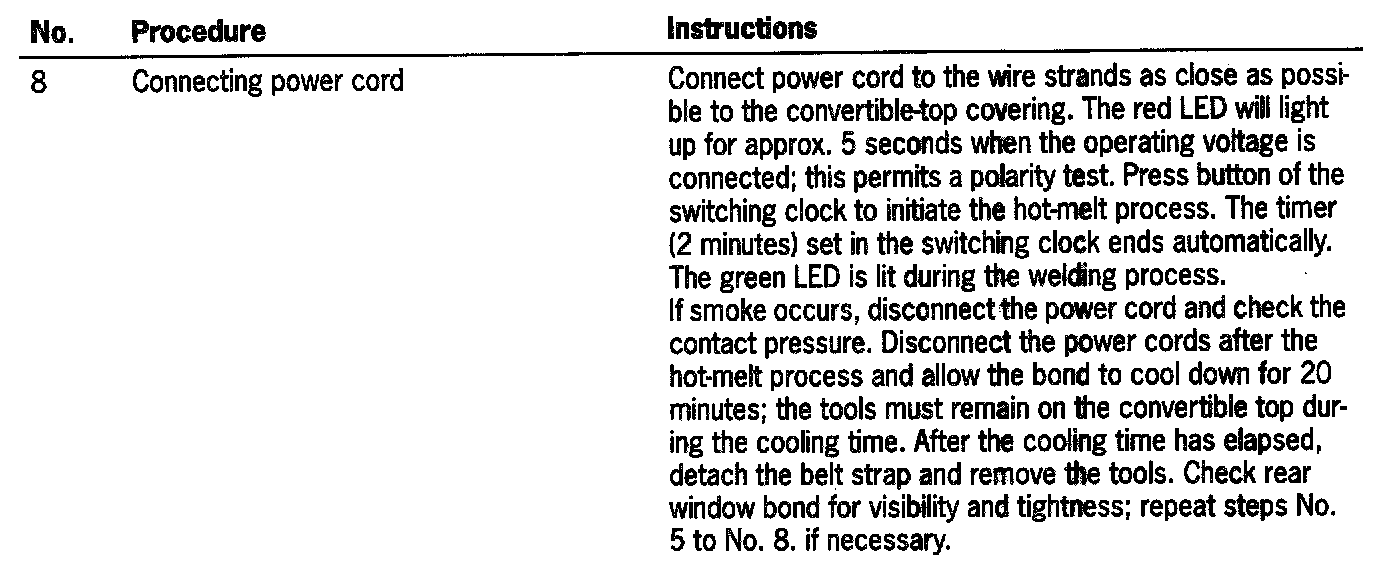

- Wire strand can crack and melt off and the rear window can be destroyed during heating

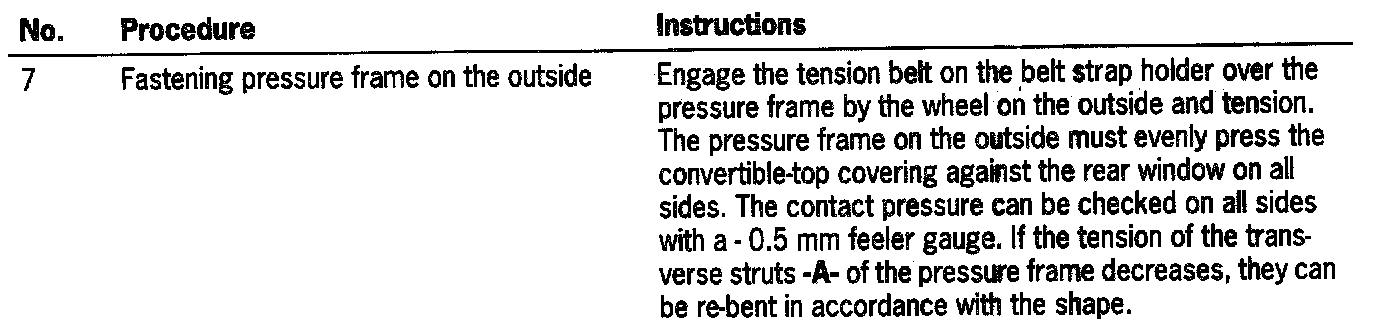

- The pressure frame must be in contact on all sides.







- Danger of short circuit and burns at the convertible top.
- Wire strands must not be crossed.

- The belt strap tension must not be changed by entering or leaving the vehicle during the hot-melt process and the cooling time.
