Comparison Table Of Input Signals

Comparison Table Of Input Signals

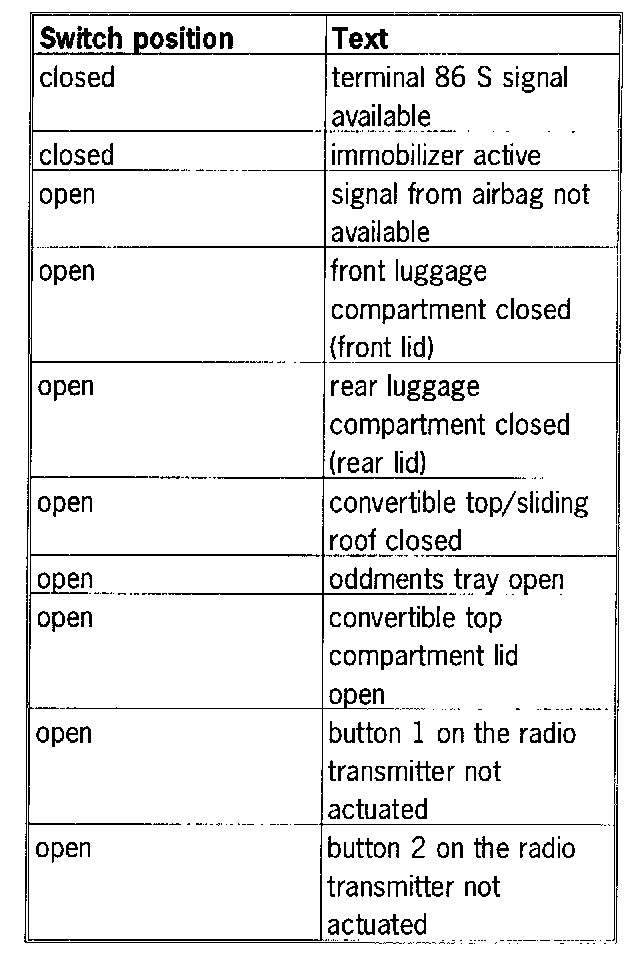

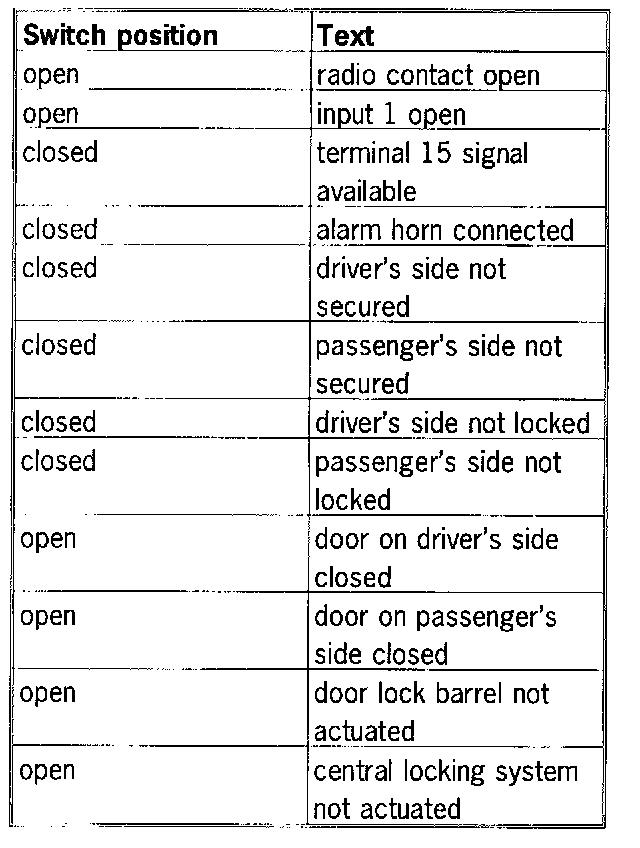

The following table represents a comparison point to the data read out from PST 2 on the vehicle, and should simplify diagnosis and troubleshooting.

Boundary conditions
- Both doors closed
- Ignition switched on
- Central locking system variant code in variant 4
- Doors not locked

Fig. 1:

Fig. 2:

NOTE: The information in the comparison table applies for vehicles with the safe function. The safe function is not provided for all countries (e.g. USA). In this case Driver's side secured and Passenger's side secured will be displayed in the PST 2. In vehicles with the safe function, this display would indicate an error in the door lock module or its wiring.
