PSM 5.3 Connector Assignment

PSM 5.3 Connector Assignment

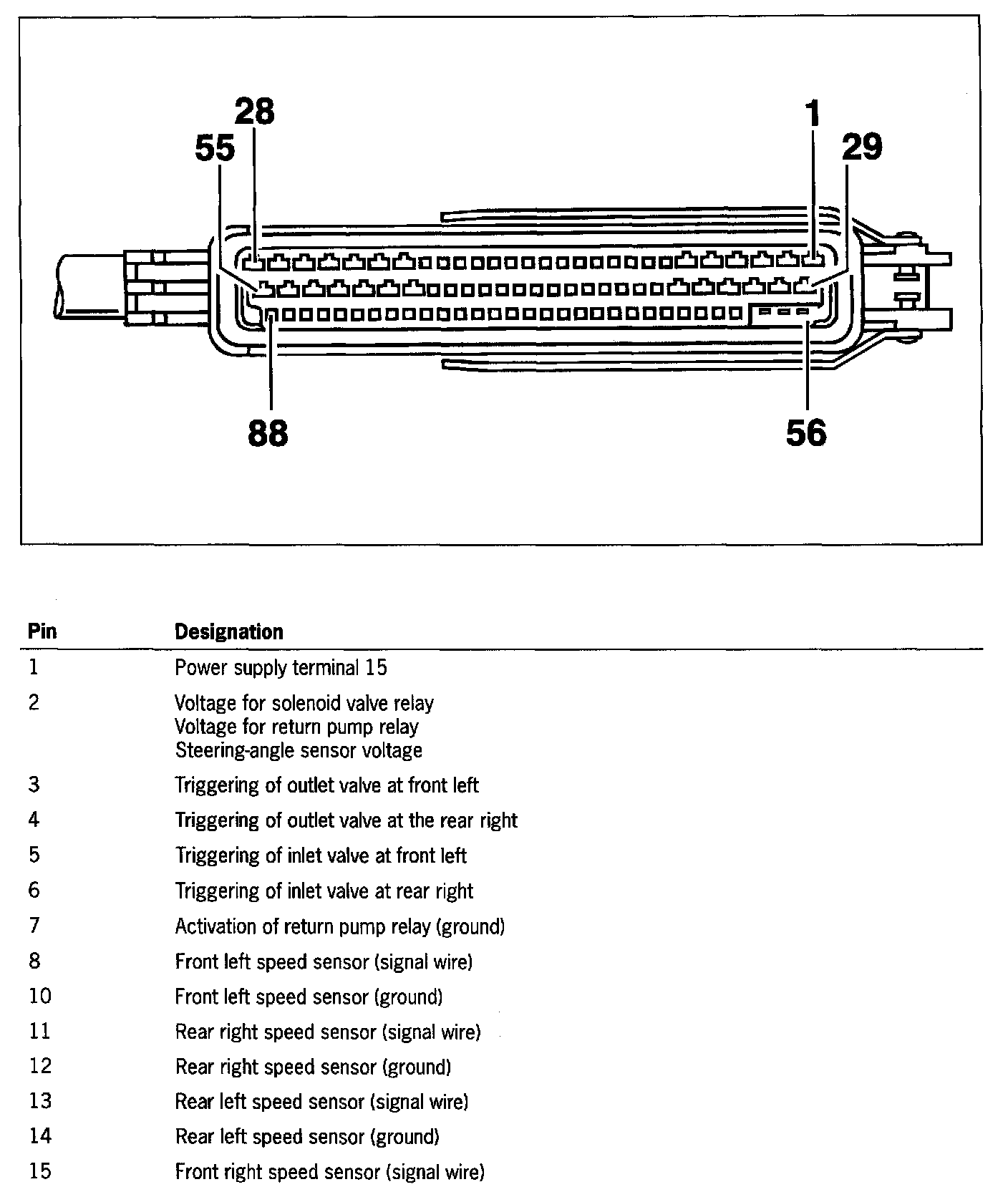

Connector of PSM 5.3 control module

Part 1:

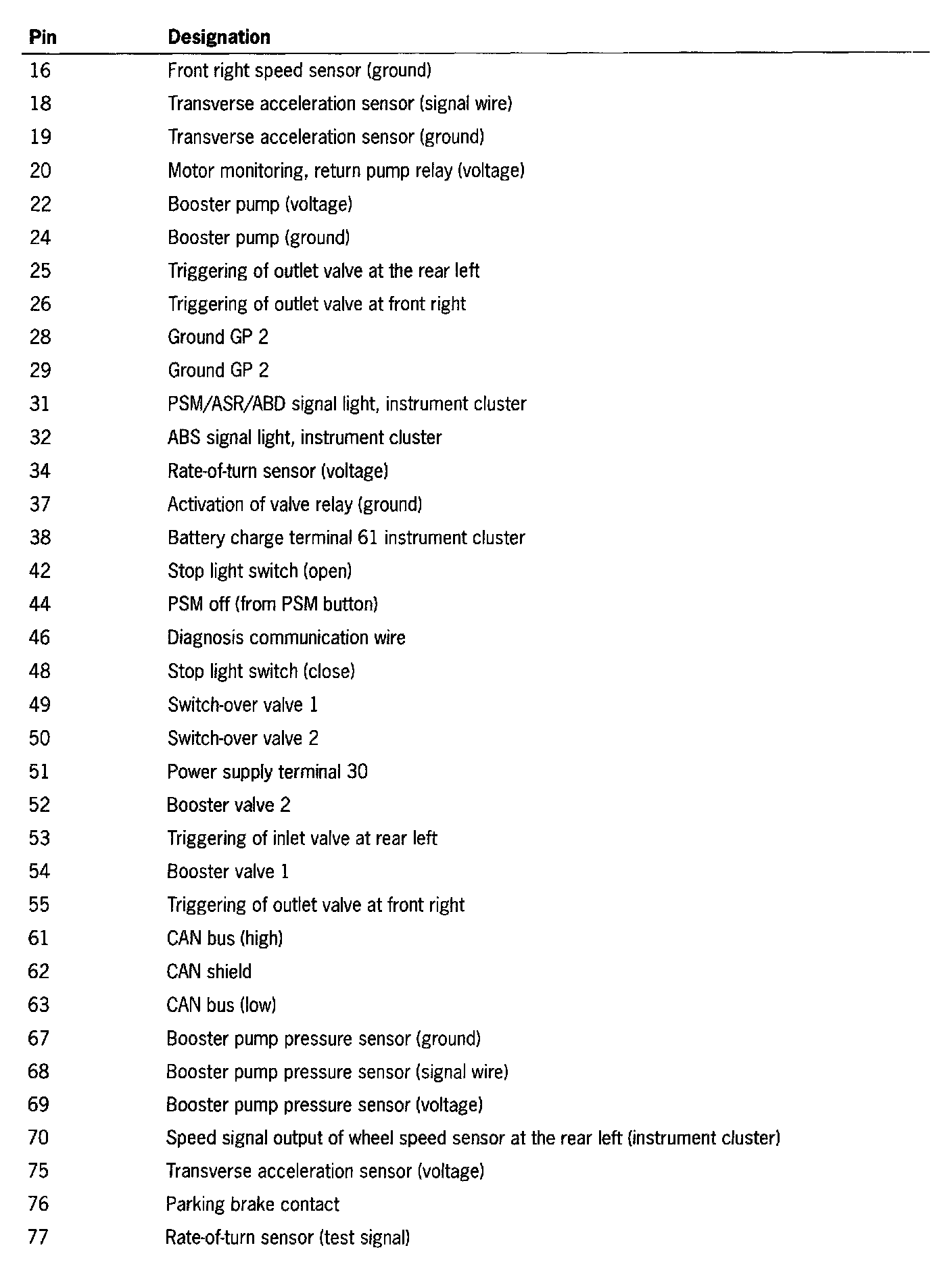

Part 2:

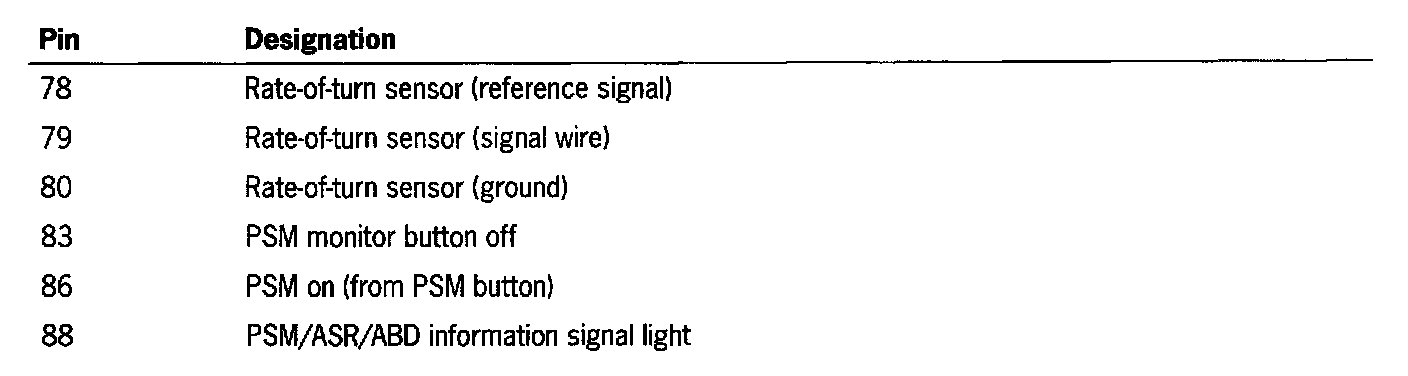

Part 3:

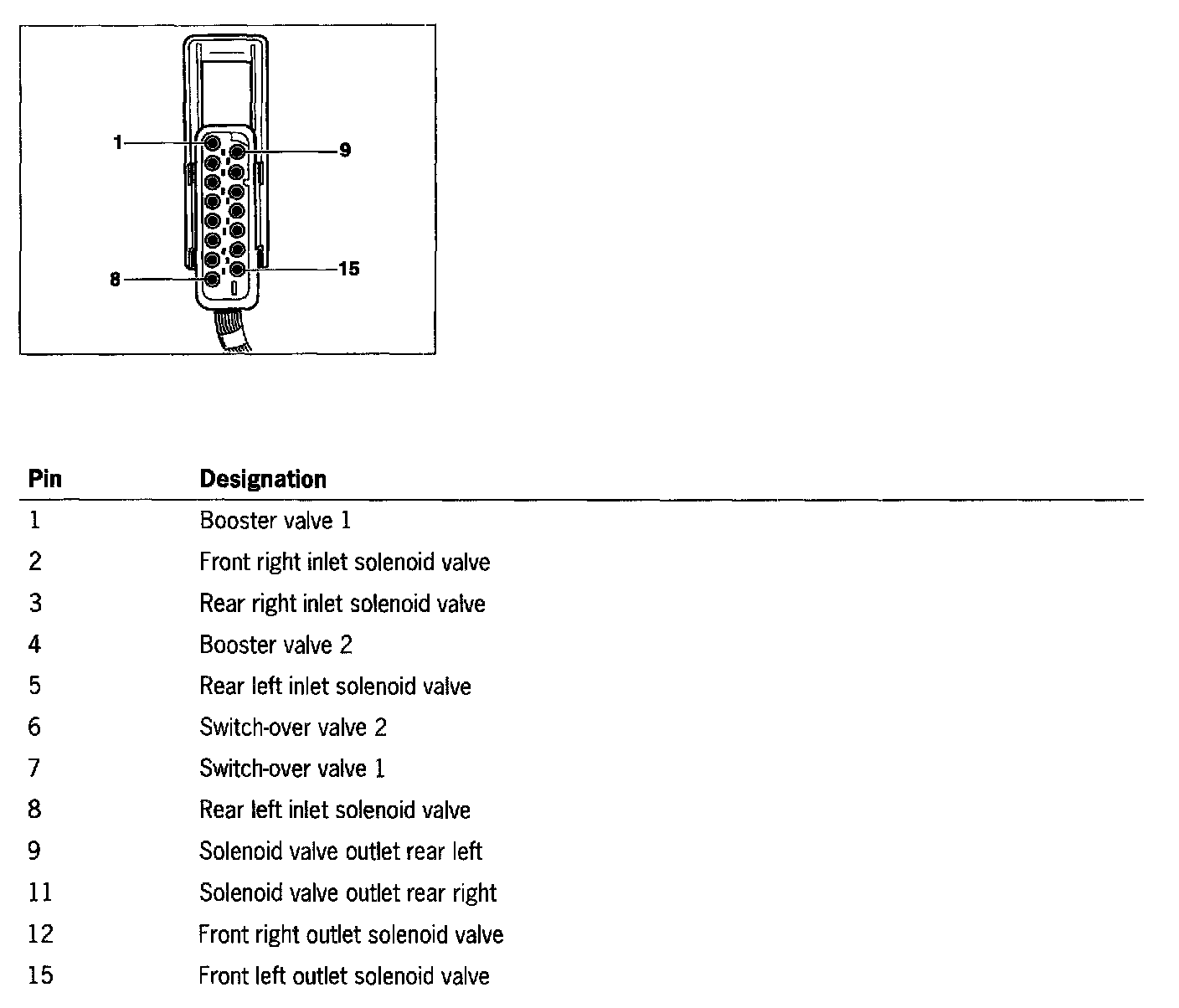

Connector of PSM 5.3 hydraulic unit







Ground points/plug connections

Ground point 2







Ground point 2 is located on the left at the front end (KS front left)

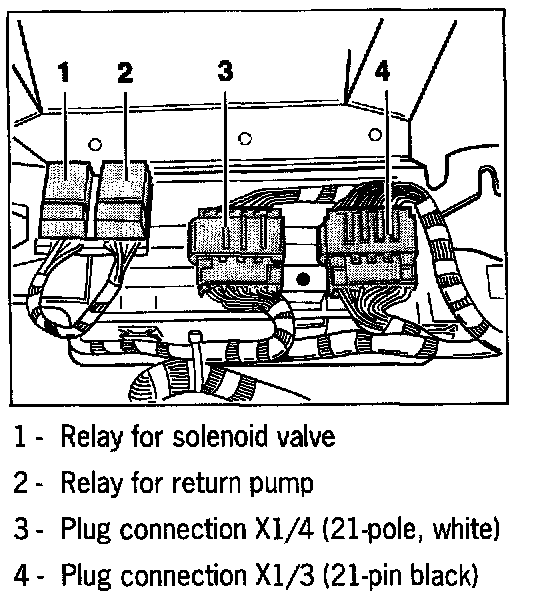

Plug connection and relays







The plug connections X1/3, X1/4 and the solenoid valve and return pump relays are located in the passenger compartment wiring harness on the left at the front behind the PSM control module.
