Fault Code 4200

Fault Code 4200

Speed Sensor Lead, Front Right

Diagnostic conditions
- Ignition on

Possible cause of fault
- Short circuit to B+/ground or open circuit between control unit and speed sensor
- Speed sensor faulty
- ABS control unit faulty

Affected pins
Pin 15 and pin 16

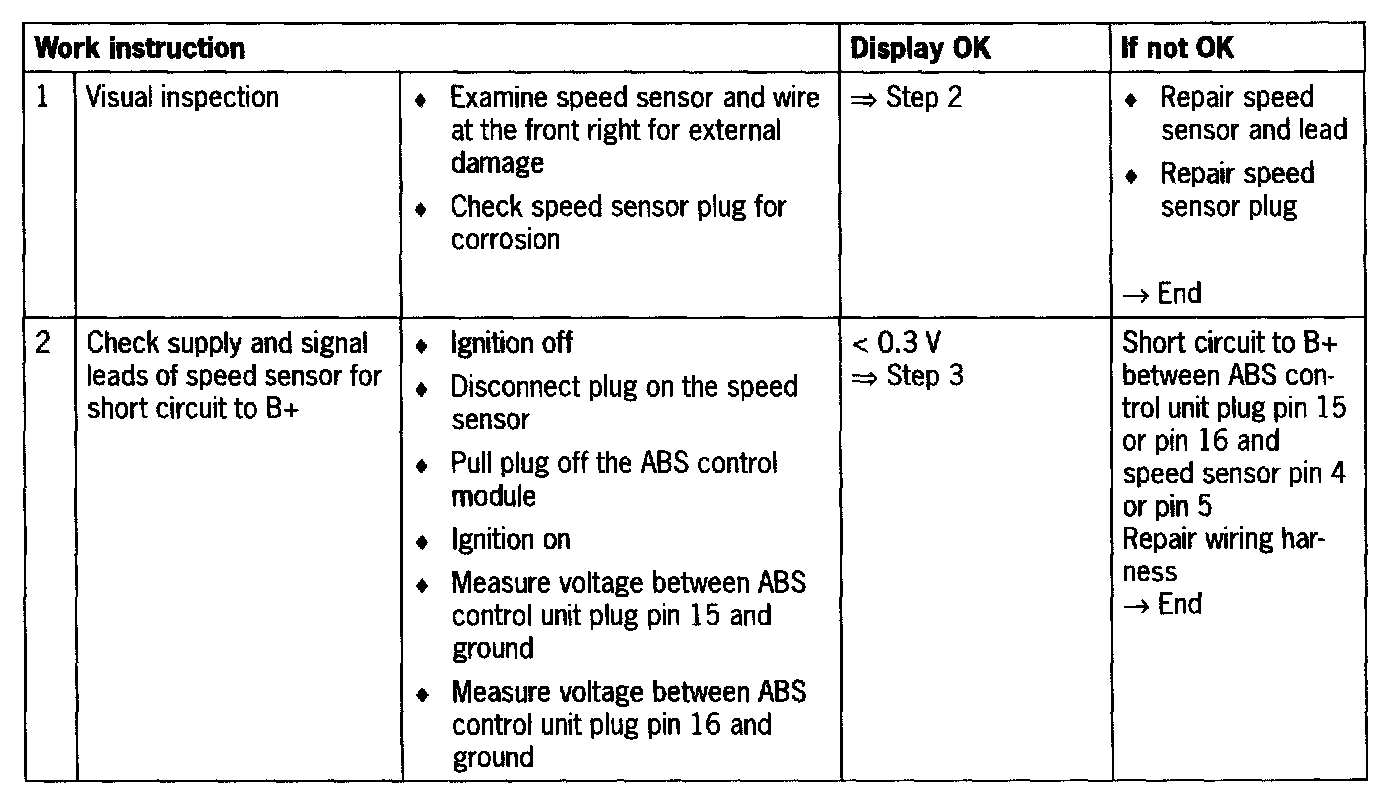

Diagnosis/troubleshooting
