Valve Lift Control, Cylinder 6 - Above Limit

P1352

628 Valve Lift Control, Cylinder 6 - Above Limit

Diagnosis conditions
- Speed between 5,280 and 6,520 rpm
- Load between 125 and 190 %
- Acceleration with wide-open throttle

Possible fault cause
- A valve does not switch to large lift
- Several valves (various cylinders) do not switch to large lift

Diagnosis/troubleshooting

Perform system test for large lift

WARNING: Test is carried out while driving. Have a second person operate the Porsche System Tester 2.

During the system test for large lift, the valves remain at large lift, regardless of the type of driving. Faulty switching conditions can be detected by rough running, just like with misfire detection. If a valve is not switched to large lift, the fault type 'over limit' is recorded.

Several cylinders may be stored as faulty, although only 1 valve on one cylinder is faulty.

In order to guarantee safety during repairs, the flat-base tappets of the inlet valves of the entire cylinder bank should be replaced if a fault occurs.

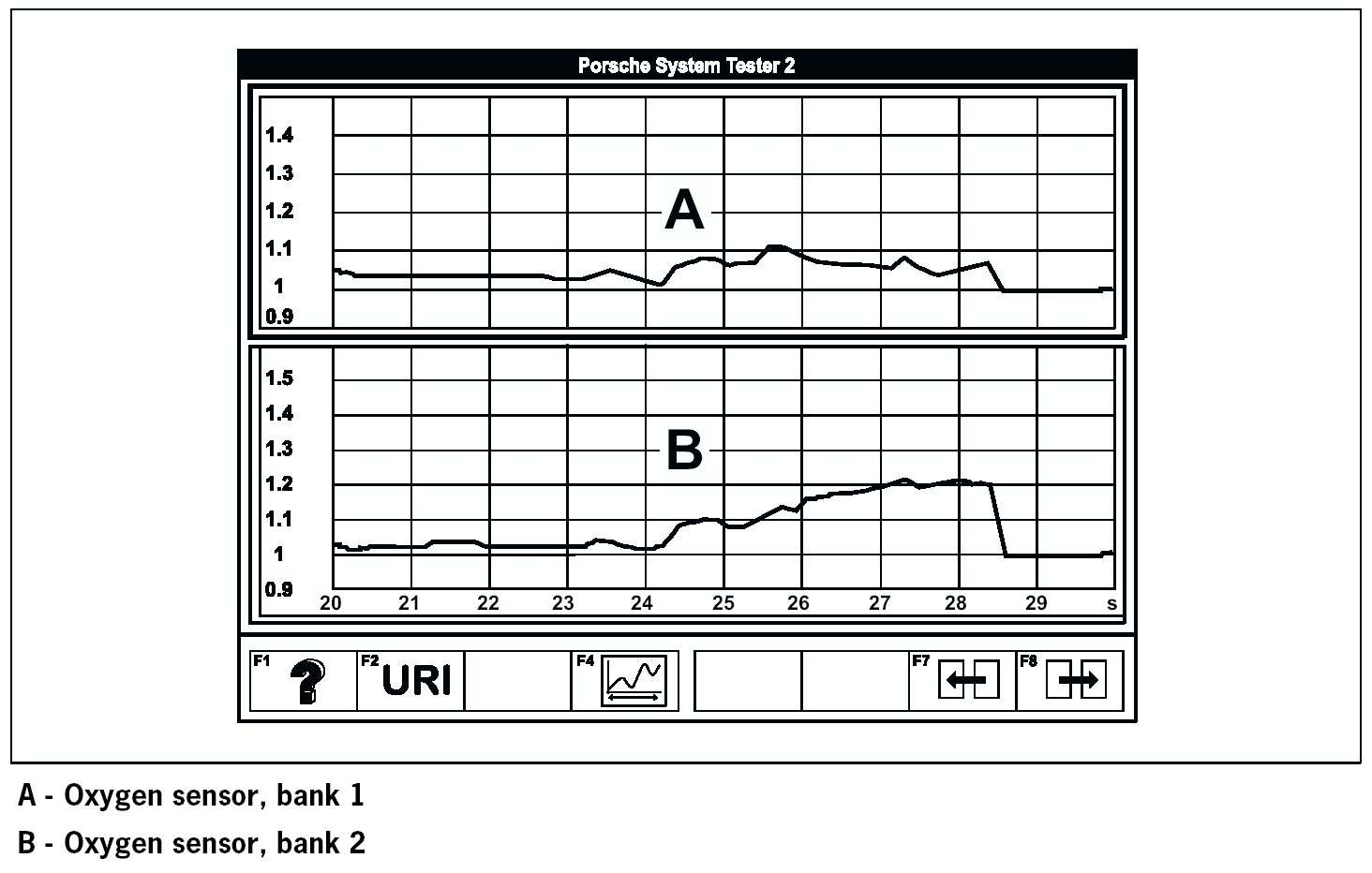

A faulty flat-base tappet can be detected because the oxygen sensor F(R) for this cylinder bank hardly changes the mixture at all given acceleration with wide-open throttle (F(R) at 1) and enriches the mixture in the opposite cylinder bank (F(R) > 1) - see drawing below. Given a difference between F(R1) and F(R2) of more than 8 % during acceleration with wide-open throttle, a fault is certainly present.

If the difference is less than 4 %, 1 valve may be faulty on both cylinder banks. In this case, all flat-base tappets of the inlet valves must be replaced.

1 - Select system test.
2 - Select 'Request large lift'.
If "Valve diagnosis not ready" appears, a fault may have been stored.
1. Erase the fault memory.

3 - Activate the system test with the key [F8] immediately before acceleration with wide-open throttle.
The message "Drive link active" then appears.

4 - Perform acceleration with wide-open throttle in 2nd gear, until "Valve lift diagnosis complete" appears.

NOTE:
- If a fault is detected, it is only recorded in the fault memory after 6,000 ignitions (at idling speed approx. 3 minutes waiting time).
- It is important to observe the oxygen sensor during acceleration with wide-open throttle or to record its behaviour with the data logger.
- If misfires are stored, see Troubleshooting misfires.

628 Valve lift control, cylinder 6 - below limit

Diagnosis conditions
- Speed between 2,000 and 3,320 rpm
- Load between 45 and 70 %
- Acceleration with wide-open throttle

Possible fault cause
- A valve does not switch to small lift
- Several valves (various cylinders) do not switch to small lift

Diagnosis/troubleshooting

Perform system test for small lift

WARNING: Test is carried out while driving. Have a second person operate the Porsche System Tester 2.

During the system test for small lift, the valves remain at small lift, regardless of the type of driving. Faulty switching conditions can be detected by rough running, just like with misfire detection. If a valve is not switched to small lift, the fault type 'under limit' is recorded.

Several cylinders may be stored as faulty, although only 1 valve on one cylinder is faulty.

In order to guarantee safety during repairs, the flat-base tappets of the inlet valves of the entire cylinder bank should be replaced if a fault occurs.

A faulty flat-base tappet can be detected because the oxygen sensor F(R) for this cylinder bank enriches the mixture (F(R) > 1) during acceleration with wide-open throttle - see drawing below. Difference from the other oxygen sensor > approx. 15 %. In the case of a fault, the flat-base tappets of the inlet valves for the entire cylinder bank must be replaced.

1 - Select system test.
2 - Select 'Request small lift'.
If "Valve lift diagnosis not ready" appears, a fault may have been stored.
1. Erase the fault memory.

3 - Activate the system test with the key [F8] immediately before acceleration with wide-open throttle.
The message "Drive link active" then appears.

NOTE: If 'Request small lift' appears, the valves remain at small lift, i.e. the performance is reduced dramatically.

4 - Perform acceleration with wide-open throttle in 2nd gear, until "Valve lift diagnosis complete" (max. 4,000 rpm) appears.
At speeds above 4,000 rpm, misfires may be stored. Delete the fault memory and repeat the test.

NOTE:
- If a fault is detected, it is only recorded in the fault memory after 6,000 ignitions (at idling speed approx. 3 minutes waiting time).
- It is important to observe the oxygen sensor during acceleration with wide-open throttle or to record its behaviour with the data logger.

628 Valve lift control, cylinder 6 - signal implausible

Diagnosis conditions
- Speed between 2,000 and 3,320 rpm and between 5,280 and 6,520 rpm
- Load between 45 and 70 % and between 125 and 190 %
- Acceleration with wide-open throttle

Possible fault cause
- A valve does not switch to large lift
- Several valves (various cylinders) do not switch to large lift

and

- A valve does not switch to small lift
- Several valves (various cylinders) do not switch to small lift

Diagnosis/troubleshooting

Perform system test for large lift

WARNING: Test is carried out while driving. Have a second person operate the Porsche System Tester 2.

During the system test for large lift, the valves remain at large lift, regardless of the type of driving. Faulty switching conditions can be detected by rough running, just like with misfire detection. If a valve is not switched to large lift, the fault type 'over limit' is recorded.

Several cylinders may be stored as faulty, although only 1 valve on one cylinder is faulty.

In order to guarantee safety during repairs, the flat-base tappets of the inlet valves of the entire cylinder bank should be replaced if a fault occurs.

A faulty flat-base tappet can be detected because the oxygen sensor F(R) for this cylinder bank hardly changes the mixture at all given acceleration with wide-open throttle (F(R) at 1) and enriches the mixture in the opposite cylinder bank (F(R) > 1) - see drawing below. Given a difference between F(R1) and F(R2) of more than 8 % during acceleration with wide-open throttle, a fault is certainly present.

If the difference is less than 4 %, 1 valve may be faulty on both cylinder banks. In this case, all flat-base tappets of the inlet valves must be replaced.

1 - Select system test.
2 - Select 'Request large lift'.
If "Valve diagnosis not ready" appears, a fault may have been stored.
1. Erase the fault memory.

3 - Activate the system test with the key [F8] immediately before acceleration with wide-open throttle.
The message "Drive link active" then appears.

4 - Perform acceleration with wide-open throttle in 2nd gear, until "Valve lift diagnosis complete" appears.

NOTE:
- If a fault is detected, it is only recorded in the fault memory after 6,000 ignitions (at idling speed approx. 3 minutes waiting time).
- It is important to observe the oxygen sensor during acceleration with wide-open throttle or to record its behaviour with the data logger.
- If misfires are stored, see Troubleshooting misfires.

Perform system test for small lift

WARNING: Test is carried out while driving. Have a second person operate the Porsche System Tester 2.

During the system test for small lift, the valves remain at small lift, regardless of the type of driving. Faulty switching conditions can be detected by rough running, just like with misfire detection. If a valve is not switched to small lift, the fault type 'under limit' is recorded.

Several cylinders may be stored as faulty, although only 1 valve on one cylinder is faulty.

In order to guarantee safety during repairs, the flat-base tappets of the inlet valves of the entire cylinder bank should be replaced if a fault occurs.

A faulty flat-base tappet can be detected because the oxygen sensor F(R) for this cylinder bank enriches the mixture (F(R) > 1) during acceleration with wide-open throttle - see drawing below. Difference from the other oxygen sensor > approx. 15 %. In the case of a fault, the flat-base tappets of the inlet valves for the entire cylinder bank must be replaced.
