The operating state of the central locking system is fed back via the output 'Door locked' and by corresponding activation of the interior light(signals 1 to 3). The operating state of the alarm system is also indicated during the inactive period by the alarm readiness display (display types 1 to 6). It is indicated exclusively by the alarm readiness display after the inactive period has expired. Displayed system faults are always current faults. Previous system faults entered in the status memory have no effect on the function display.

Display type 1 (normal flashing)
Requirement: Alarm system primed No alarm output or no active alarm input after re-locking if no alarm input is active.
Duration: Until deactivation, then display type 6.
LED flashes with a frequency of 0.5 Hz
On time 100 ms
Out time 1,900 ms

Display type 2 (double flashing)
Requirement: After alarm output or active alarm input following activation or re-locking.
Duration: Until deactivation, then display type 6.
LED flashes with a frequency of 0.5 Hz
On time 1, 2 100 ms
Out time 1 200 ms
Out time 2 1,700 ms

Display type 3 (rapid flashing)
Requirement: Alarm system primed No active alarm inputs.
Duration: Inactive period, then display type 1.
LED flashes with a frequency of 2 Hz
On time 100 ms
Out time 400 ms

Display type 4 (rapid flashing)
Requirement: Reception of an adapted handheld transmitter.
Duration: Push of the button
LED flashes with a frequency of 10 Hz
On time 50 ms
Out time 50 ms

Display type 5 (on)
Requirement: After central locking system emergency locking or after locking command is given twice via hand-held transmitter or door lock.
Duration: For inactive period following central locking system emergency locking, then display type 2 for inactive period following locking command given twice, then display type 1.
LED is continuously on.

Display type 6 (off)

LED is not switched on.

In addition, the checkback of faults and of the standard status is performed with signal 3 at the interior light output. An audible check-back via the alarm horn output also takes place at the alarm system control module, together with a visual checkback via the outputs for the direction indicator lights.

Signal 1:
The outputs are triggered once.
On time 50 ms

Signal 2:
The outputs are triggered twice.
On time 1, 2 50 ms
Out time 200 ms

Signal 3:
The outputs are triggered once.
On time 2,500 ms

These functions can be switched on and off with the Porsche System Tester II No. 9588, depending on the country variants. The times are freely programmable.

Assignment of the display type of the alarm readiness light to the operating state.

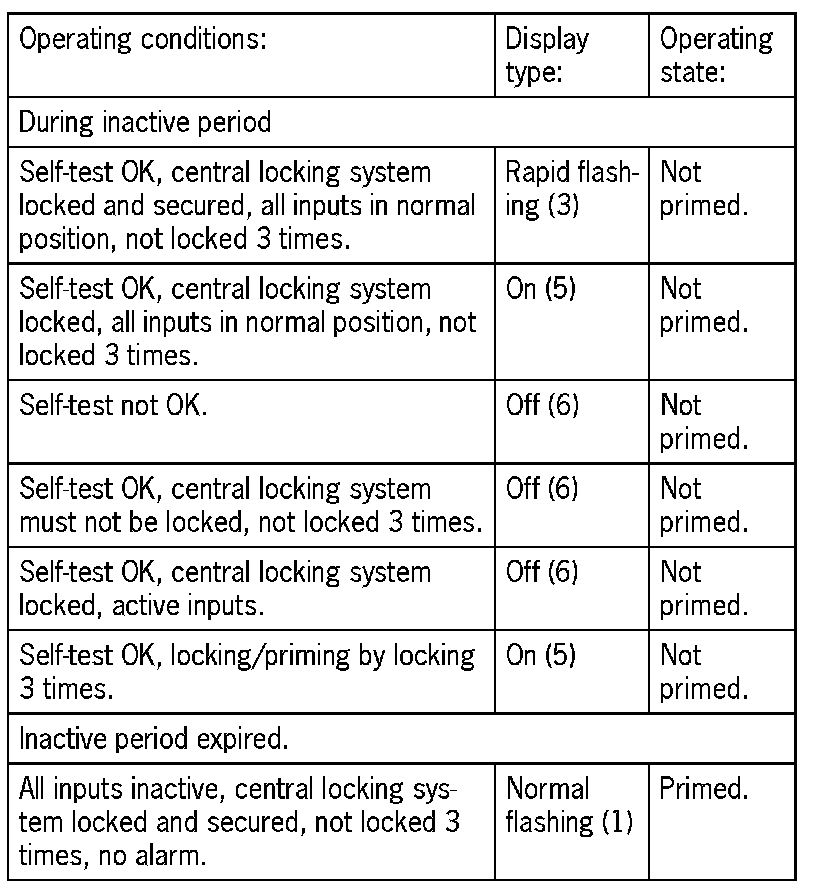

Part 1:

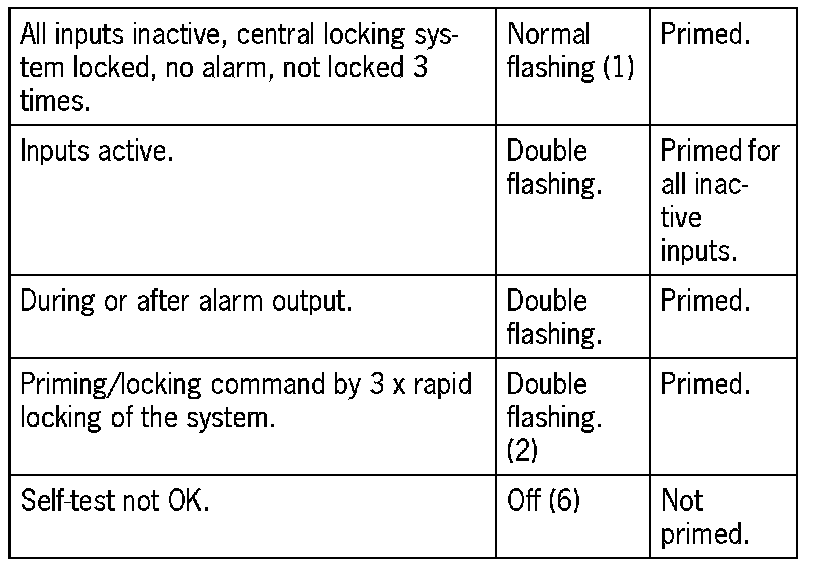

Part 2:

If a control command is issued via the hand-held transmitter, this is confirmed with display type 4 for the duration of the operation. This display has priority.
