Accessories and Optional Equipment: Service and Repair

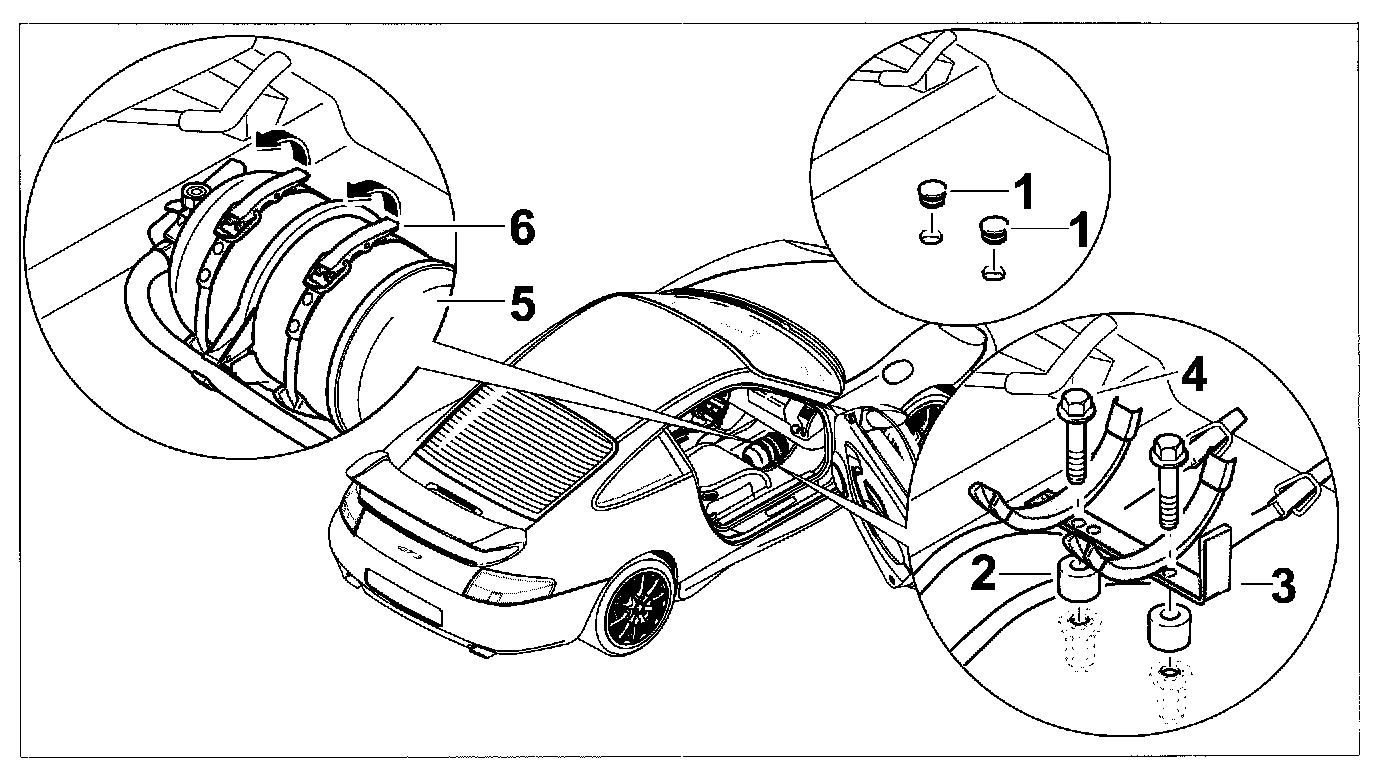

Installing Fire Extinguisher - GT3







1. Remove closure caps -1- from the floor covering.
2. Position spacer sleeve -2- with bracket -3- on the floorpan and tighten with fastening screw -4-. Ensure that the cutout of the spacer sleeve is installed in the floorpan. Tightening torque: 50 Nm (37 ftlb.)
3. Position fire extinguisher -5- in the bracket.
4. Close fastening strap -6-.
