Fog/Driving Lamp Bulb: Service and Repair

Removing And Installing Bulb For Fog Light

Removal
1. Remove and install main headlight.
2. Rotate the round cover in the headlight housing clockwise and remove.
3. Disconnect electrical connection of defective bulb (do not pull on the wires).

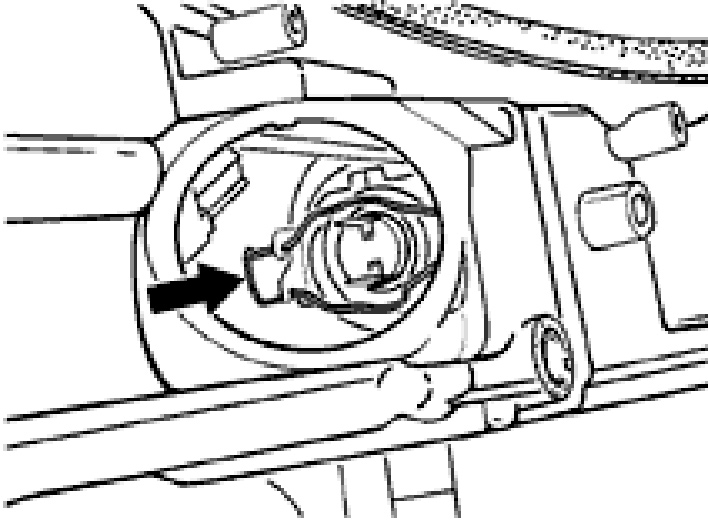

4. Press down retaining bracket (arrow) and swivel downwards. Remove defective bulb.







Installation
1. Install new bulb and ensure that it is correctly seated.
2. Attach retaining bracket and engage electrical plug connection.
3. Close cover and install main headlight. Perform a function test.
