Coding

Coding

Extract coding
Under the menu item "Extract coding" you can read out which equipment features are activated and which are not.

Also, it is possible to read out the vehicle type and the data record version, and where the airbag triggering unit was locked.

The following equipment features can be read out:
- Driver's/passenger's airbag
- Buckle (detects whether seat belt is fastened)
- Child seat occupancy (detects whether a child seat is being used on the passenger's side)
- USA (vehicles)

Modify coding
Under the menu item "Change coding" you can adapt the airbag triggering unit to the vehicle equipment.

After the airbag triggering unit is replaced, the coding must be adapted to the vehicle equipment.

The following equipment features can be changed:
- Driver's/passenger's airbag
- Buckle
- Seat belt tensioner
- Child seat occupancy (passenger)
- USA (vehicles)

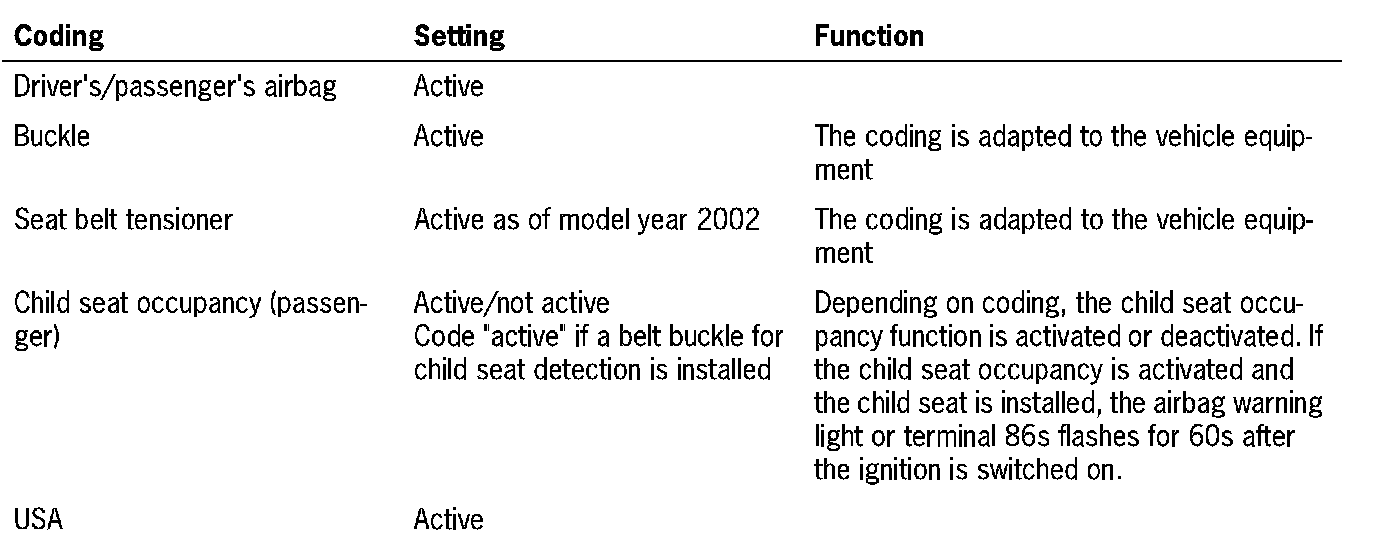

Coding table for USA vehicles







Coding table for RoW vehicles

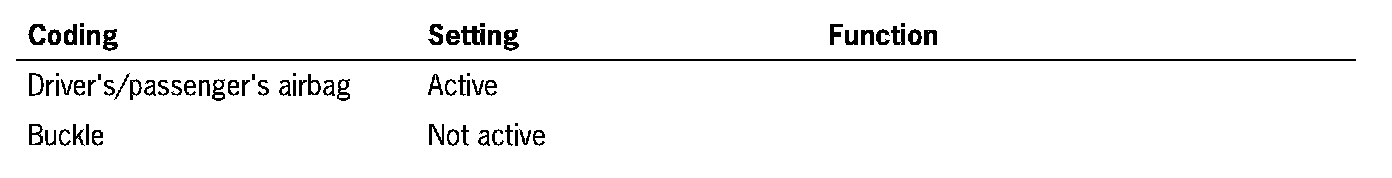

Part 1:

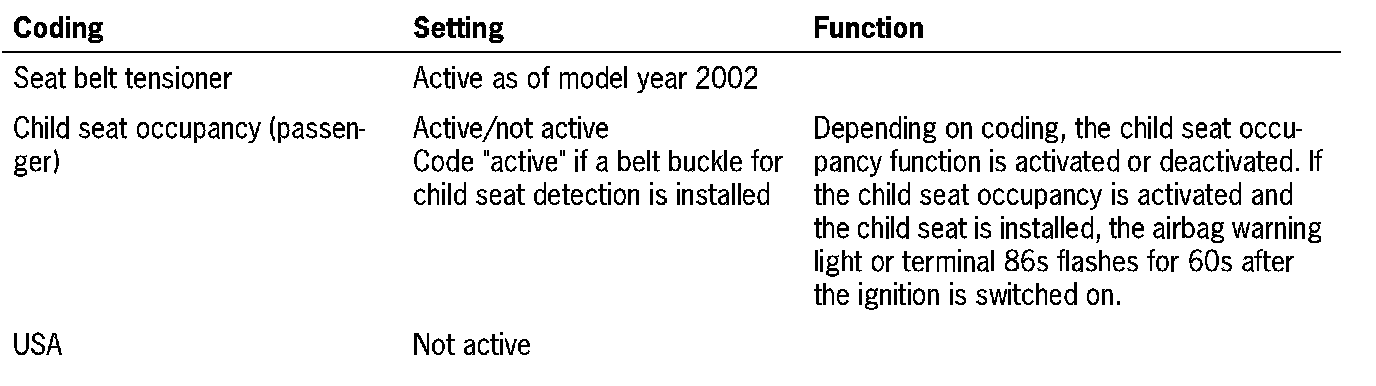

Part 2:

NOTE:
- When the coding is changed in the menu item "Change coding", the ignition must always be switched off afterwards and the key removed.
- After the ignition is switched on again, the new coding from the airbag triggering unit is updated and the stored faults can be erased.
- If the coding does not agree with the vehicle equipment, faults will be displayed that do not really exist.

Child seat occupancy
In relation to this, see Technical Information - Retrofitting bar with belt lock and activating child seat occupancy
