Adjustment Values For Suspension Alignment - GT3

Adjustment Values For Suspension Alignment - GT3

Vehicle Height







- The following values (vehicle height and wheel-alignment values) relate to the empty weight, i.e. full fuel tank, vehicle with Tire Fit and tools, but without driver and without additional weights.
- There is no difference in adjustment between the 911 GT3 M002 = street version and 911 GT3 M003 = Club Sport version.
- The GT3 - as of model year 2004 will also be offered in the USA. The values listed are applicable for RoW and USA.

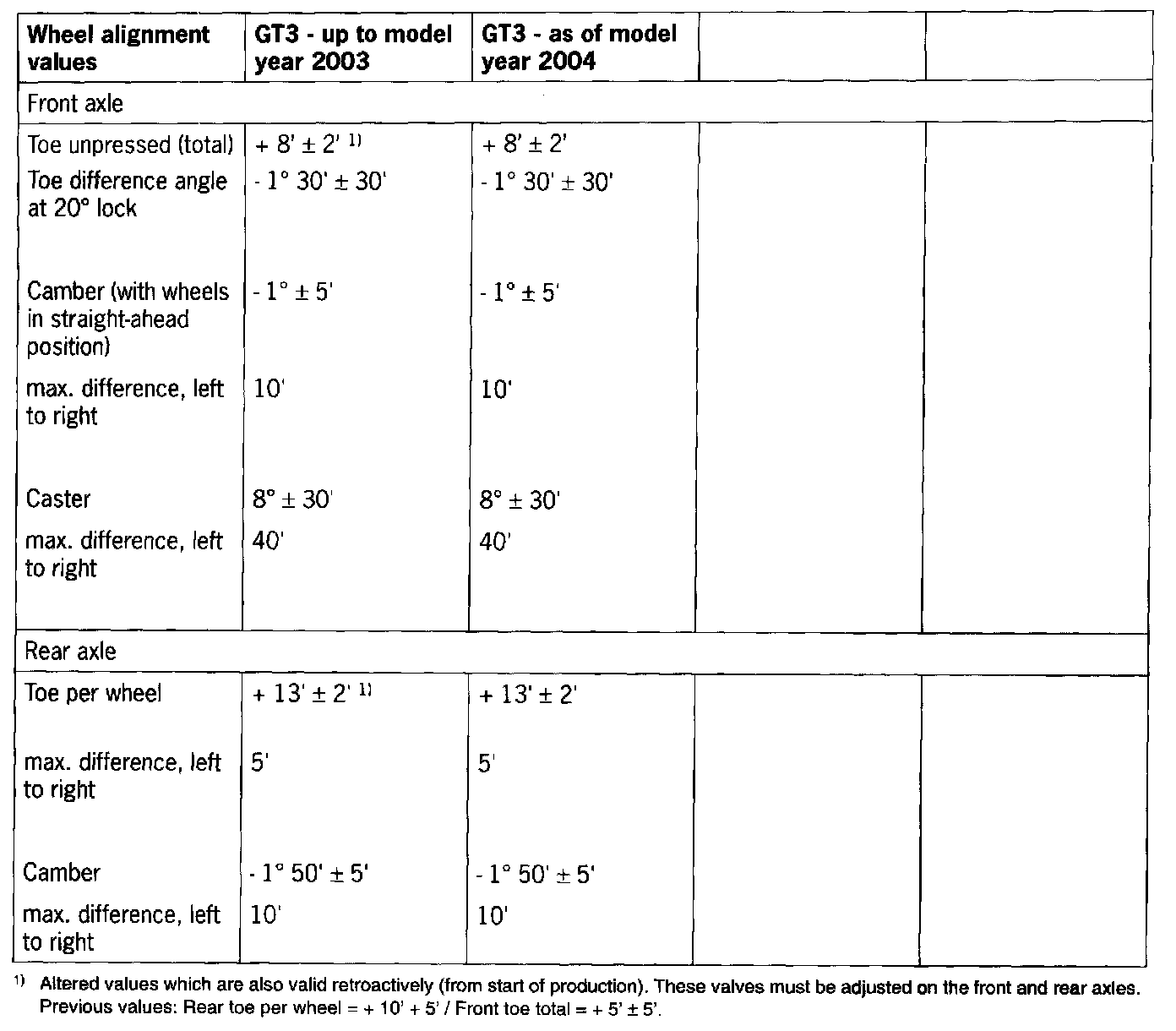

Wheel Alignment Values







- The following values (vehicle height and wheel-alignment values) relate to the empty weight, i.e. full fuel tank, vehicle with Tire Fit and tools, but without driver and without additional weights.
- The toe-difference angle value is also influenced by the vehicle height. For this reason the measured result must be evaluated accordingly. No action is necessary in the case of small deviations from the toe-difference angle required value, as long as the value to the right and the left is almost the same.

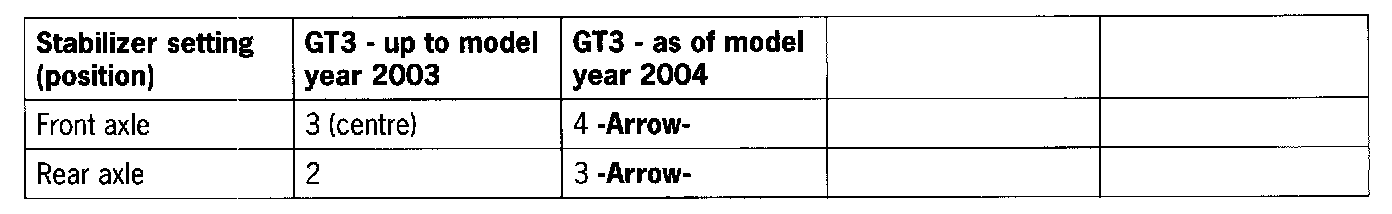

Stabilizer Setting

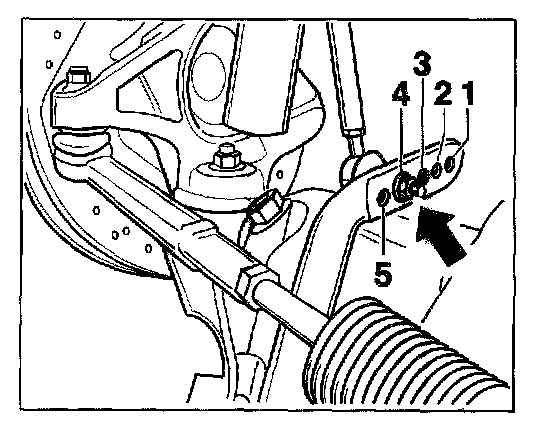

Front stabilizer positions (see table)

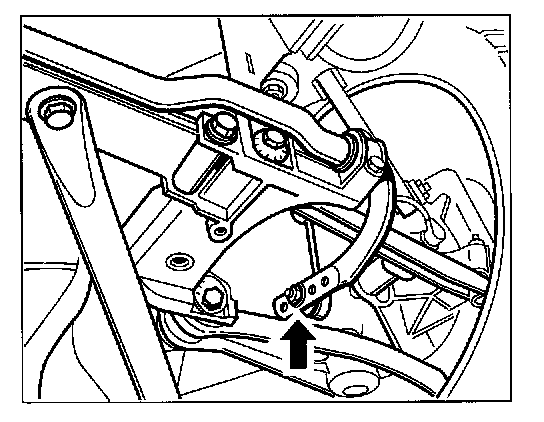

Rear stabilizer positions (see table)
