Removing and Installing Electric Motor For the Backrest Adjustment

Removing And Installing Electric Motor For The Backrest Adjustment

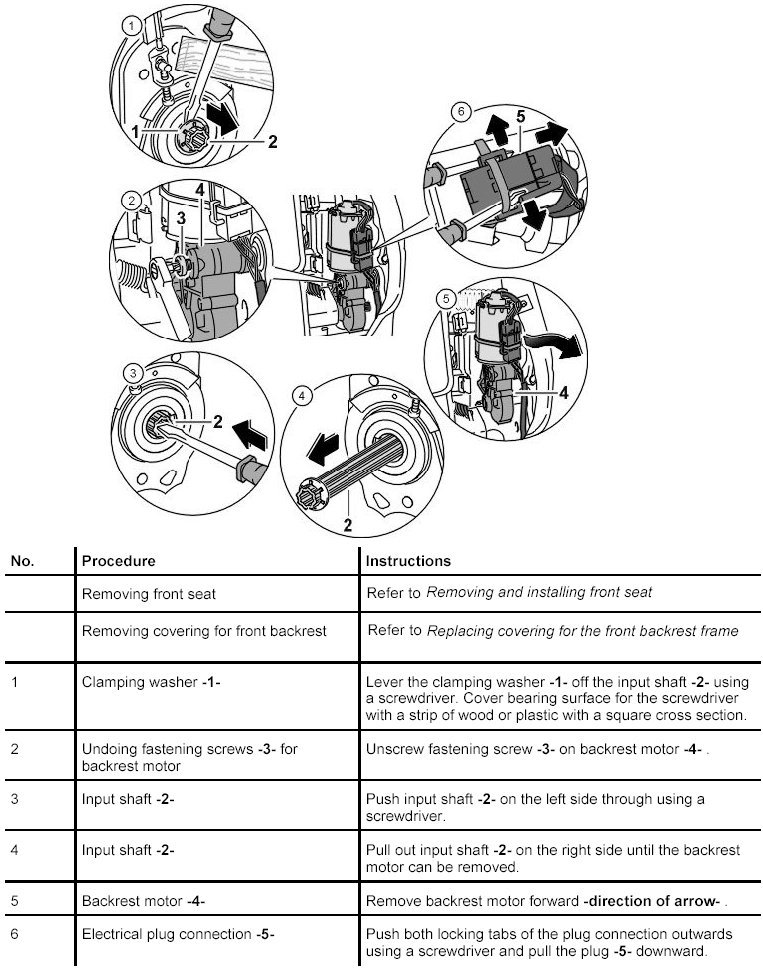

Removing and installing electric motor for the backrest adjustment

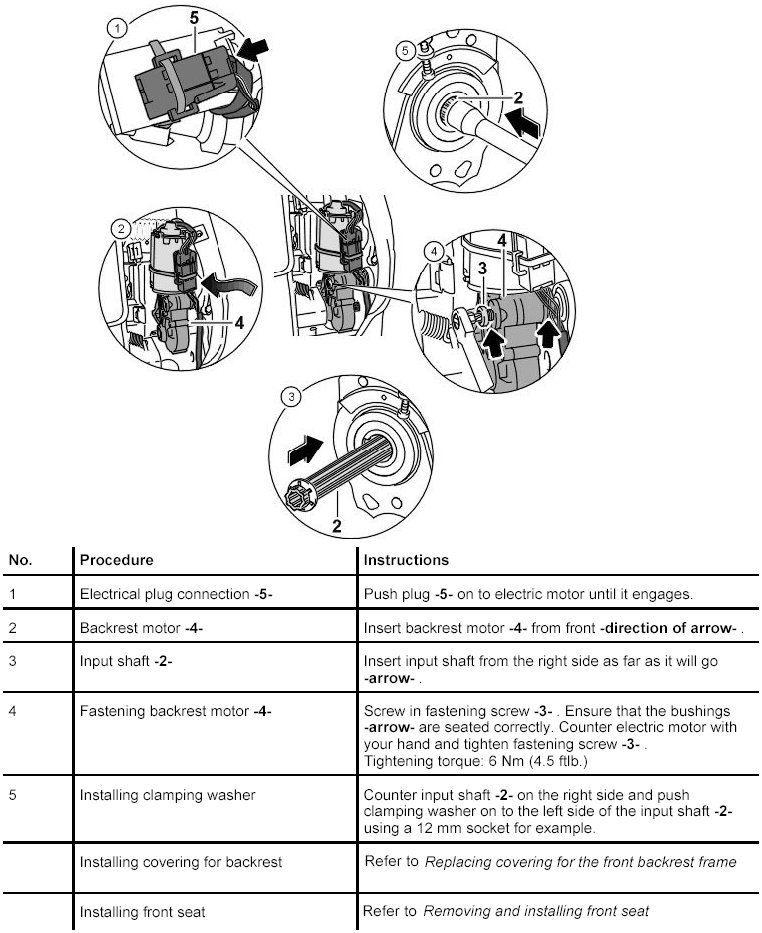

Installing electric motor for backrest adjustment

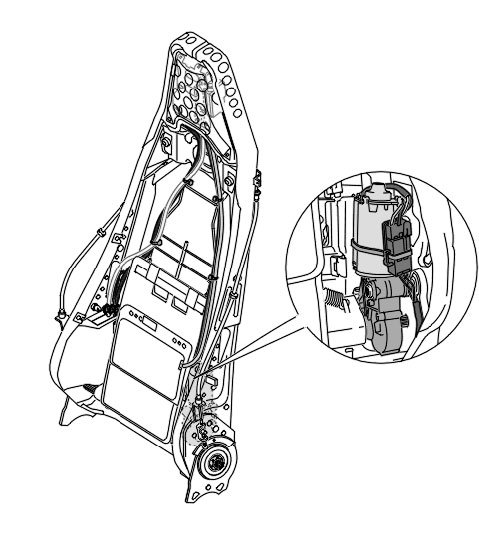

Routing of wiring harness for the backrest adjustment







1. -A- Plug on the control module for the memory seat adjustment.
2. -B- Plug on the backrest adjustment motor.
3. -X- Plug connection - without control module for the memory seat adjustment.

Tools

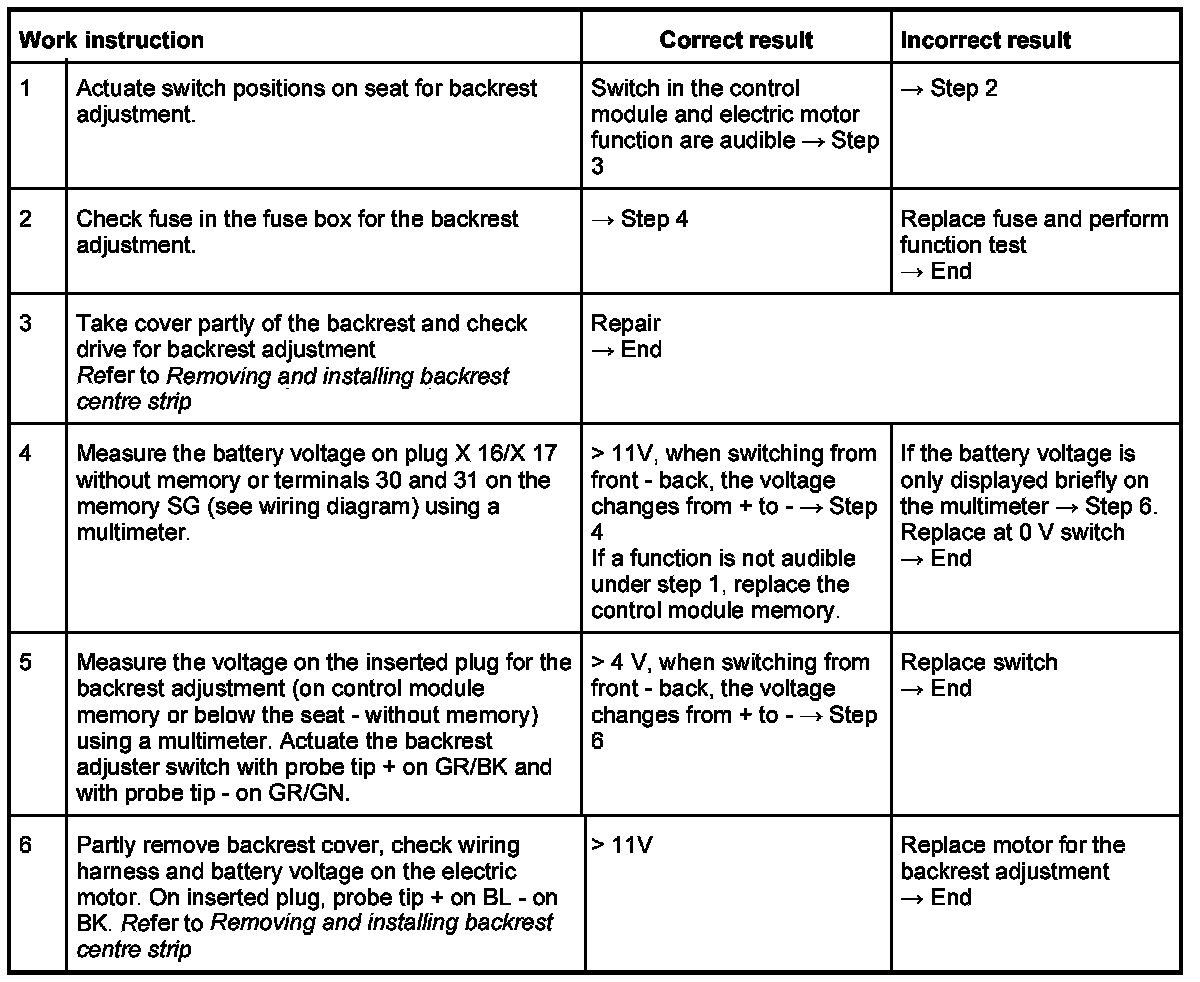

Test plan for the backrest adjustment device

In the case of the complaint "backrest adjustment does not function", proceed according to test plan. As the seat functions vary, the test plan principally complies with the seat version with seat memory adjustment. Work aids: Use wiring diagram and multimeter
