Sealing Ring For Halfshaft Flange

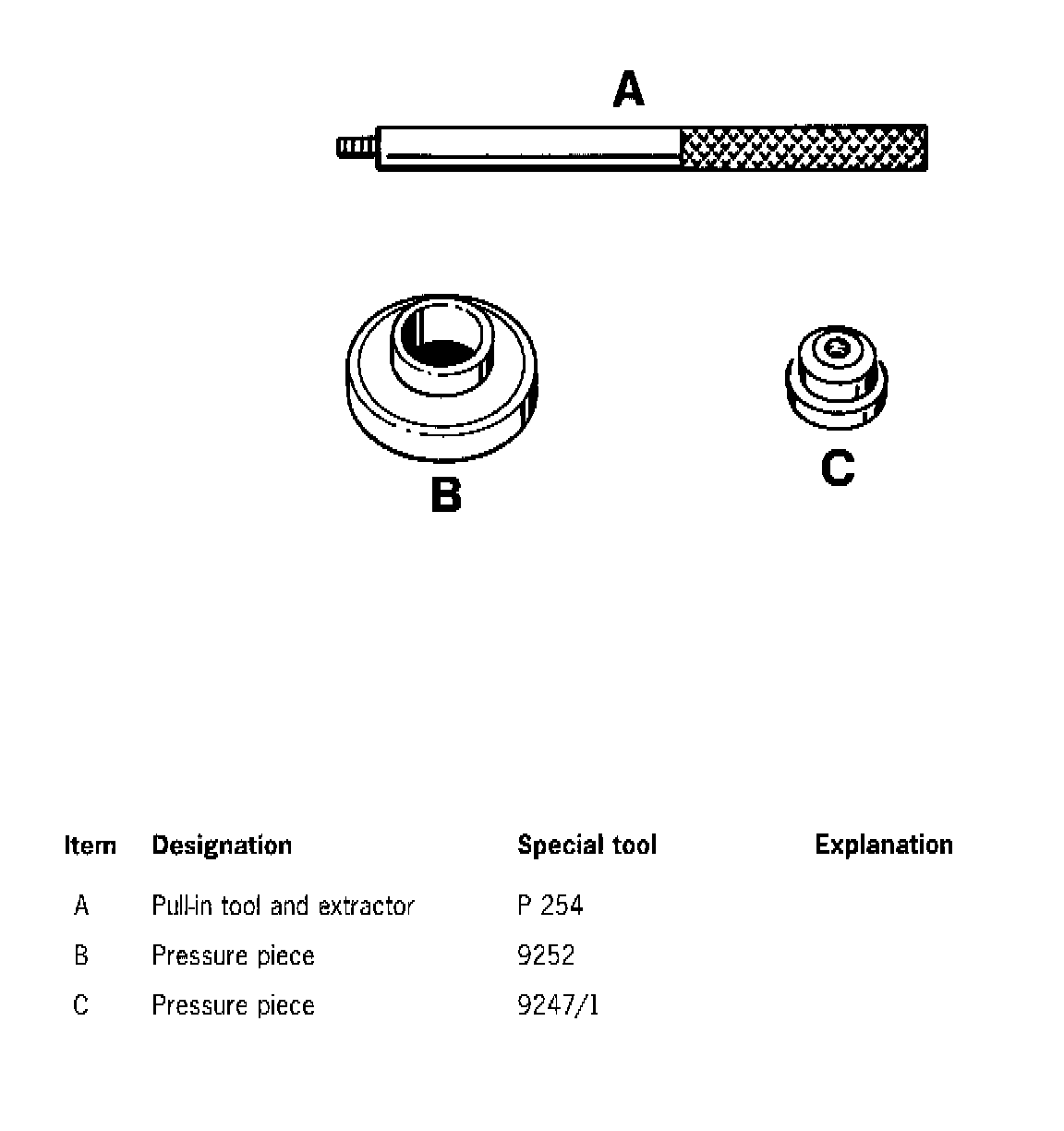

Tools





Removing and installing sealing ring for halfshaft flange - Boxster S

Note The sealing rings can also be replaced with the transmission installed.

Removal





1. Remove right halfshaft flange. To do this, place a chisel or spacer "A" under the halfshaft flange and pull out the halfshaft flange by turning the screw "B".

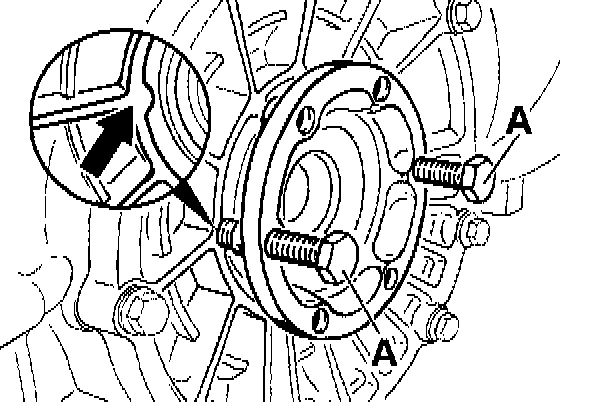

Note Pull out left halfshaft flange by screwing in the hexagon-head bolts "A" on alternate sides. The bolts must be supported on the rib reinforcements of the cover.

2. Lever out sealing ring using a suitable tool.

Installation
1. Fill the space between the dust and sealing lips with grease (e.g. Liqui - Moly) and drive in the sealing ring up to the mounting face using special tool 9252.





2. Always replace the snap ring for the halfshaft flange. To do this, clamp the flange in the vice with protective jaws and press out the snap ring with the new snap ring "A".

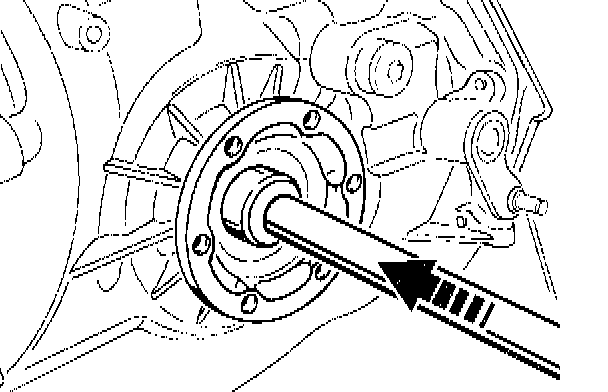

3. Grease the snap ring well and drive in the halfshaft flange using the special tools P254 and 9247/1.
