Fault Code 4205

Fault Code 4205

Speed Sensor Lead, Front Left

Diagnostic conditions
- Ignition on

Possible cause of fault
- Short circuit to B+/ground or open circuit between control unit and speed sensor
- Speed sensor faulty
- ABS control unit faulty

Affected pins
Pin 28 and pin 12

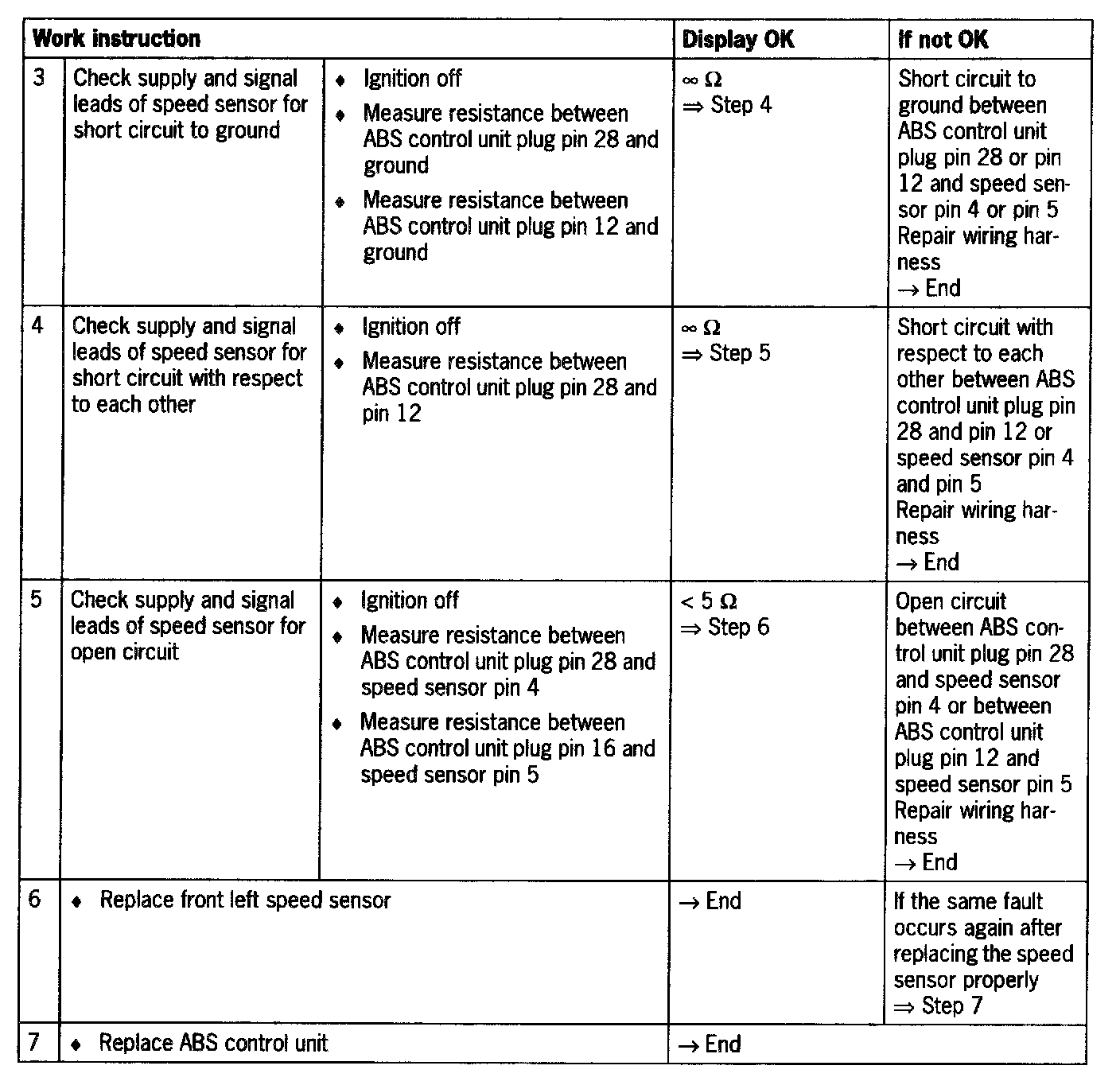

Diagnosis/troubleshooting
