8006 External Harman Amplifier

8006 External Harman Amplifier

Malfunction in right subwoofer channel

Diagnostic conditions
- Ignition ON
- PCM2/CDR23 ON

NOTE: Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for one or more minutes.

Possible cause of fault
- Short circuit to B+/ground in the wiring harness
- Short circuit - loudspeaker faulty
- Short circuit - amplifier faulty

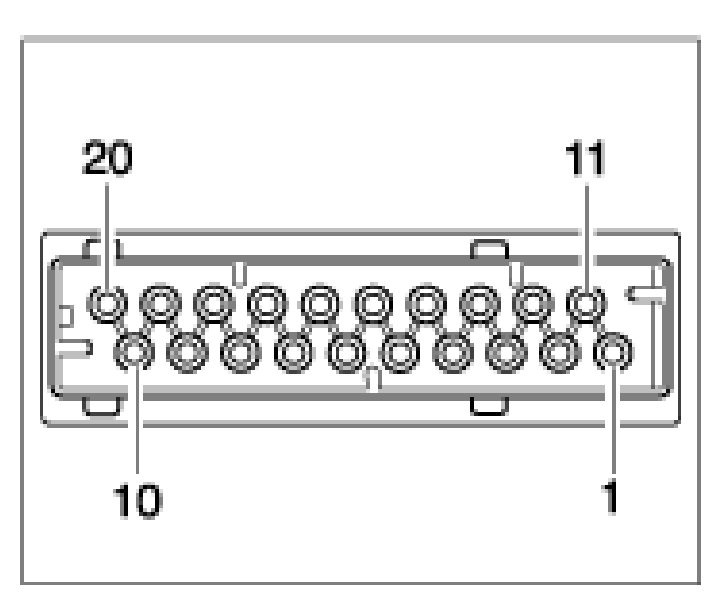

Affected pin







External Harman amplifier, plug A, pins 8 and 17

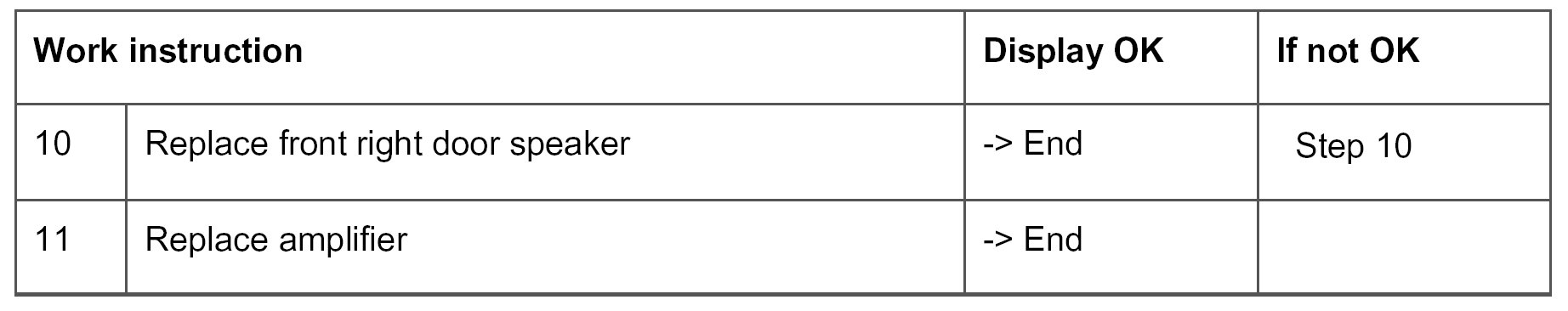

Diagnosis/troubleshooting

Diagnosis/troubleshooting (Part 1):

Diagnosis/troubleshooting (Part 2):

Diagnosis/troubleshooting (Part 3):
