DME 7.8

P1228

153 Fuel Injector, Cylinder 4 - Below Limit

Diagnosis conditions
- Engine running
- Battery positive voltage greater than 7 V

Possible fault cause
- Short circuit to ground in wiring
- DME control module

Affected terminals
Terminal III/27

NOTE: Short to ground causes the fuel injector to be permanently open.

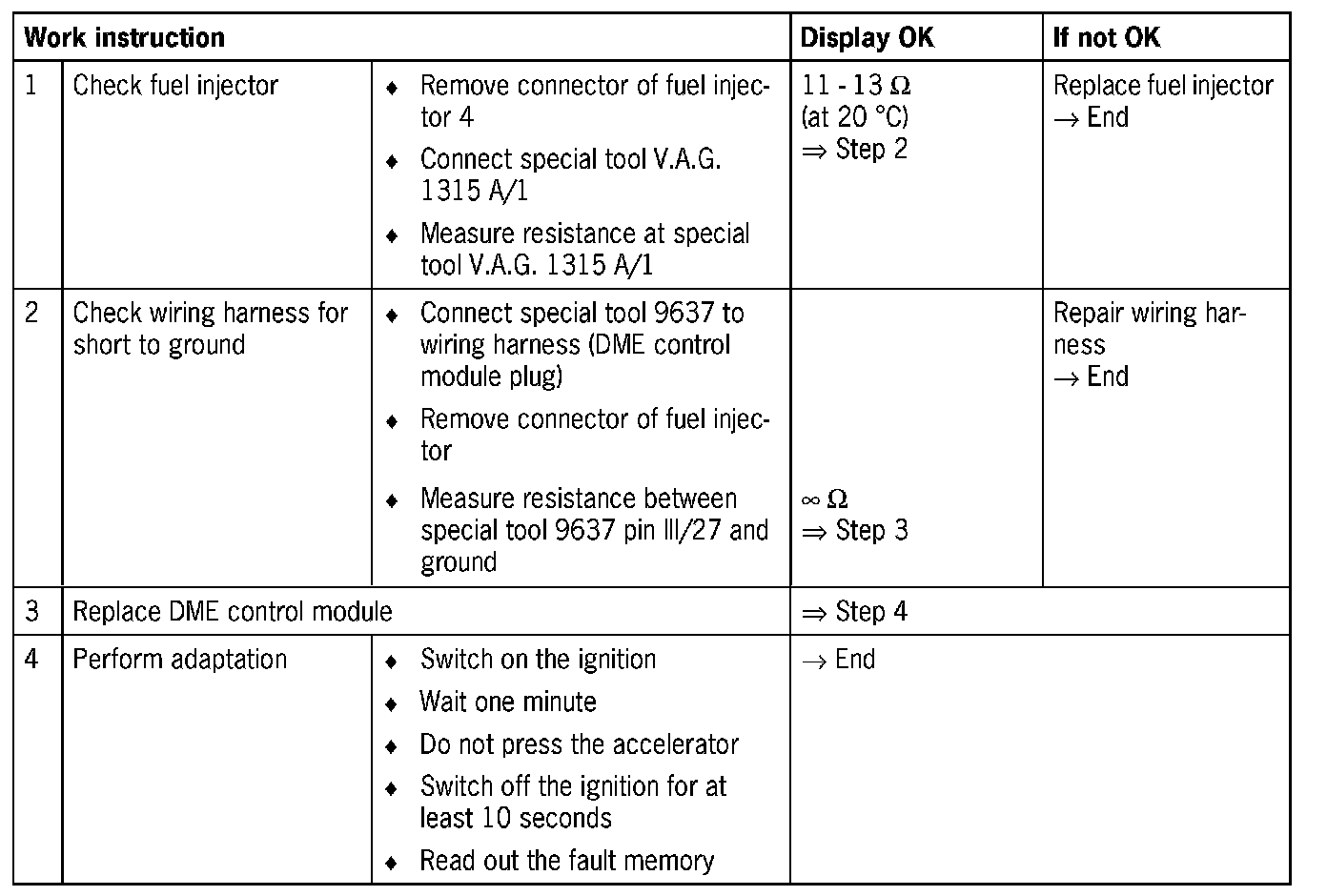

Diagnosis/troubleshooting
