DME 7.8

P1265

301 Airbag Signal - Signal Implausible

Diagnosis conditions
- Ignition on

Possible fault cause
- Airbag control module
- Open circuit
- Short circuit to ground

Affected terminals
Terminal 34 and IV/16

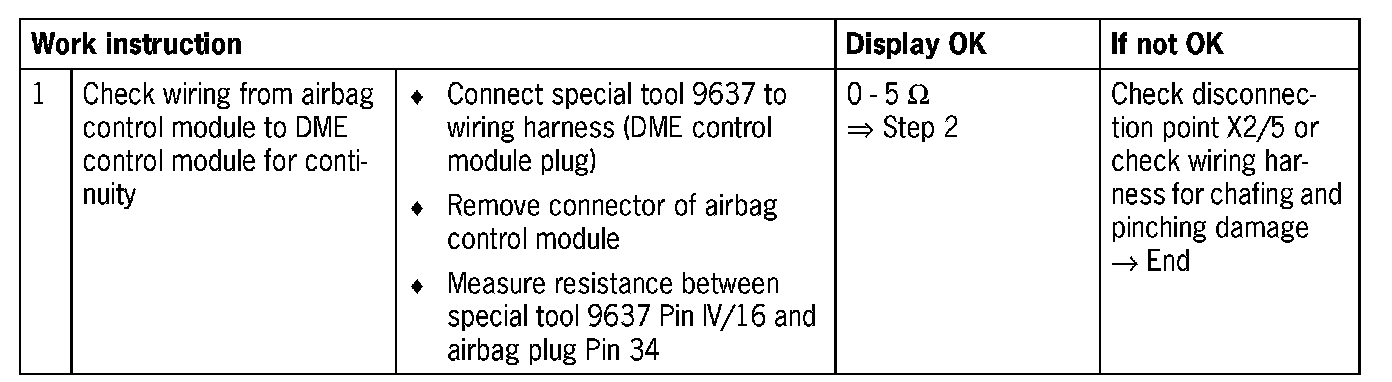

Diagnosis/troubleshooting
