Fault Code 9143

Fault Code 9143

Failure Of Check Engine Warning Light

Diagnostic conditions
- Ignition on

Possible cause of fault
- A drop in voltage in the vehicle electrical system (jump lead starting) can lead to storing fault code 9143.
- Instrument cluster faulty


Diagnosis/Troubleshooting

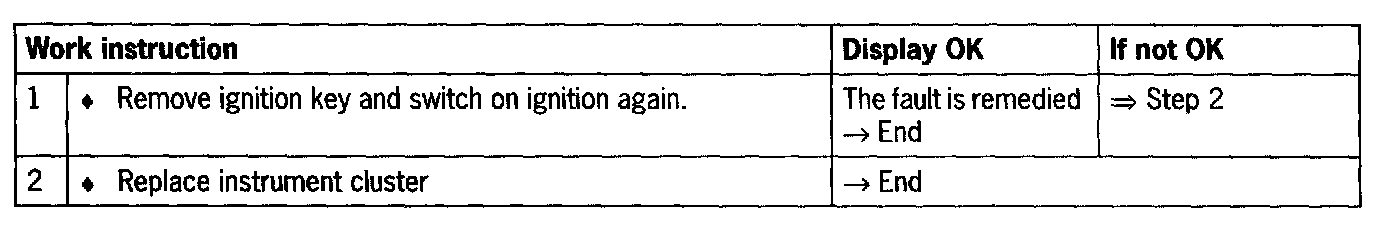

Work Instruction 1 - 2:
