8013 External Bose Amplifier

8013 External BOSE amplifier

Fault, Rear left and right loudspeakers

Diagnostic conditions
- Ignition on
- PCM2/CR23 ON.

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for '≥ 1 Min.'.
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.
- This fault code is set by means of a self-test with the Porsche System Tester II No, 9588.

Possible cause of fault
- Wiring harness/rear left and right loudspeakers faulty
- External BOSE amplifier output stage faulty

Affected pin
Amplifier control module, plug A, pins 23 and 28

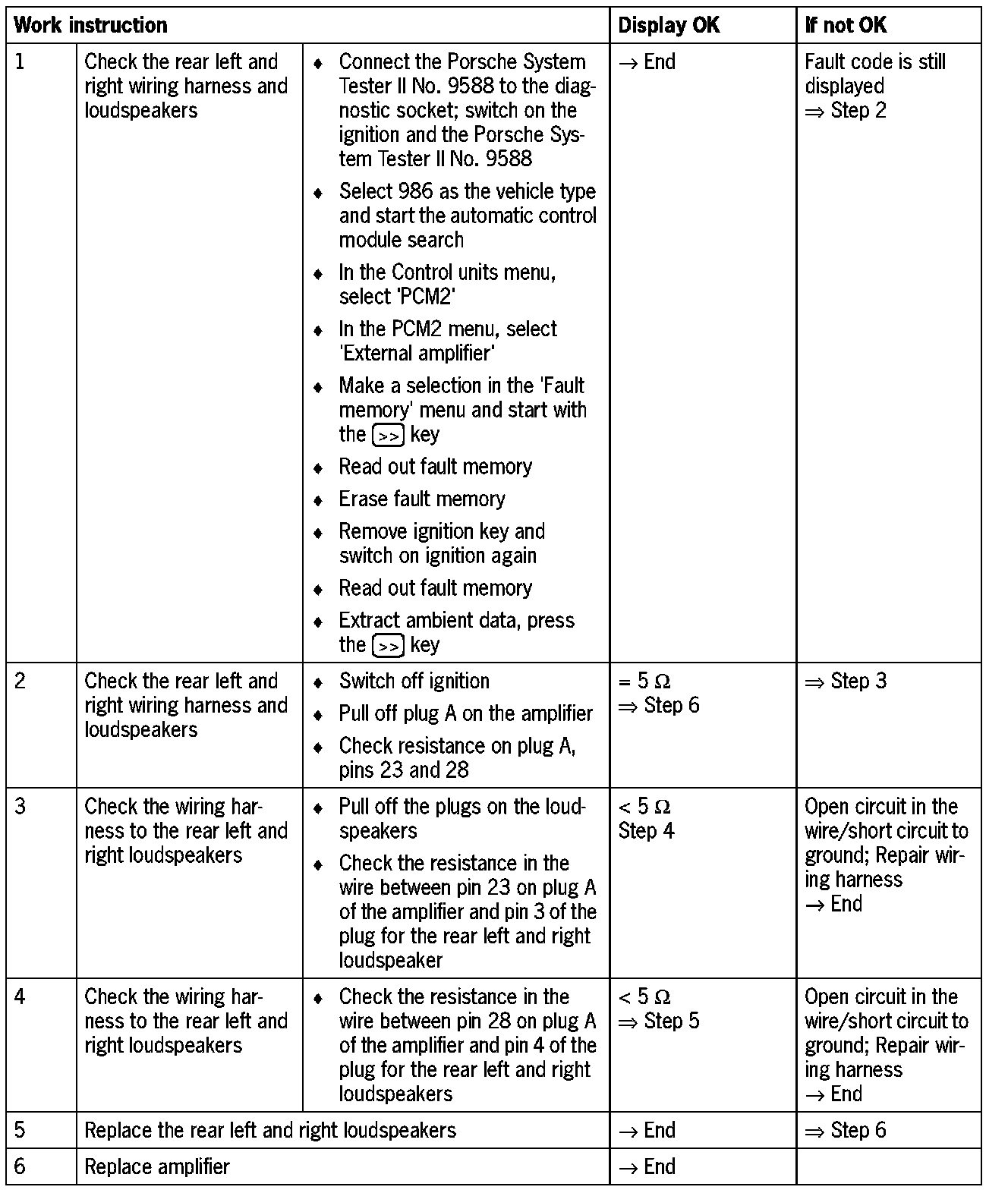

Diagnosis/troubleshooting
