Oxygen Sensing Error By Means of Short Test, Bank 2 - Below Limit



P1134

419 Oxygen Sensing Error by means of Short Test, Bank 2 - Below Limit

Diagnosis conditions
- Mixture adaptation performed with the Porsche System Tester 2

Possible fault cause
- Incorrect signal from MAF sensor
- Fuel pressure too high
- Fuel injector leaking
- EVAP canister purge valve open

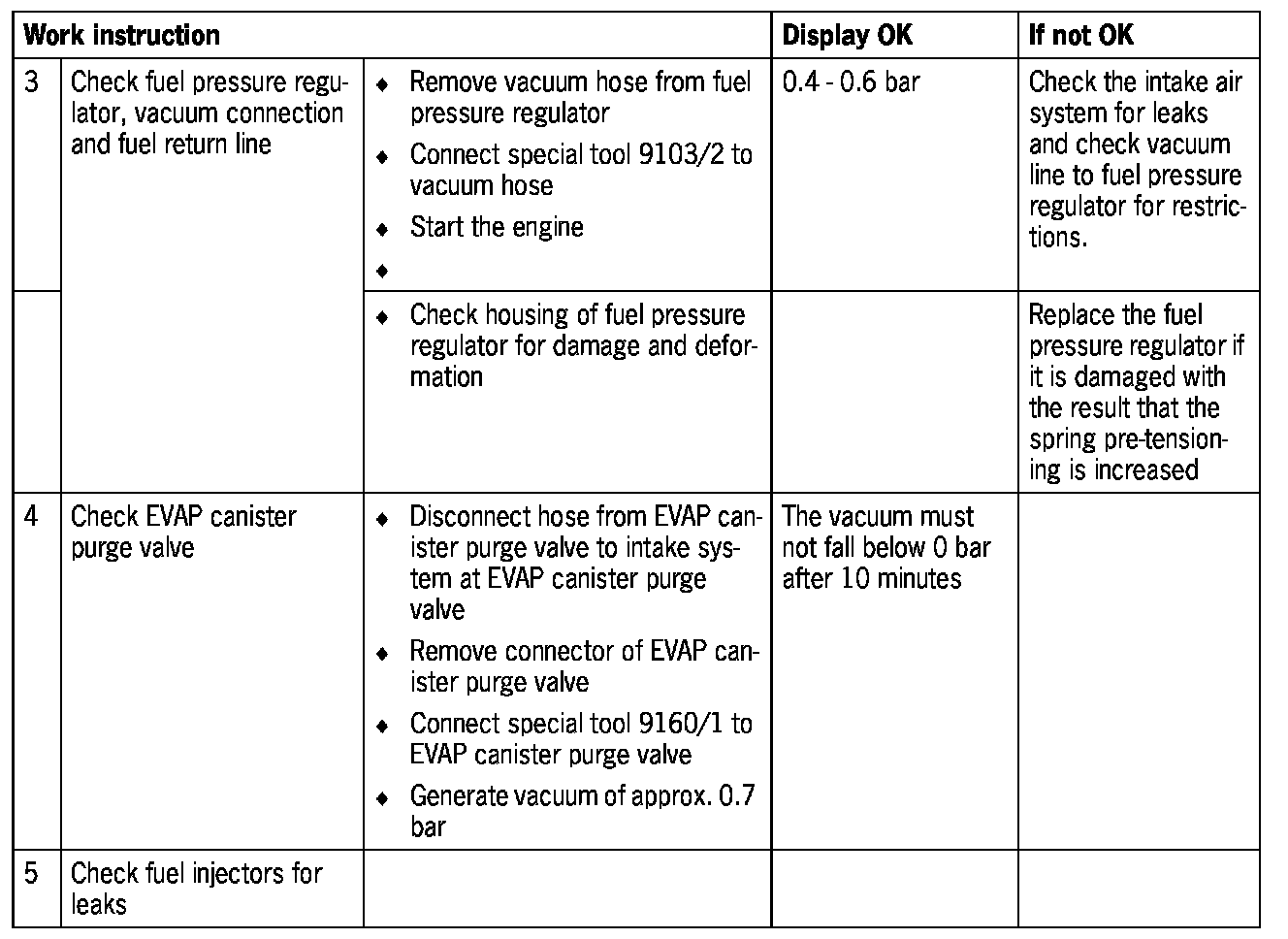

Diagnosis/troubleshooting

NOTE: If DTC P0445 (fuel tank vent valve - short to ground) is stored, correct this fault first. An open EVAP canister purge valve can lead to the lean threshold being reached.


Part 1:




Part 2:
