Removal and Replacement

Removing And Installing Sun Visors

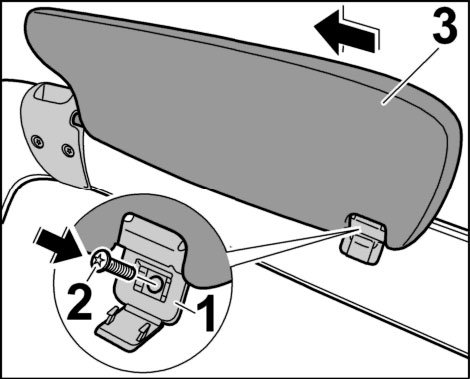

Removing sun visors

1. Detaching sun visor







1.1. Unclip cover -1- with a screwdriver and unscrew the fastening screw -2-.
1.2. Pull off the sun visor -3- from the bearing pedestal towards the centre of the car.

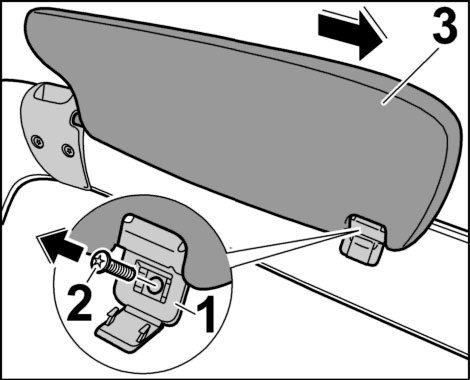

Installing sun visors

1. Fitting sun visor







1.1. Insert sun visor -3- into the bearing pedestal.
1.2. Position sun visor -3- and screw down using the fastening screw -2-.
1.3. Press in cover -1- until it engages.
