Adjusting Convertible Top Gear

Adjusting Convertible Top Gear

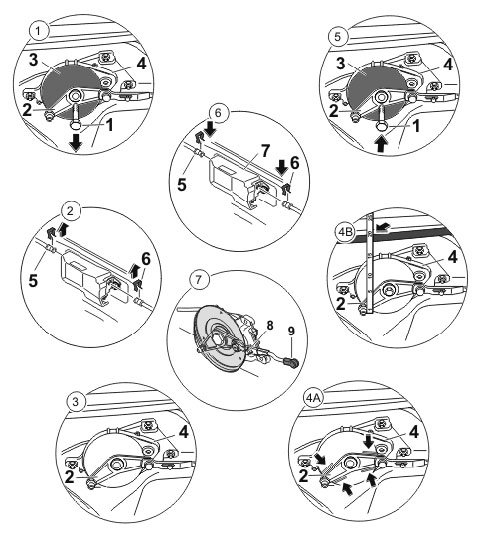

INFORMATION:
- The following boundary conditions must be observed for adjusting the convertible top gear.
- Convertible top in service position.
- Press left and right push bar springs out of the ball head of the drive lever.
- Press out push bar and ball head of the convertible top support. (Disengage cover for convertible top compartment).
- For illustration of components, Refer to Removing and installing convertible top

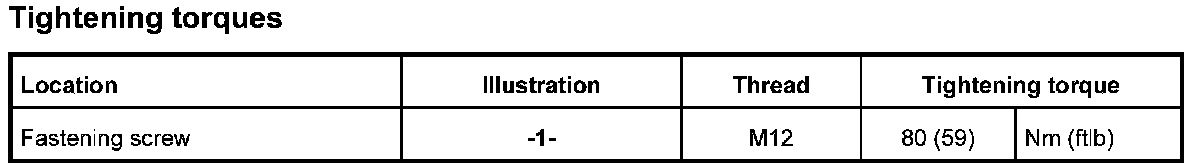

Tightening torques

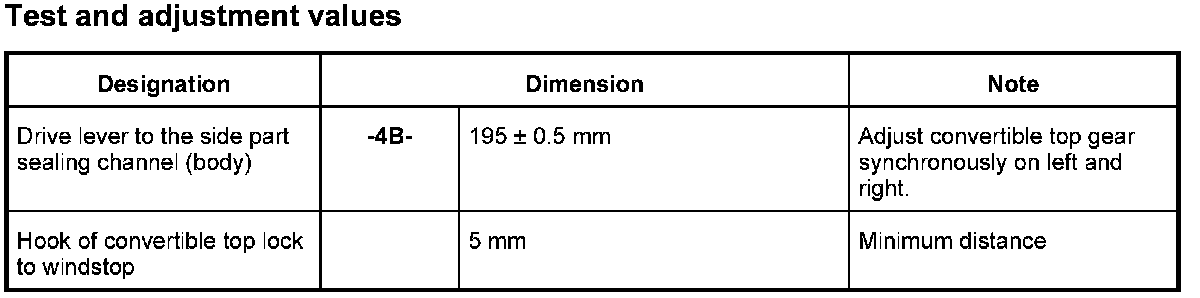

Test and adjustment values
