Connector Assignment



Connector Assignment

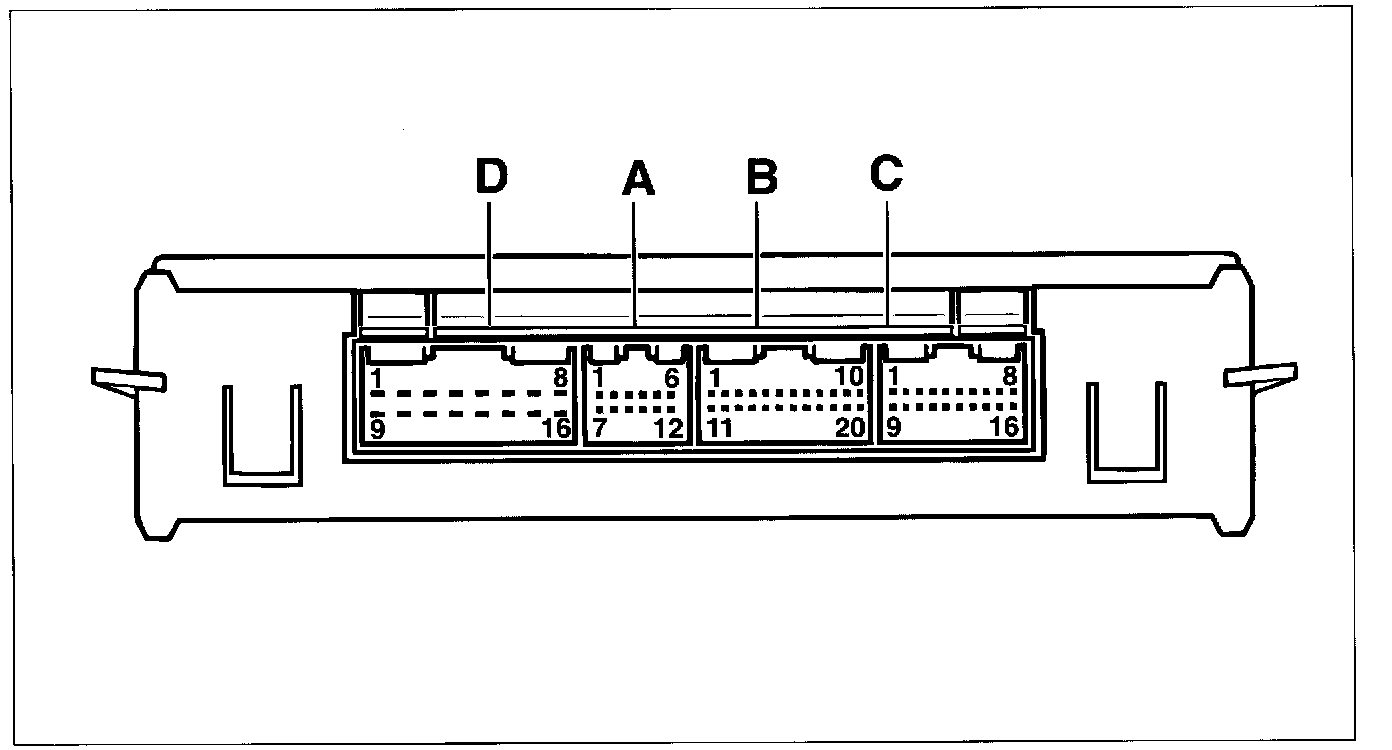

Connector Assignment For Air-Conditioning Control Unit







NOTE:
- As a result of networking (use of CAN comfort bus), the two plugs A and C are no longer required.
- The signals required for function and control are exchanged via the CAN bus lines (CAN comfort high and CAN comfort low).

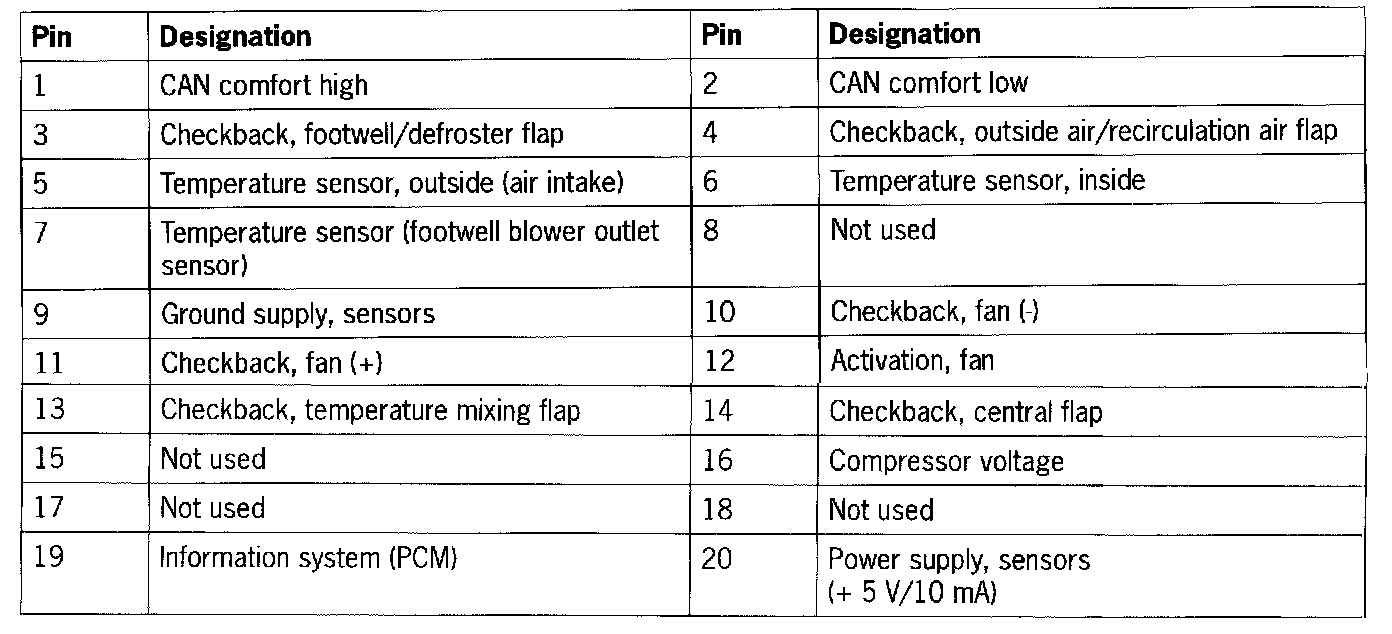

Connector B (red)


Pin 1 - 20:

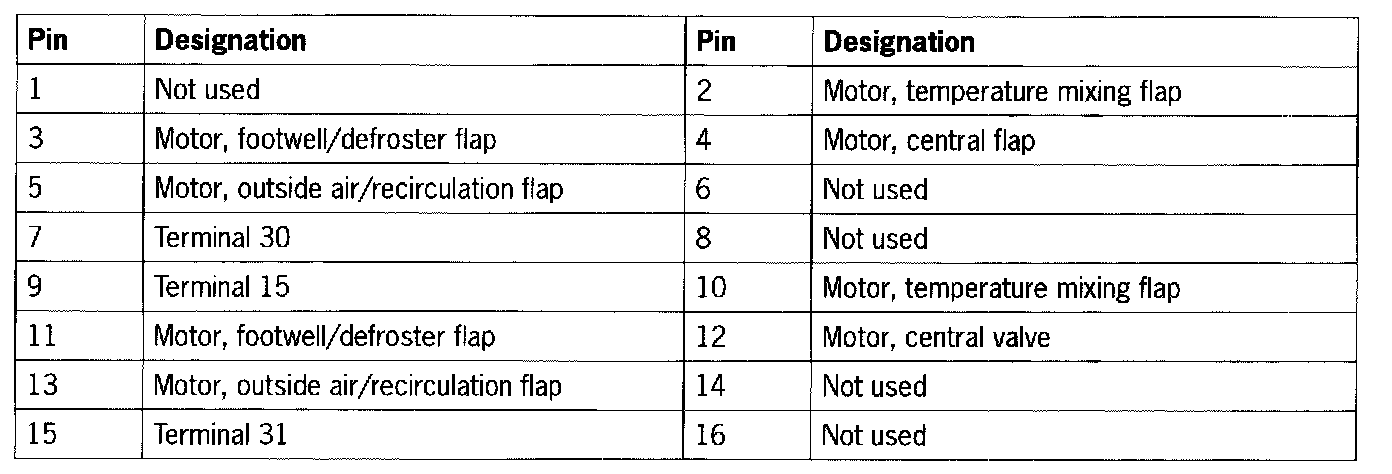

Connector D (black)


Pin 1 - 16:
