Reading Diagnostic Trouble Codes
Maintenance
Diagnosis system
Reading out fault memory
The method of reading out the fault memory is described in the operating instructions for the Porsche System Tester 2. The operating instructions are supplied with each Tester.

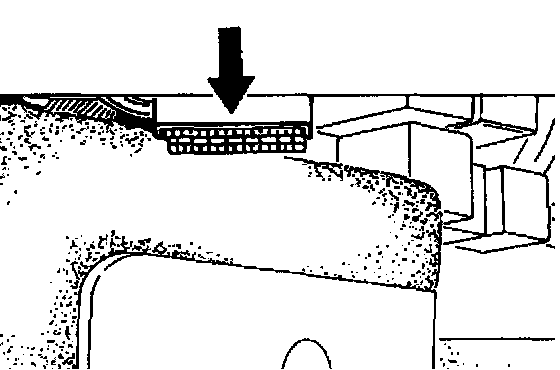

The Porsche System Tester 2 is connected to the vehicle via a 16-pole diagnosis socket. The diagnosis socket is located inside the vehicle near to the driver (left-hand drive vehicles) or the passenger (right-hand drive vehicles) below the instrument panel.
