Removing and Installing Interior Rearview Mirror

Removing And Installing Interior Rearview Mirror

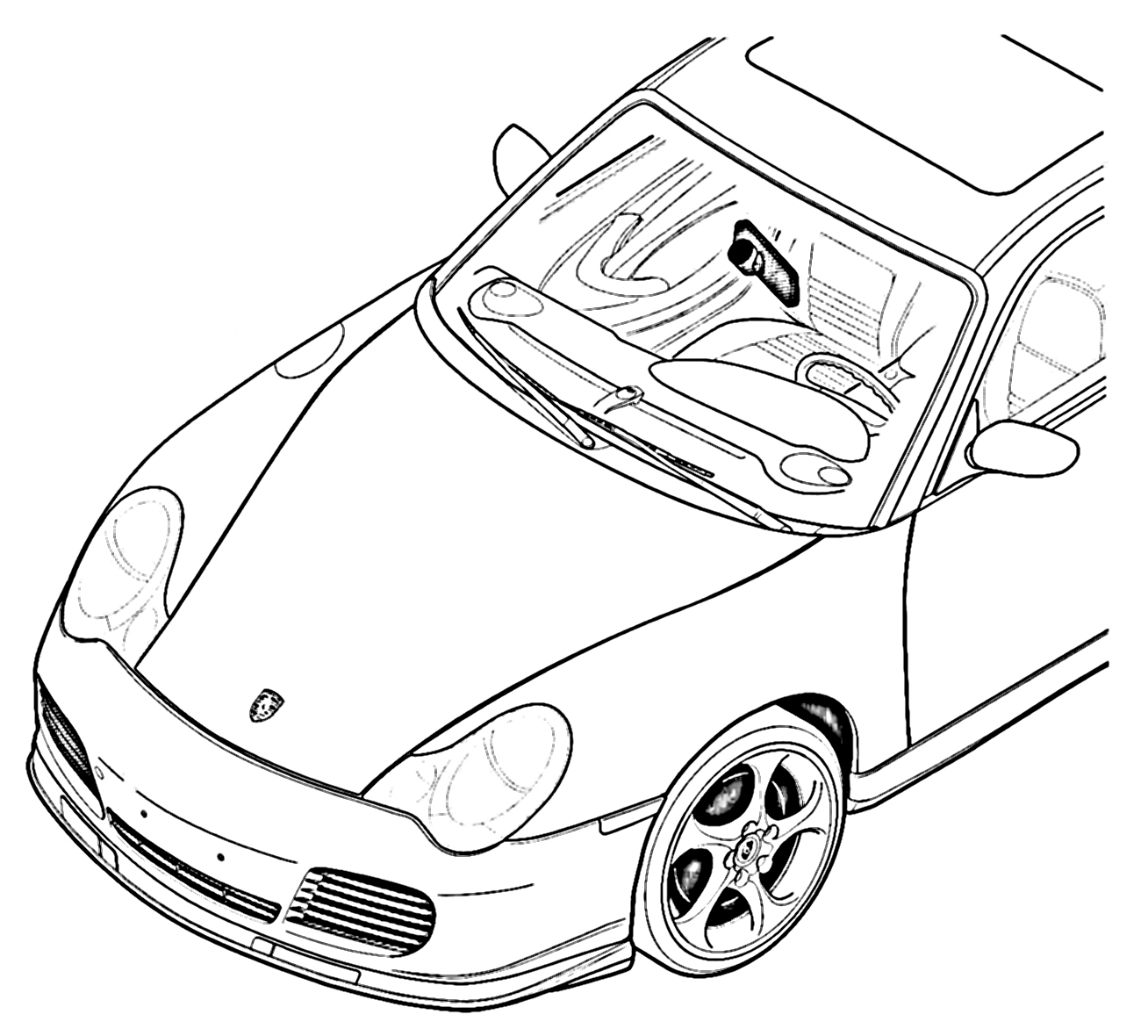

Illustrated on the 911 Turbo (996)

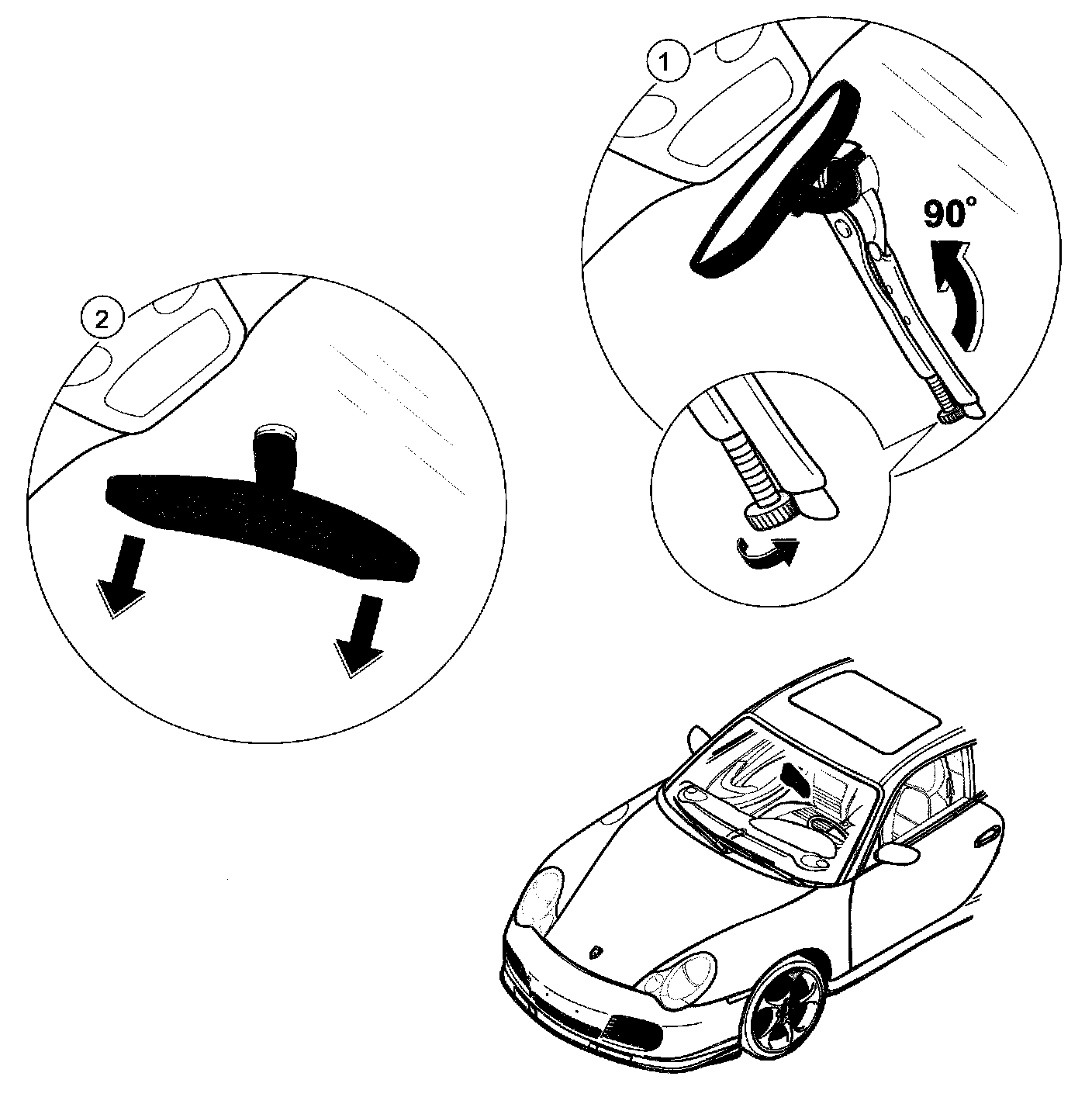

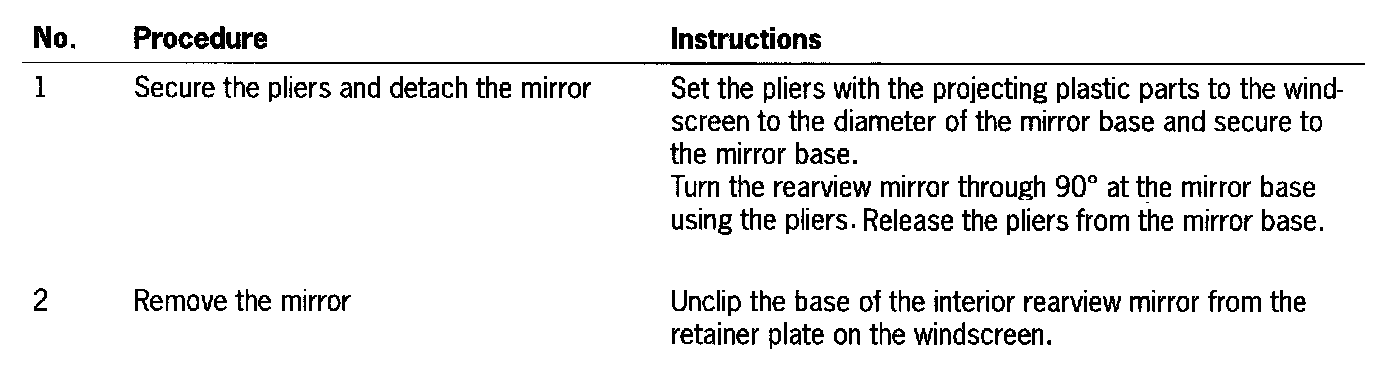

Removing Interior Rearview Mirror

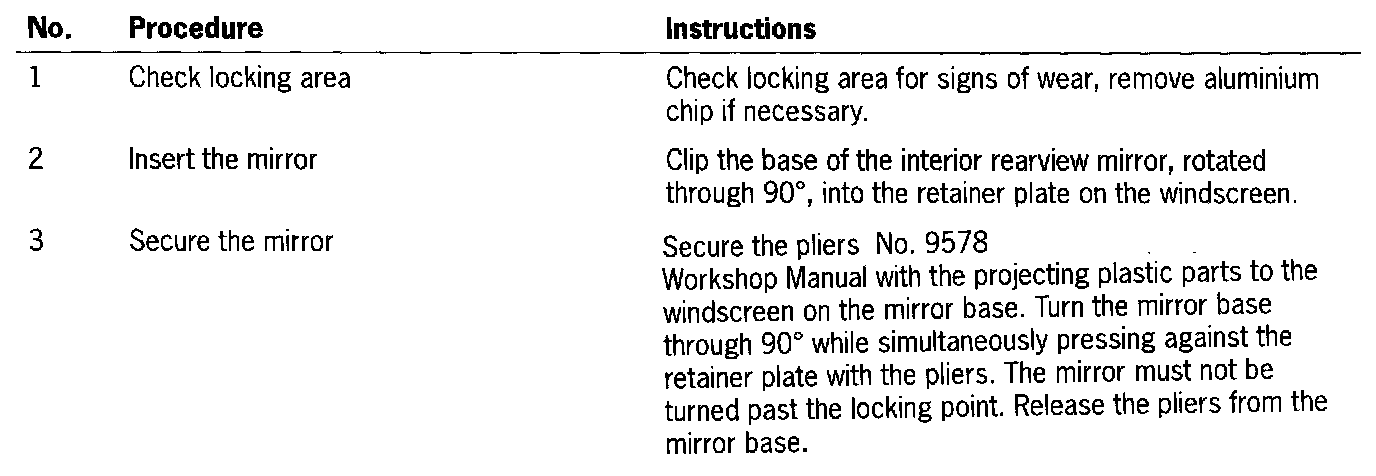

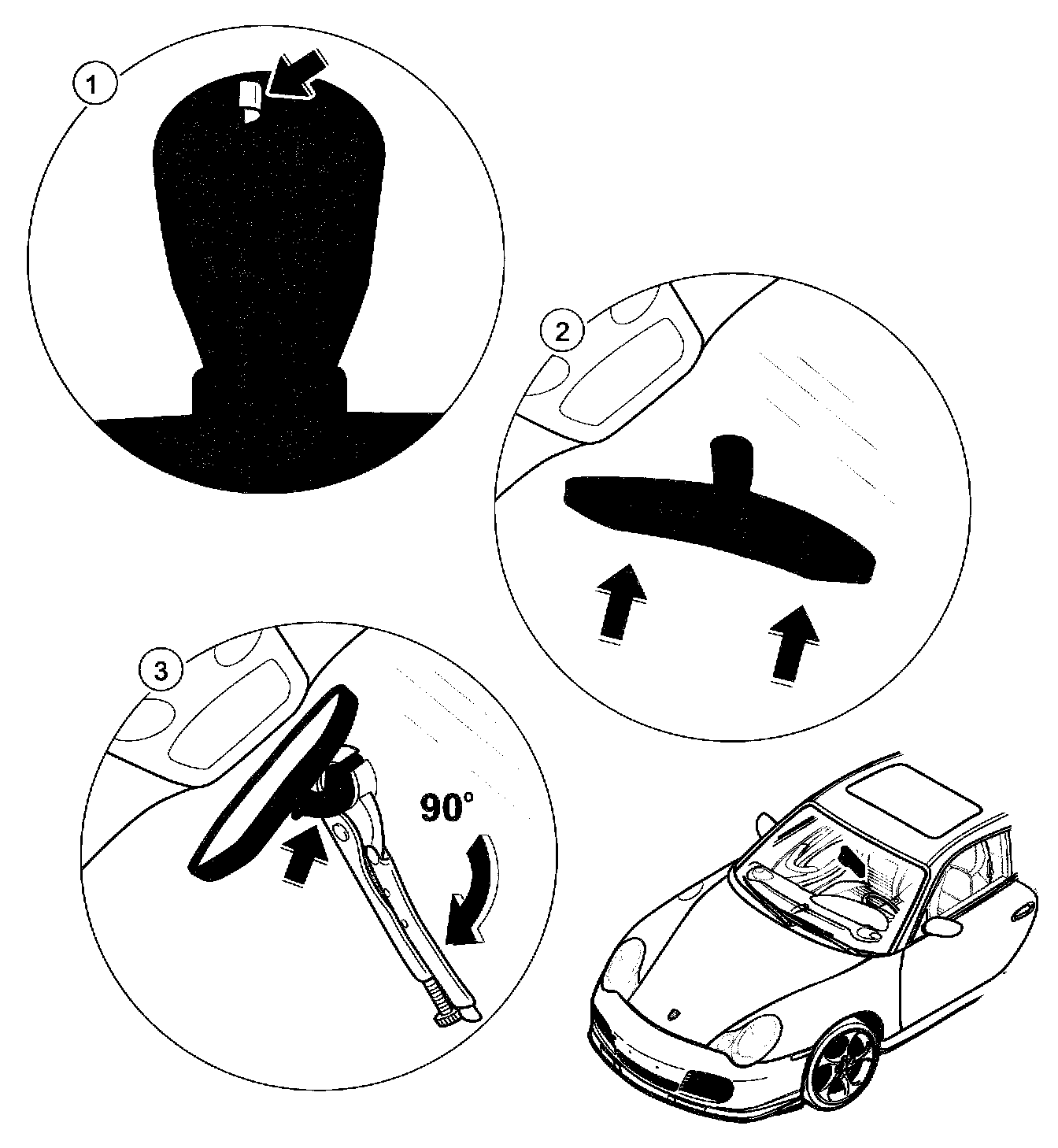

Installing Interior Rearview Mirror










NOTE:
- The small aluminium chip in the locking area must be removed after the interior rearview mirror has been removed from its base, as it otherwise cannot be ensured that the mirror will be seated securely when fitted.
- If the mirror is being fitted for the second or third time, inspect locking area of the mirror base for signs of wear and replace the mirror if necessary.
