Replacing Wheel Housing Bottom Part and Outer Side Member

Replacing wheel housing, bottom part and outer side member

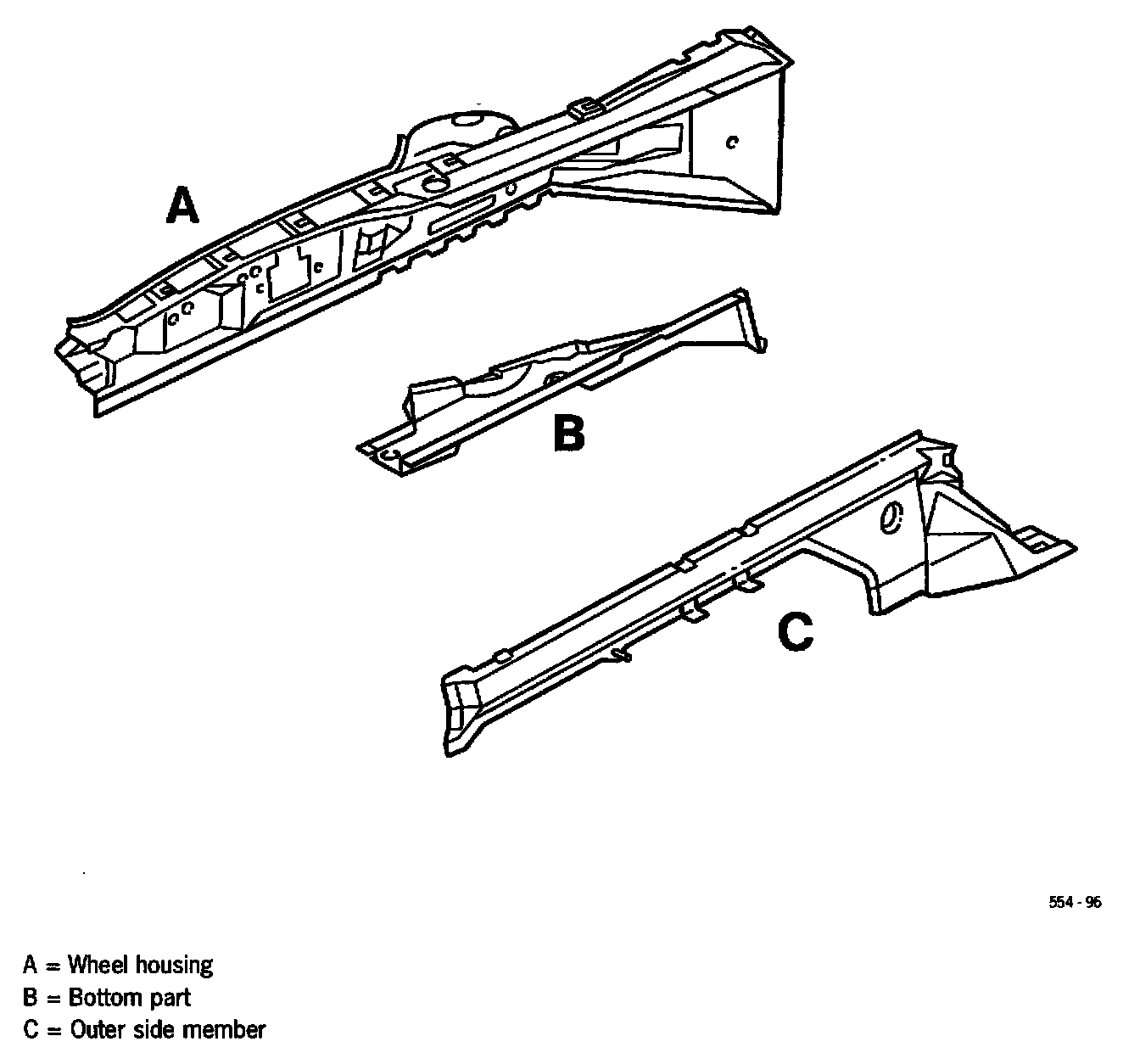

The following spare body parts are required for the repair "Replacing the wheel housing and outer side member":







Removing wheel housing, bottom part and outer side member from the body

Steps 1 - 6:

All straightening work on this area of the body must have been completed before the damaged parts are removed!

Procedures No. 1 - 6:

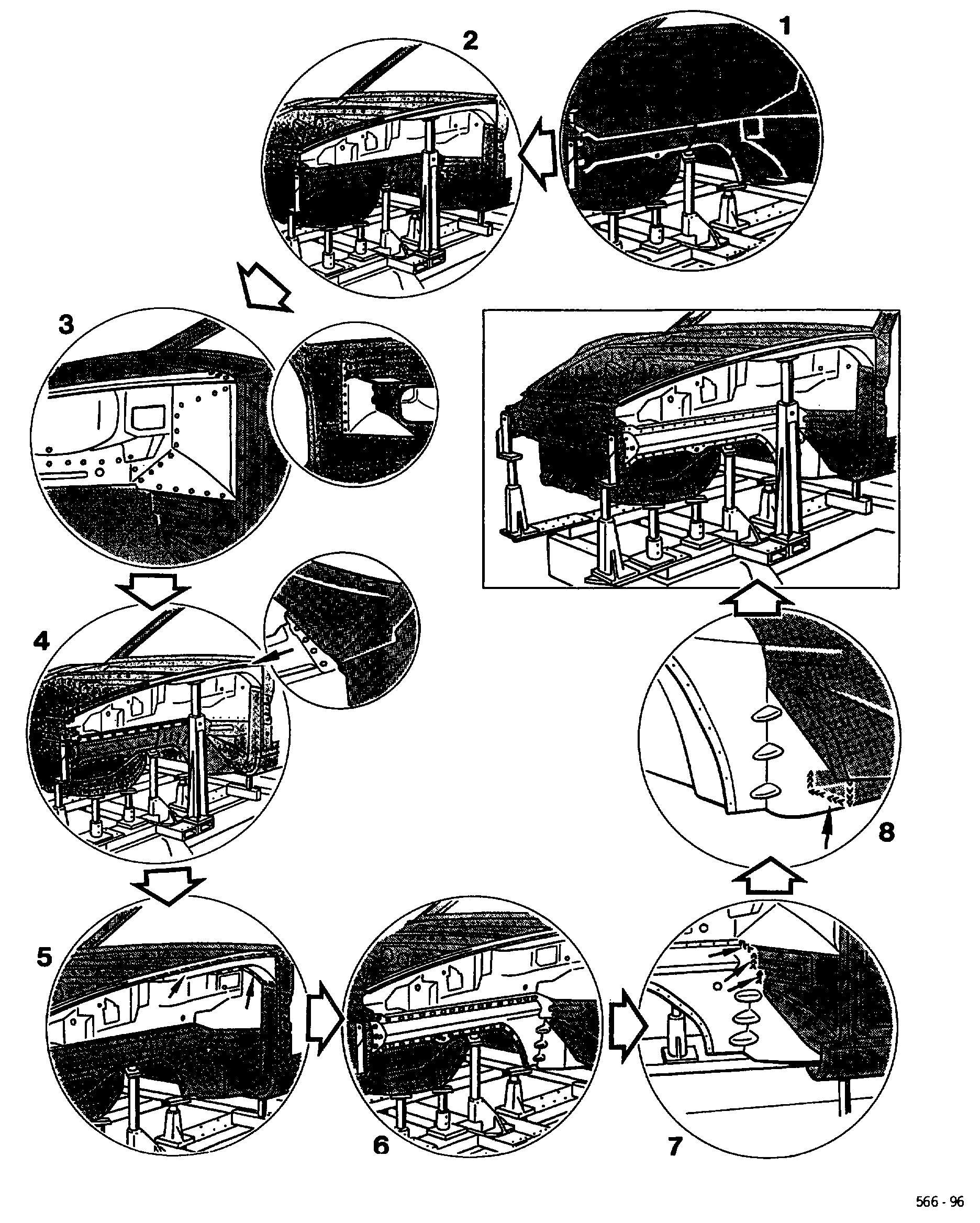

Fitting wheel housing, bottom part and outer side member in the body

Steps 1 - 8:

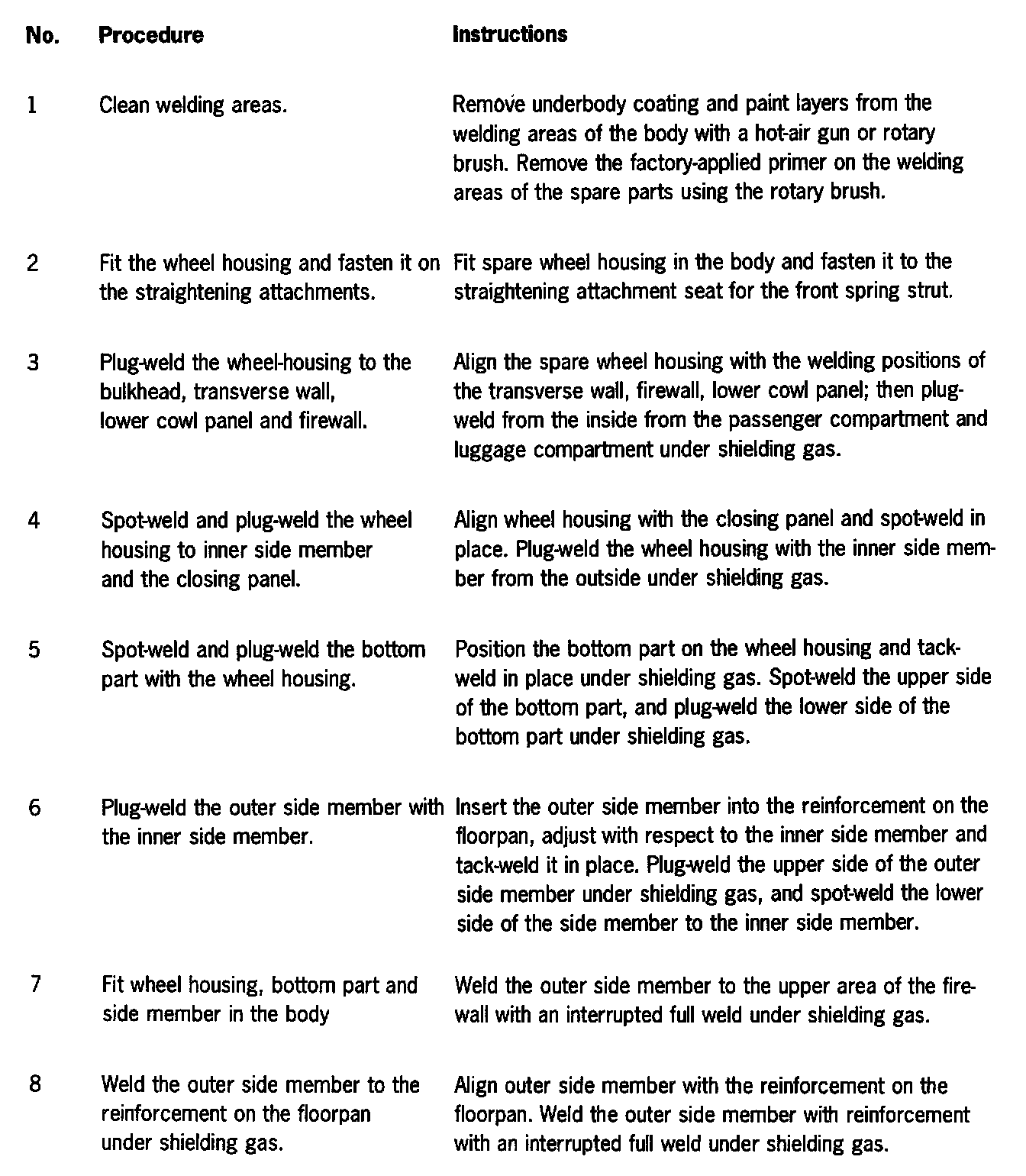

Procedures No. 1 - 8:
