Connector Diagrams and Ground Points

Connector diagrams and ground points

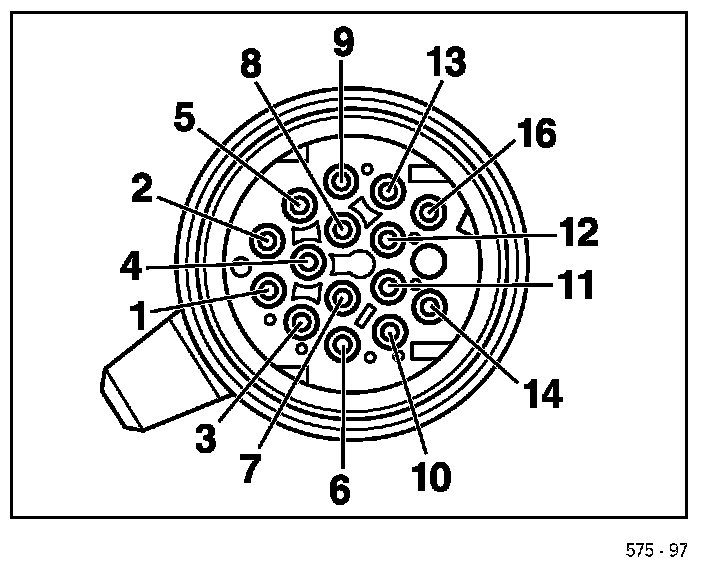

Transmission plug






Transmission socket

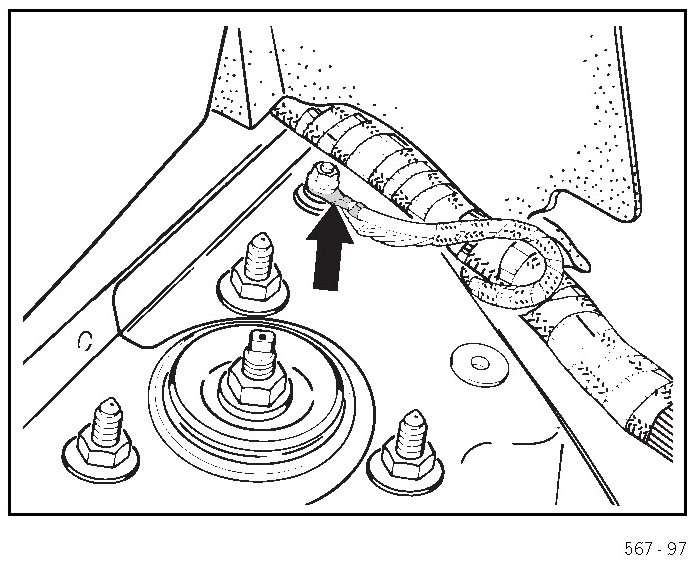

Ground point 4
Ground point 4 is located in front of the instrument cluster on the dashboard support frame.

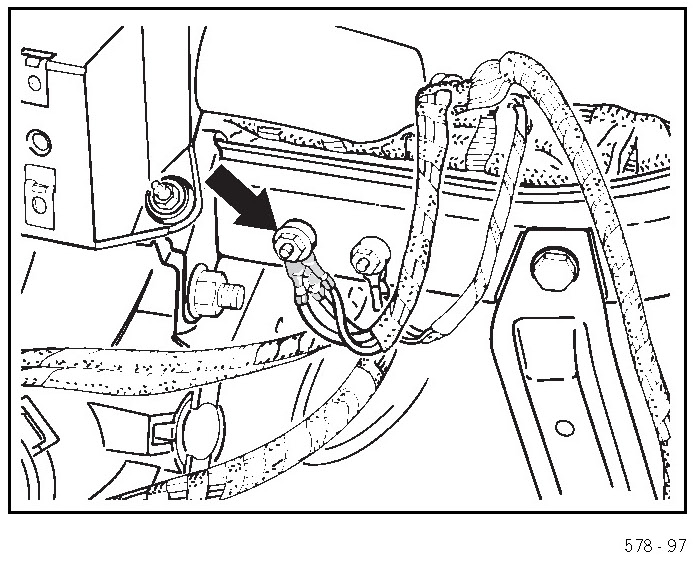

Ground point 9
Ground point 9 is located on the rear wall in the rear luggage compartment, between the DME control module and Tiptronic control module.






Plug connection X 2/6
Plug-in connector X 2/6 (21-pin, blue) is located beneath the convertible top on the right-hand side member (in the vicinity of the lower safety belt attachment).
