ABS Diagnosis

Tools

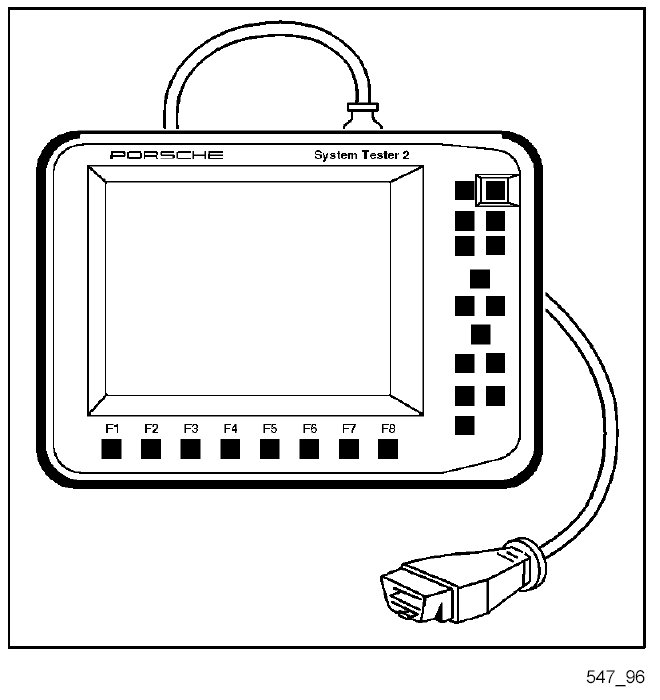

1. Porsche System Tester 2 with integrated digital multimeter.







2. When performing measurements on the control module connector with a multimeter, use measuring leads (e.g. commercially available leads from Messrs. Bosch or shop-made leads) in order to avoid damaging the contacts in the control module connector.

Normal pins:}
1 to 2 measuring leads with 2,5 mm flat connectors.

Mini pins:}
1 to 2 measuring leads with 1.6 mm flat connectors.
