Disassembling and Assembling Cylinder Head

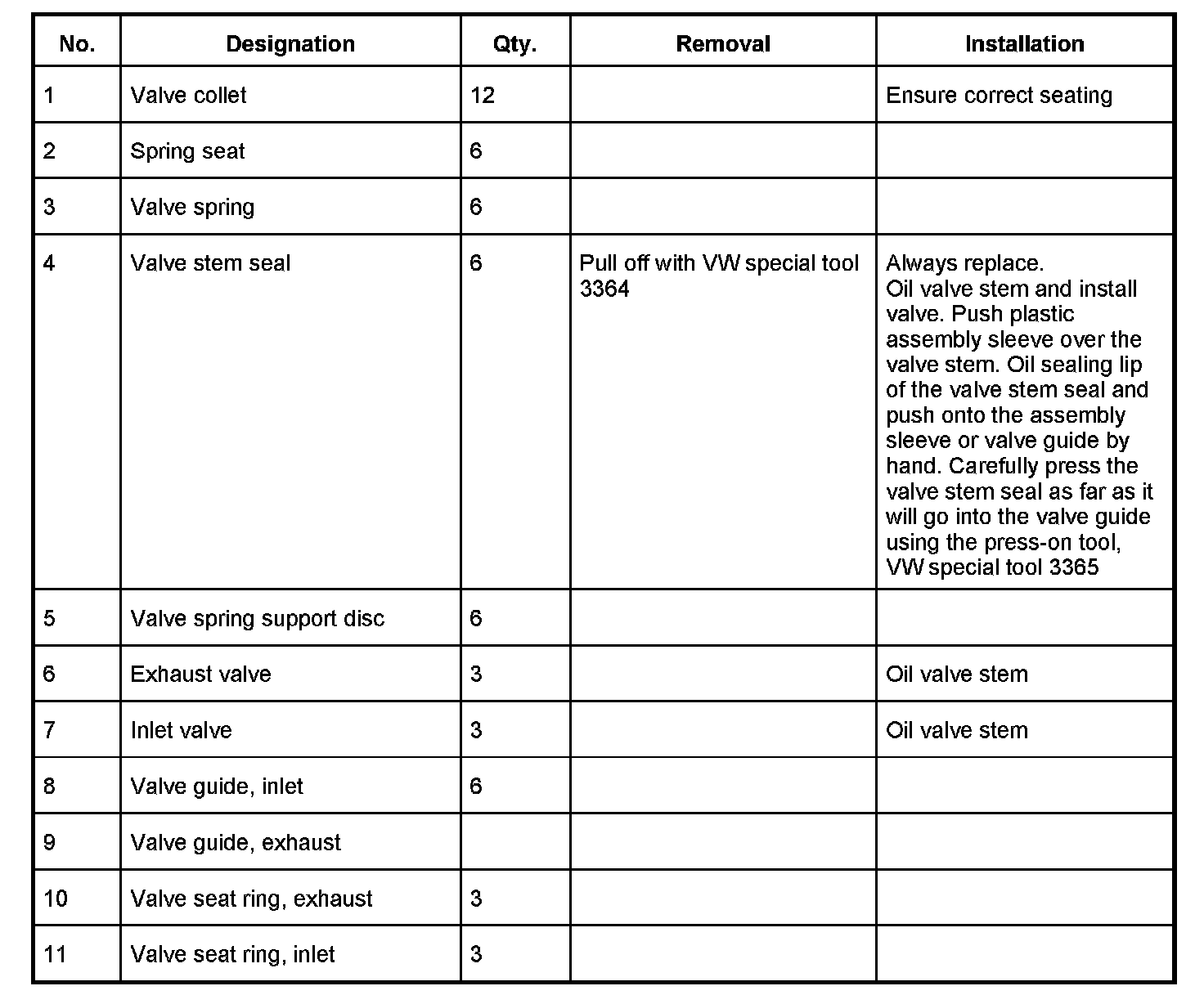

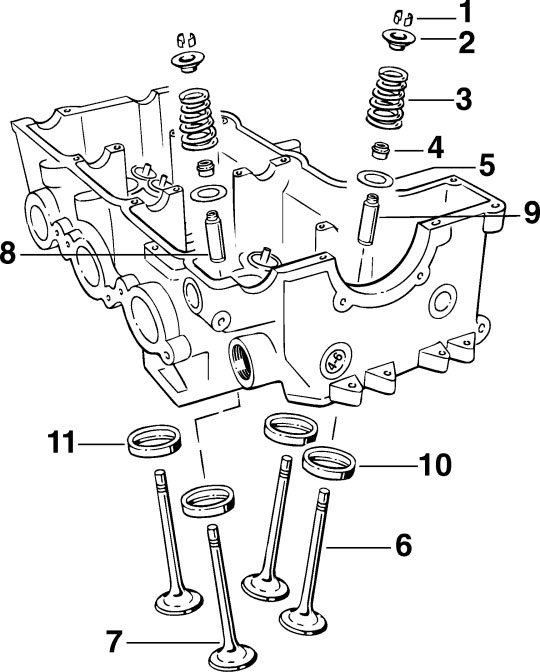

Disassembling and assembling cylinder head - Inner parts

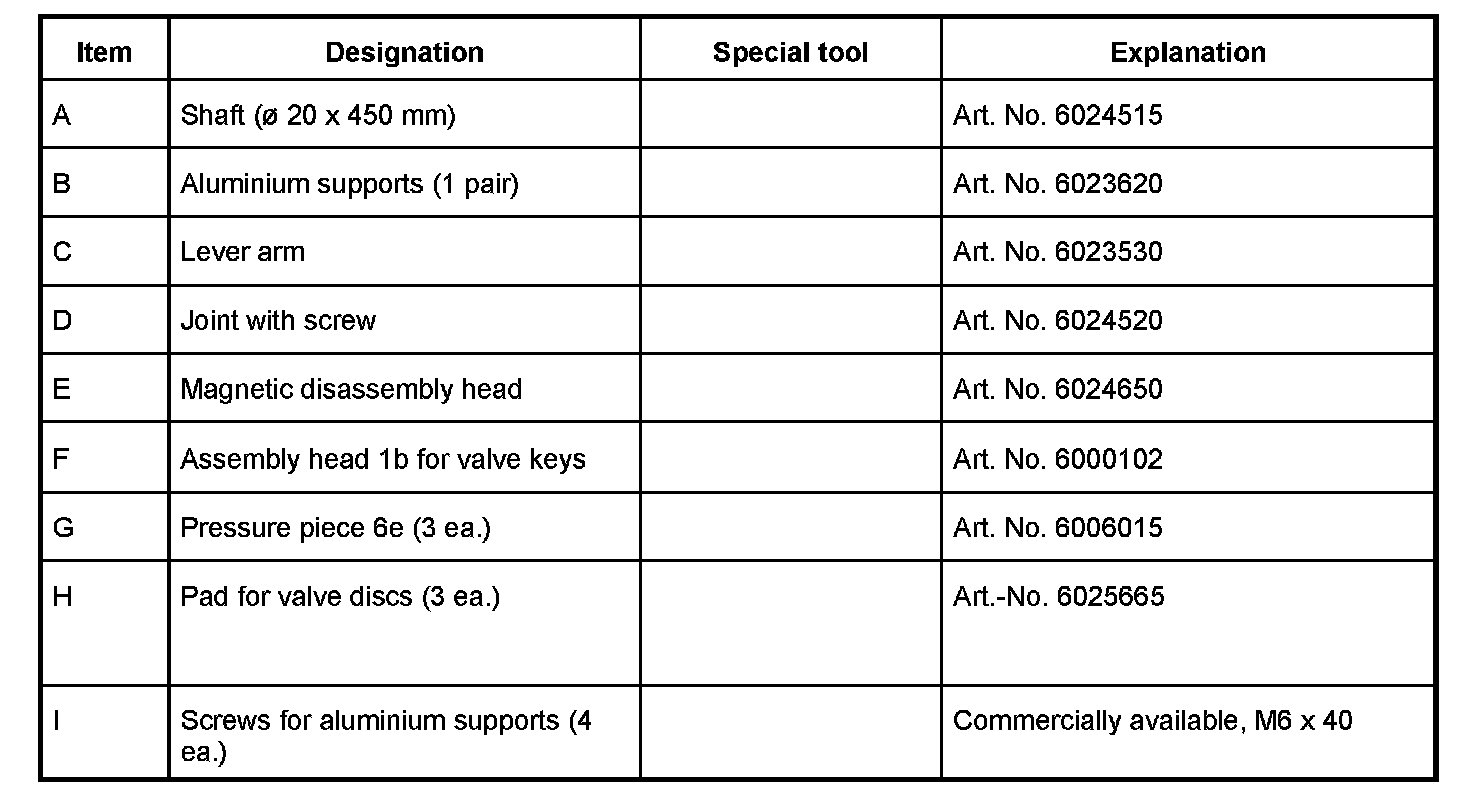

Tools (commercially available)

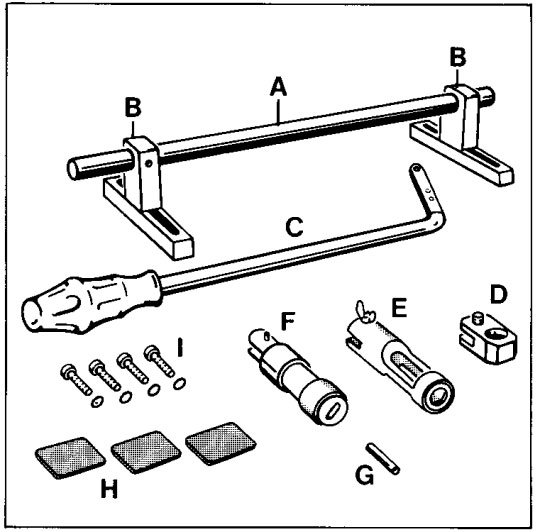

Tools








Diagram shows cylinder head 4 - 6








Assembly instructions

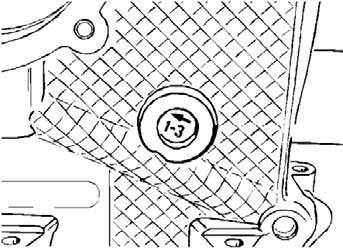

Cylinder bank 1-3

The cylinder heads differ in the area of the chain tensioners and are therefore marked on the front with 1 - 3 or 4 - 6 to prevent mix-ups.

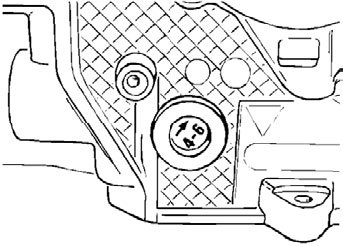

Cylinder bank 4 - 6
