Removal and Replacement

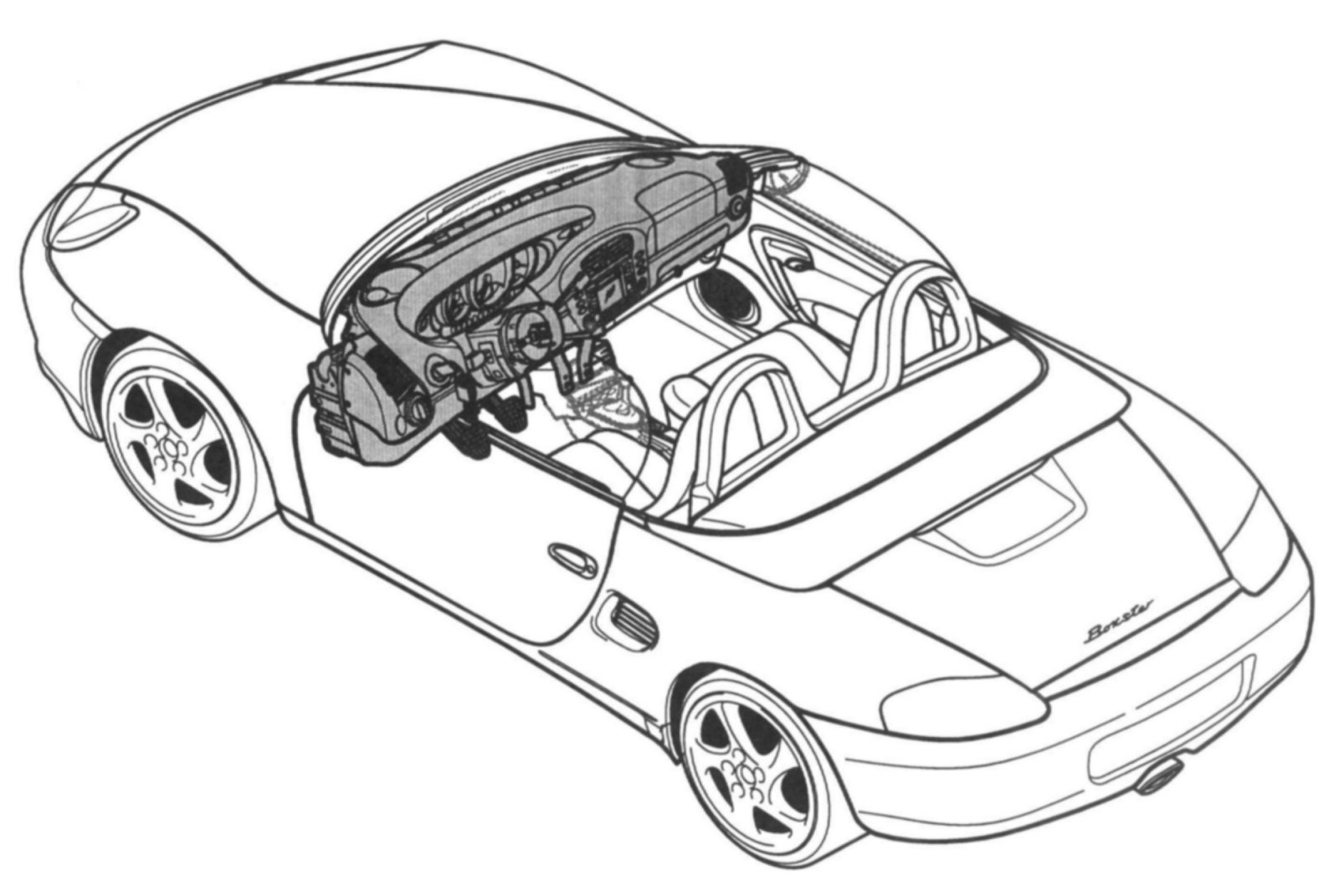

701819 Removing And Installing The Instrument Panel And Instrument Panel Bracket - As Of Model Year 2003

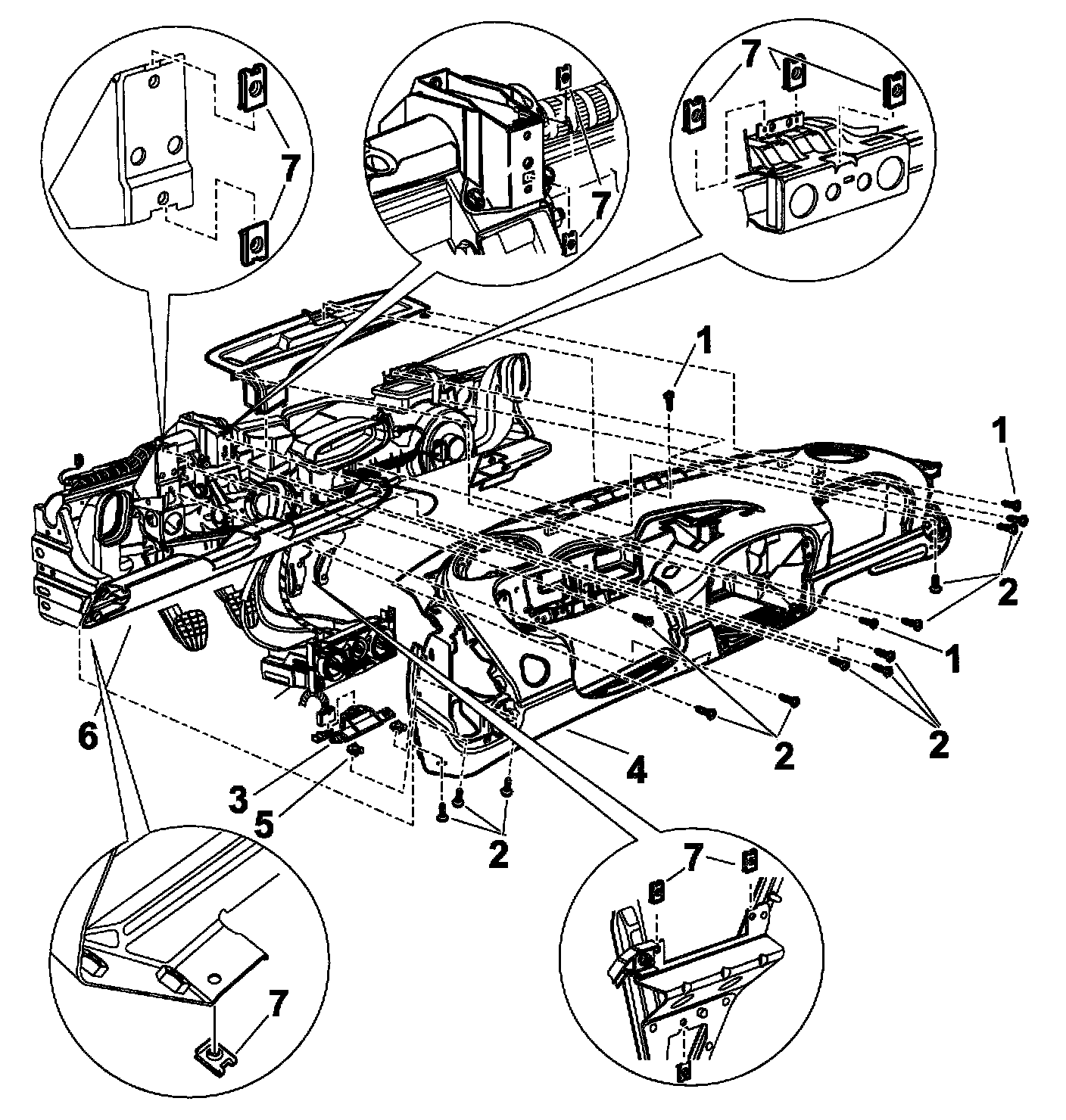

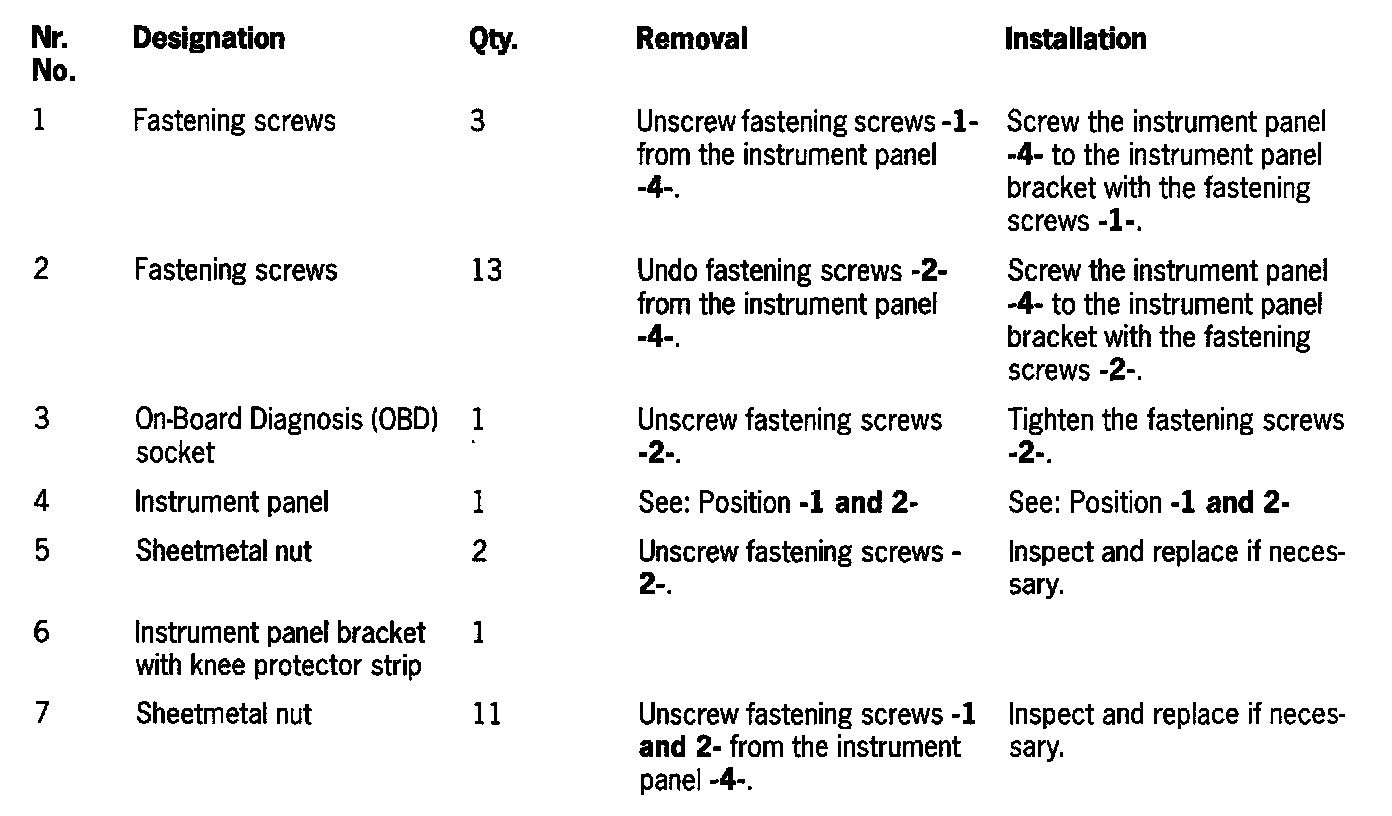

Removing And Installing The Instrument Panel










NOTE: Before removing the instrument panel bracket, the instrument panel must be disassembled.

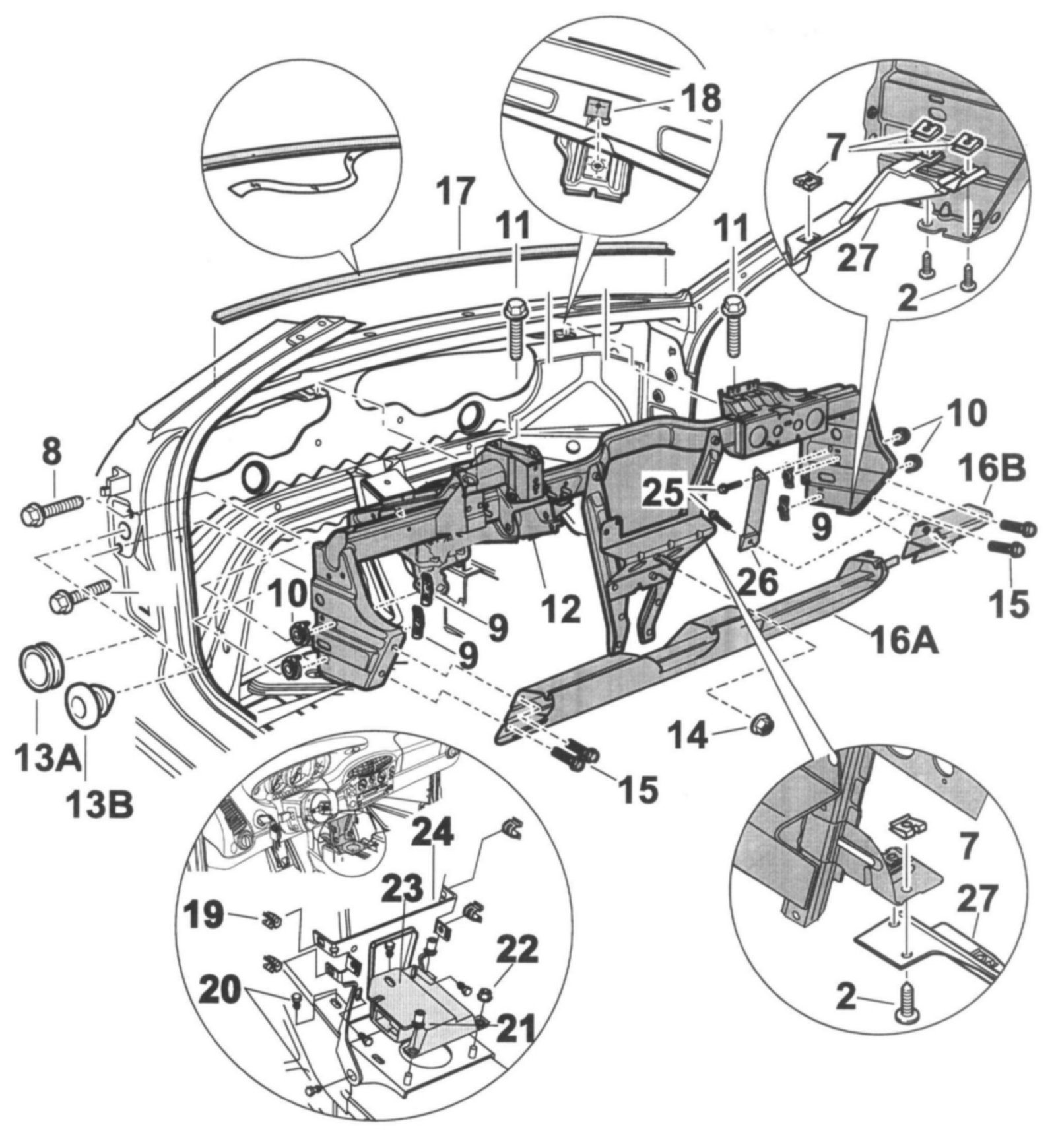

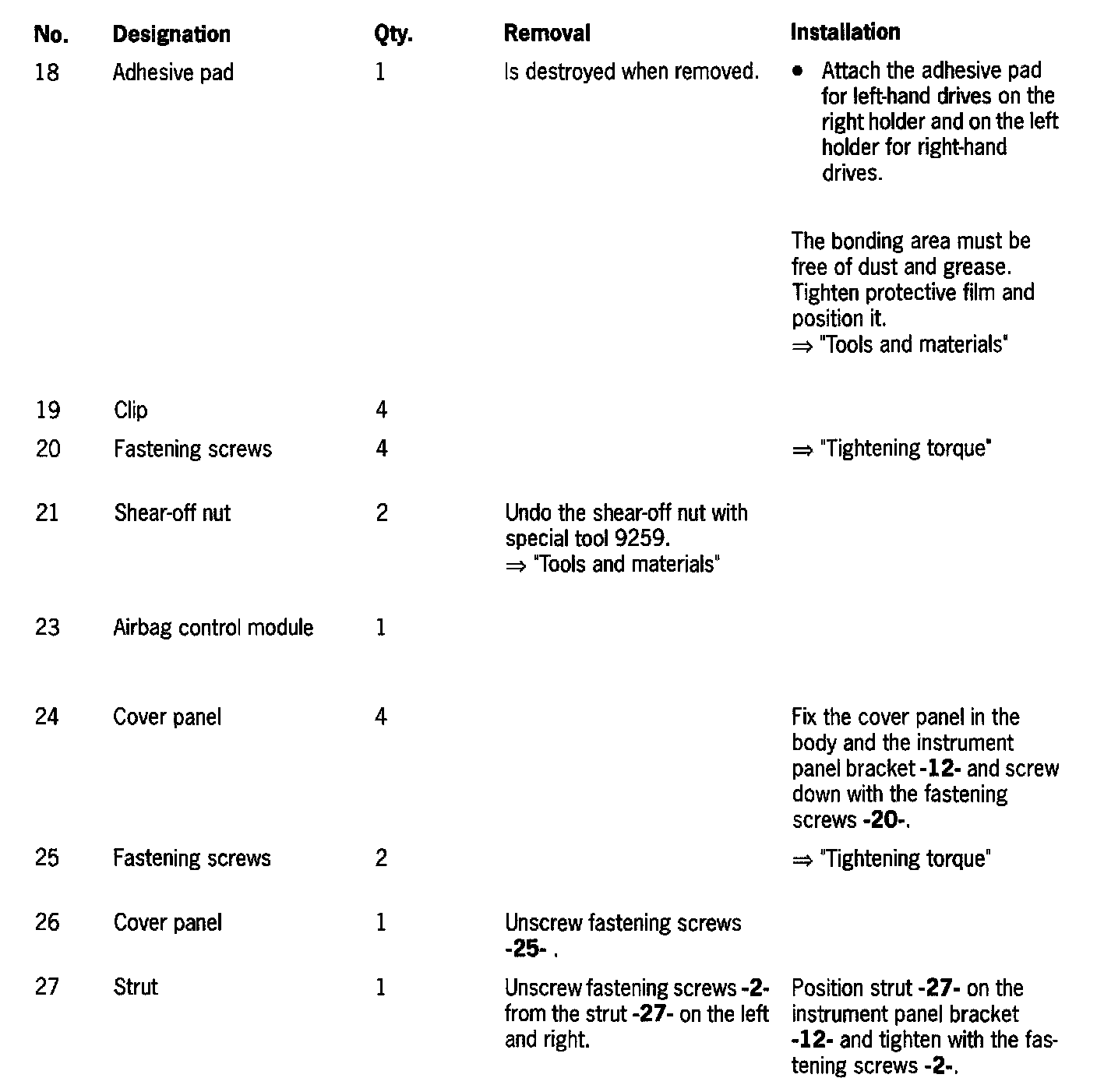

Removing And Installing The Instrument Panel Bracket













NOTE: Before removing the instrument panel bracket, the instrument panel must be disassembled.

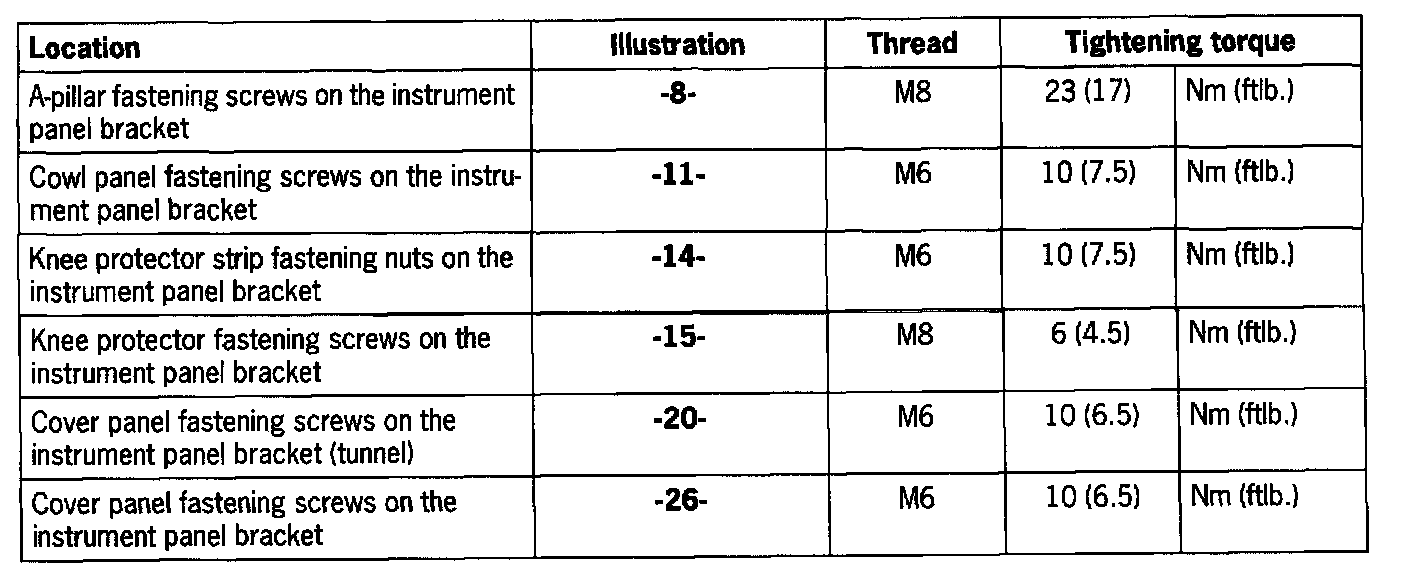

Tightening Torque

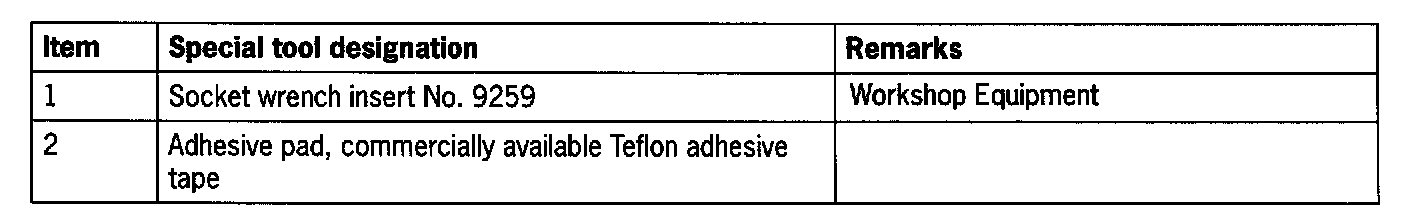

Tools And Materials

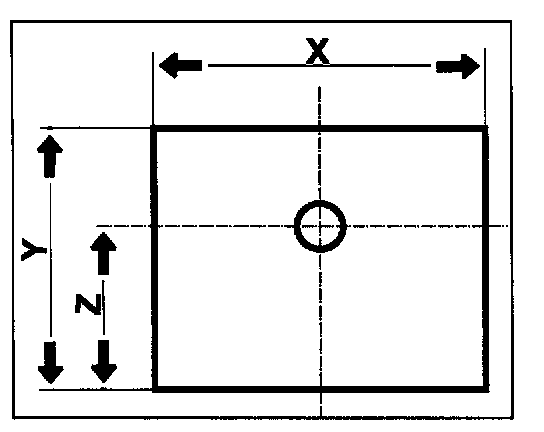

Cutting with adhesive pad

Item 1 - 2:

X - 50mm
Y - 40 mm
Z - 25 mm

Punch out the crack -Z- at a diameter of 7 mm
