Installing the Cigarette Lighter

Installing The Cigarette Lighter:

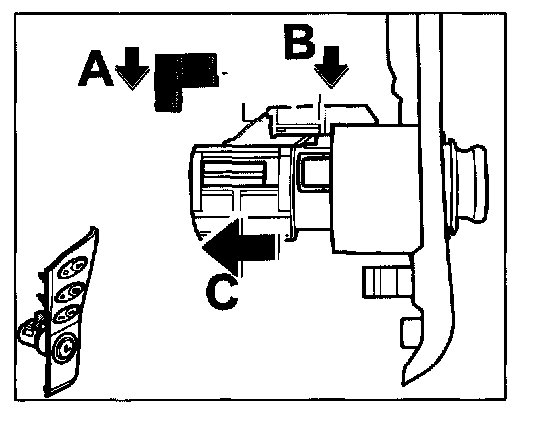

1 - Press the illumination ring with the cigarette lighter -C- into the front cover from the front.
2 - Clip the lights bracket -B- into place. Ensure that the locking tabs have engaged.
3 - Engage cover -A-. Ensure that the locking tabs have engaged.
