Positive Crankcase Ventilation

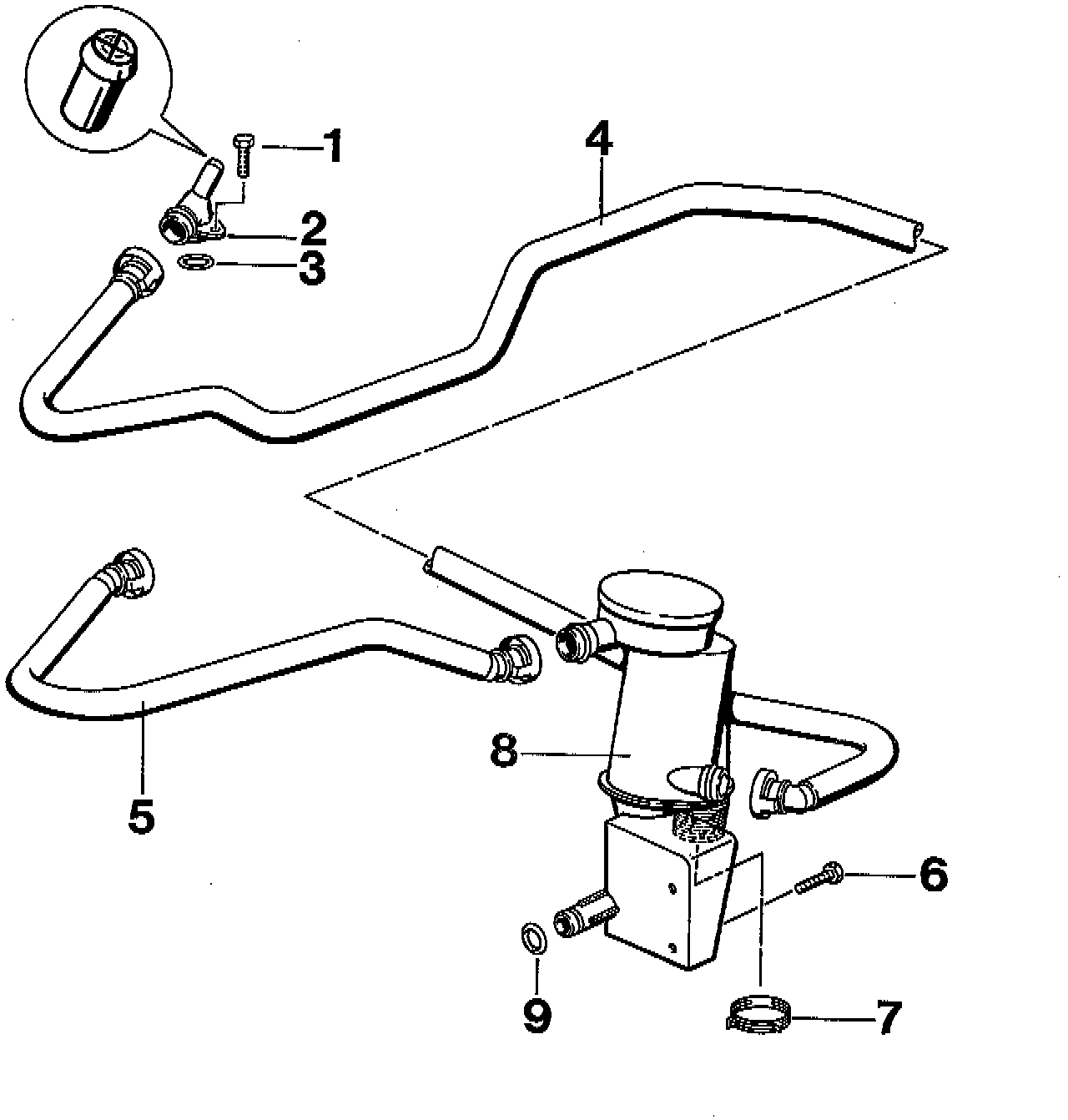

LEGEND
1 Hexagon Head Bolt 6 x 16 mm
2 Positive Crankcase Ventilation Valve
3 O-ring 18.77 X 1.78 mm
4 Breather Hose
5 Breather Hose
6 Hexagon Head Bolt 6 X 30 mm
7 Hose Clamp 32 X 12 mm
8 Oil Separator
9 O-ring 13 X 2.5 mm

REMOVAL AND INSTALLATION
Refer to the illustration when serviceing the Positive Crankcase Ventilation (PCV) system, noting the following information.
- The overpressure valve cannot be exchanged.
- Replace system O-rings when system component is serviced.
