Processing Of Porsche 2-Component Window Bonding Agents

Processing Of Porsche 2-Component Window Bonding Agents

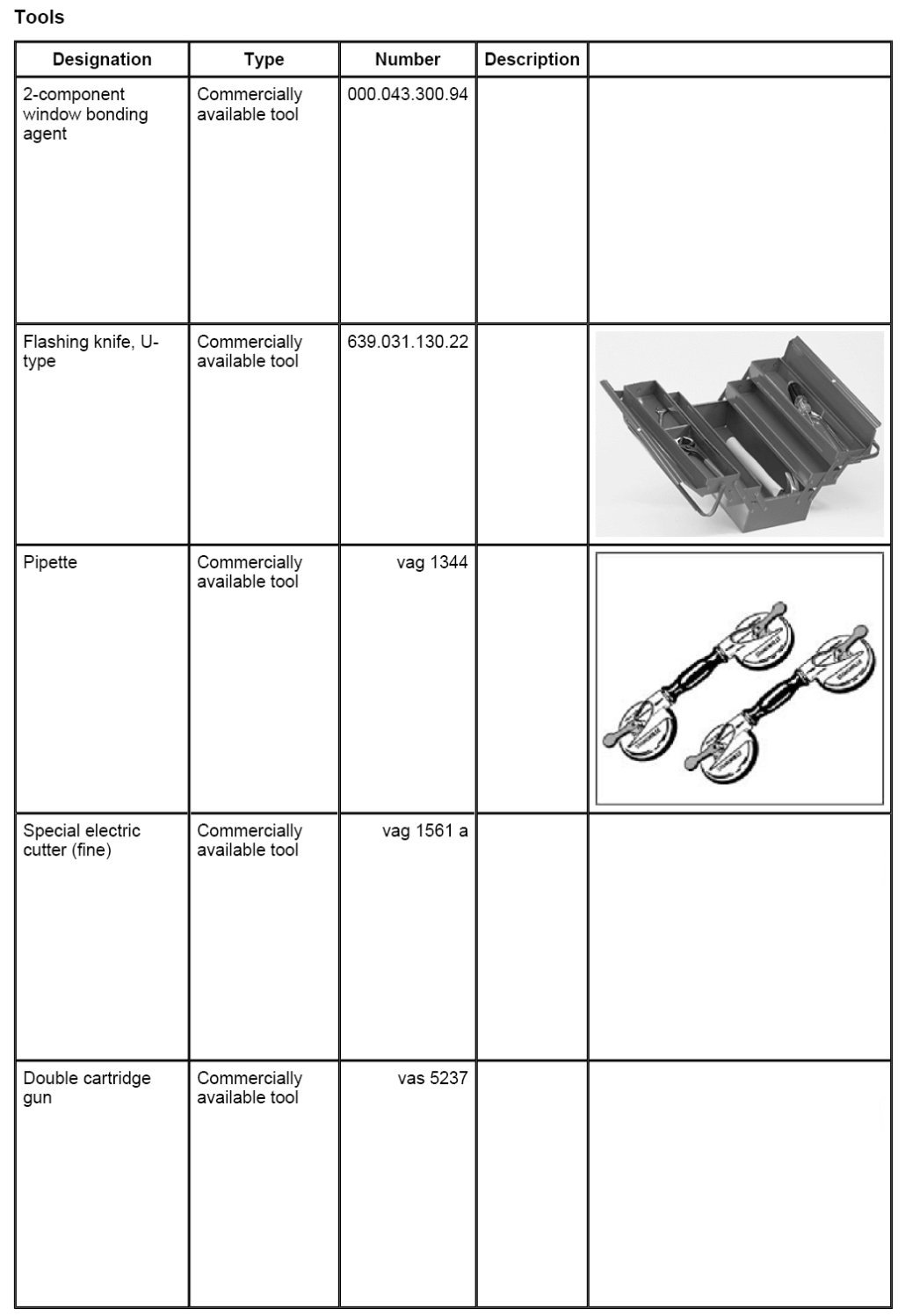

Tools

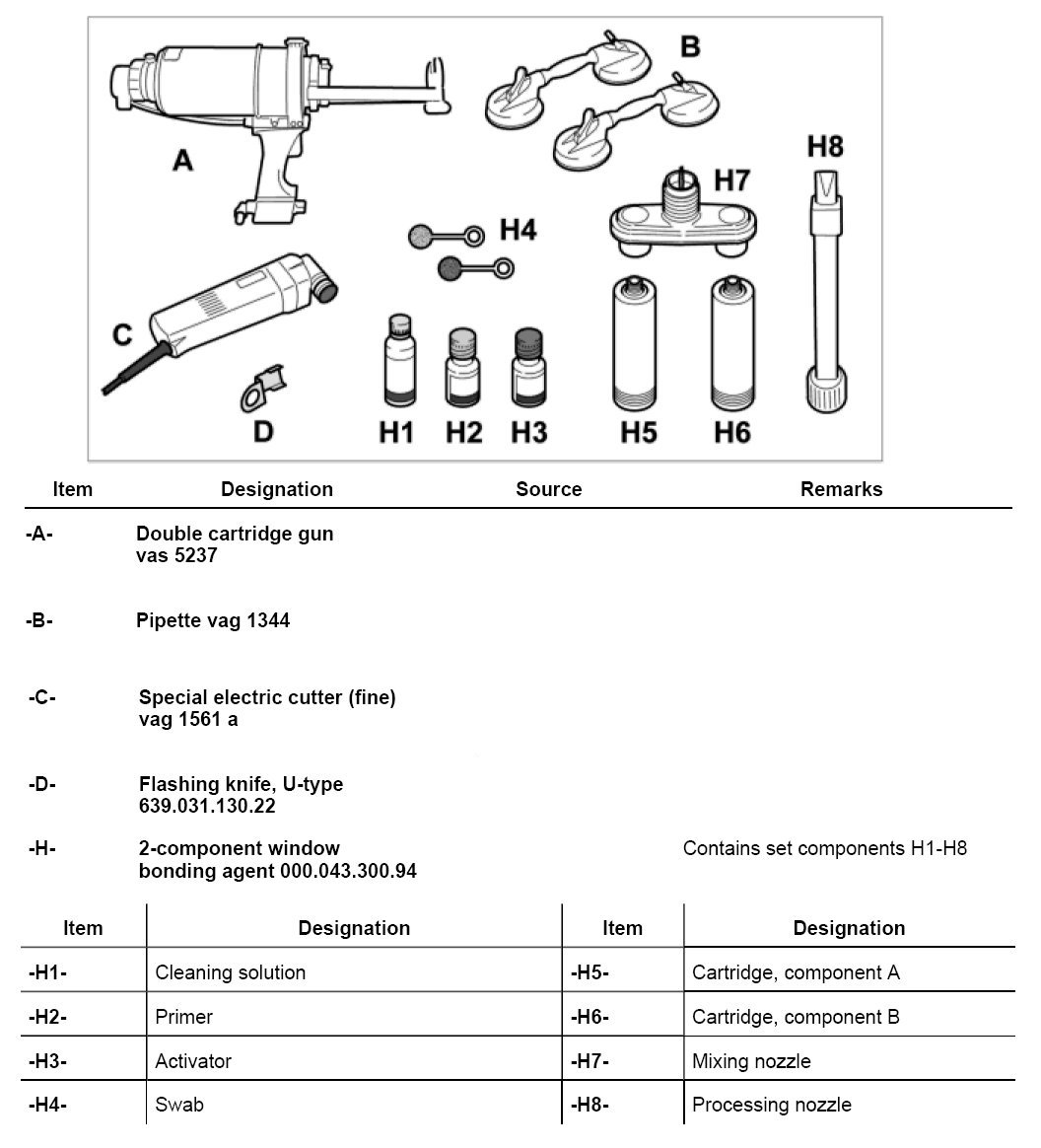

Overview of tools and materials

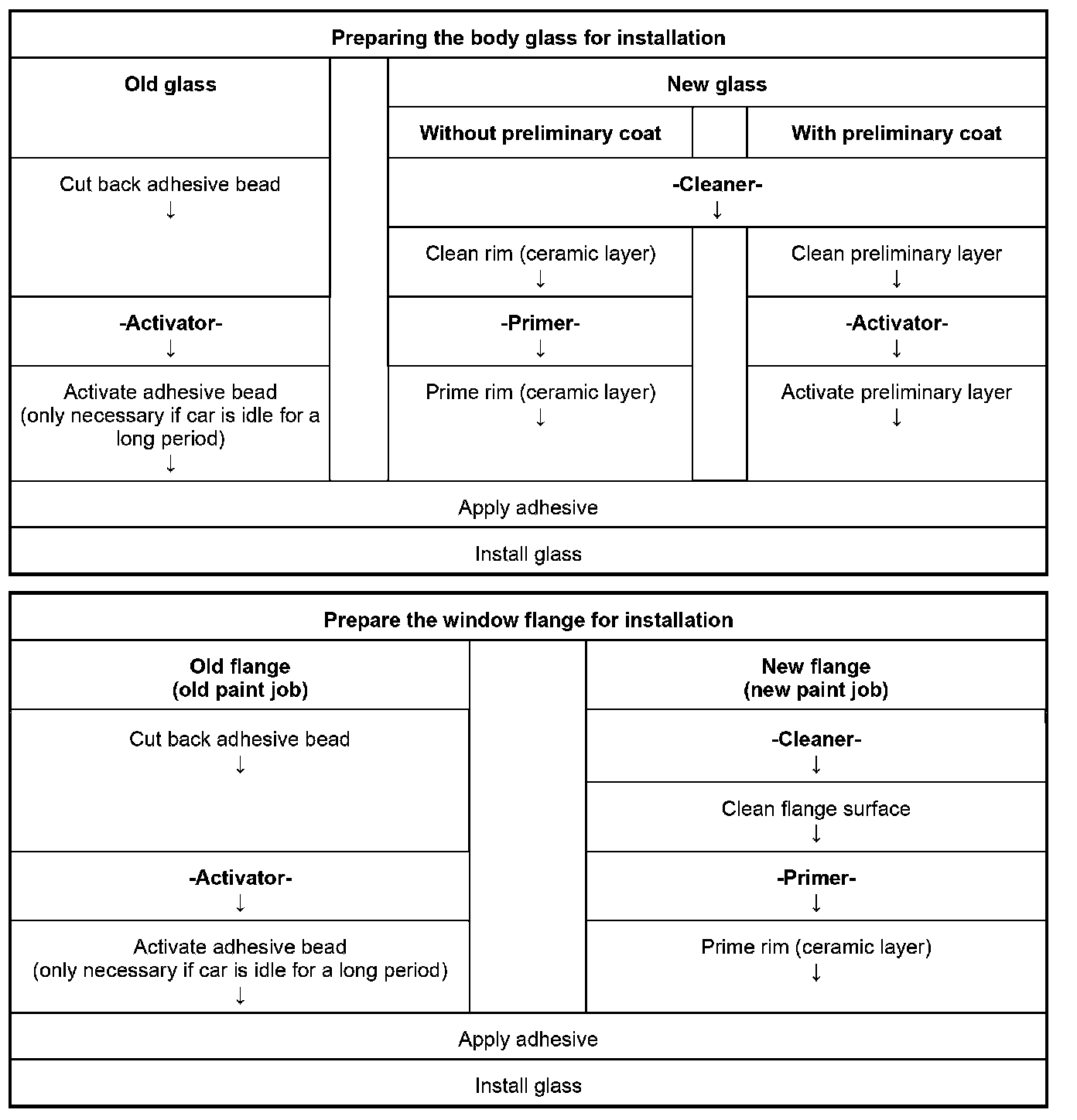

Preparing the adhesive surfaces

INFORMATION: The table below shows how to use cleaners, primers and activators when preparing the adhesive surface.







Combined procedure (handling double cartridge press)

CAUTION: Observe the safety instructions of the individual adhesive set components.

INFORMATION: In addition to this manual, observe the relevant job descriptions for installing car windows (Group 64) in the Technical Manual.

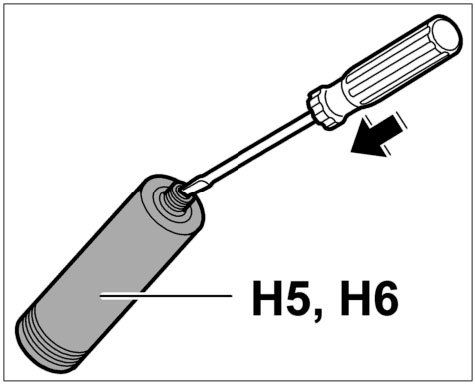

1. Preparing cartridge components A and B -H5, H6-







1.1. Pierce the membrane in the nozzle connection of components A and B (aluminium cartridge) -H5- with a screwdriver and extend the opening. Remove flanged cover on end of cartridge.

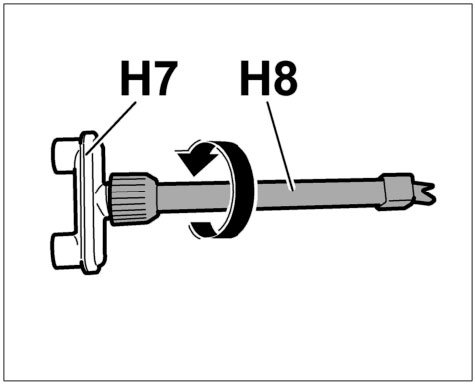

2. Screwing on processing nozzle -H8-







2.1. Screw processing nozzle -H8- onto the mixing nozzle -H7-.

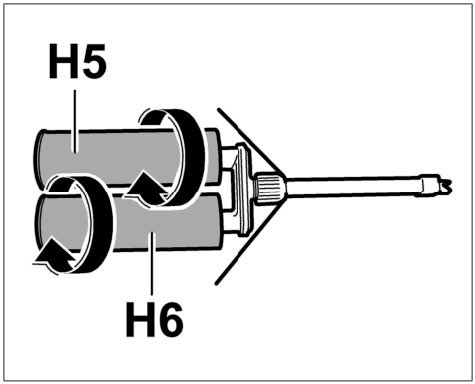

3. Screwing on mixing nozzle -H7-







3.1. Screw both cartridges onto the mixing nozzle.

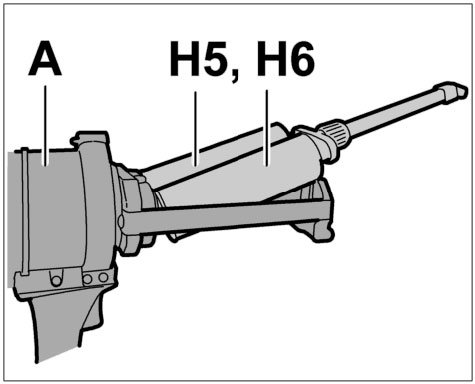

4. Placing mixing cartridge in the double cartridge gun







4.1. Move pressure piston back fully.
4.2. Place double cartridge -H5, H6- in the bonding gun -A-.

5. Mixing adhesive components







5.1. By activating the valve -arrow- allow the pressure piston to move out slowly until the adhesive is visible in the processing pipe.

INFORMATION:

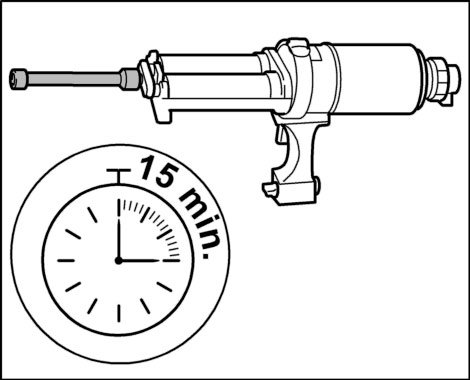

- The bonding material has an open time of -15 min-, which means that the bonding material must be applied and the car window must be assembled within this period of time.
- In order to ensure that the substance is completely mixed, apply a 30 mm long adhesive bead of fresh adhesive to a piece of cardboard before processing.

6. Affixing car window
