Fault Code 5524

Fault Code 5524

DME: incorrect CAN rpm signal

NOTE: The fault is sent from the DME control module to the PSM control module via the CAN bus. The PSM system is not faulty.

Diagnostic conditions
- Engine running
- Fault is sent by the DME control module via the CAN

Possible cause of fault
- Fault in DME

Affected terminals

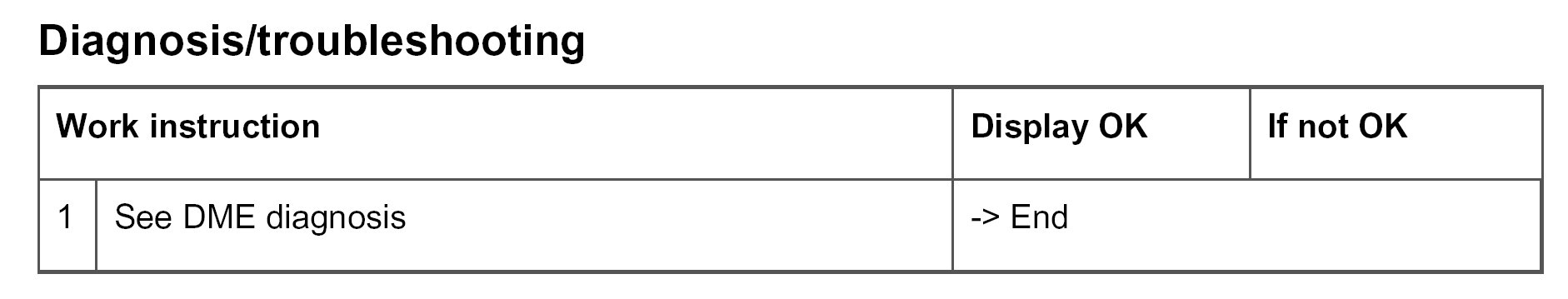

Diagnosis/troubleshooting

Diagnosis/troublesooting:
