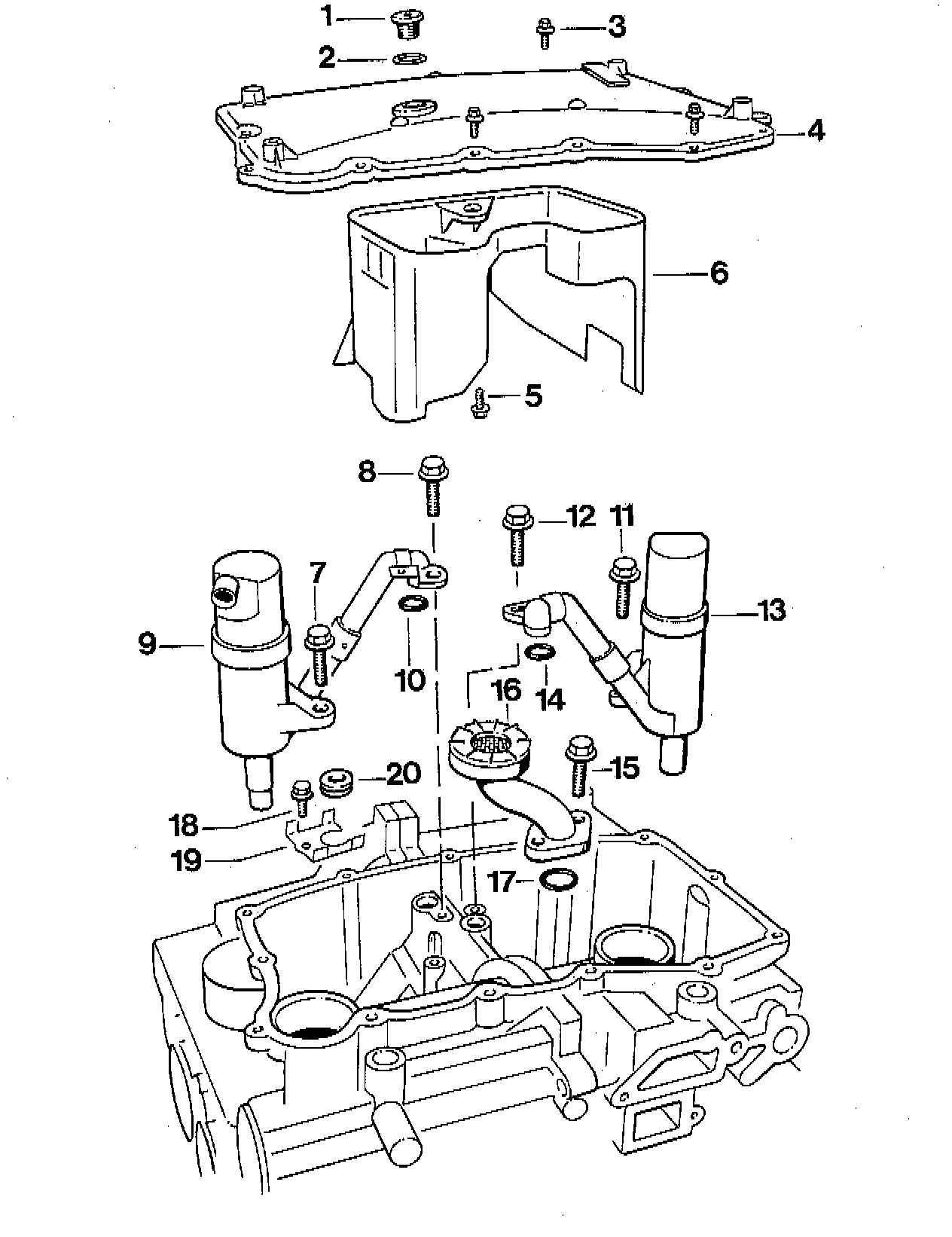

Engine Lubrication: Diagrams

LEGEND
1 Oil Drain Plug 18 x 1.5 mm
2 Sealing Ring 18 X 24 mm
3 Hexagon Head Bolt 6 x 16 mm
4 Oil Pan
5 Hexagon Head Bolt 6 x 16 mm
6 Bulkhead Bo x
7 Hexagon Head Bolt 6 x 20 mm
8 Hexagon Head Bolt 6 x 20 mm
9 Air/Oil Separator
10 O-ring 12 x 2 mm
11 Hexagon Head Bolt 6 x 20 mm
12 Hexagon Head Bolt 6 x 12 mm
13 Air/Oil Separator
14 O-ring 12 x 2 mm
15 Hexagon Head Bolt 6 x 20 mm (micro-encapsulated)
16 Oil Suction Pipe
17 O-ring 30 x 3mm
18 Hexagon Head Bolt 6 x 12 mm
19 Holder For Oil Probe
20 Grommet 9.5 x 18 x 1.2 mm
