Overhaul

683037 Disassembling And Assembling Cup Holder

Preliminary work
1. Remove cup holder.
2. Remove moulding for dashboard (cup holder).

Disassembling cup holder

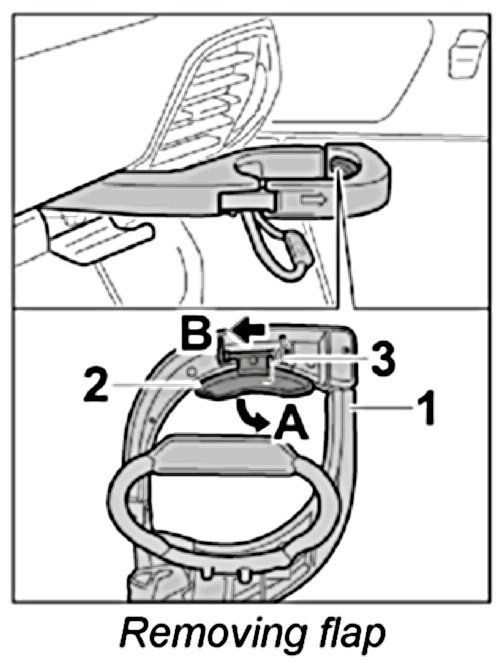

Removing flap

NOTE: The flap can be replaced when the vehicle's cup holder is installed or removed.

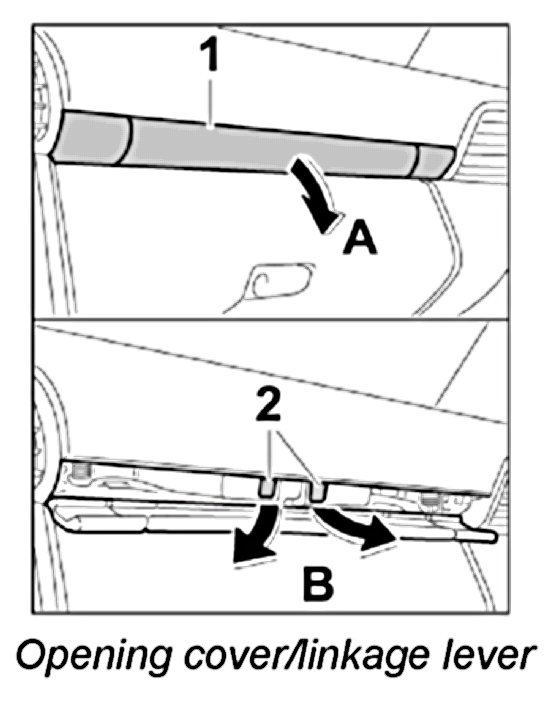

1. Open cover -1- in -direction of arrow A-.






2. Open linkage lever -2- in -direction of arrow B-.

NOTE: Make sure that the torsion spring -3- does not jump out of place.

3. Insert a screwdriver between the linkage lever -1- and flap -2-, unclip it in -direction of arrow A- and remove it from the linkage lever -arrow B-.






Assembling cup holder

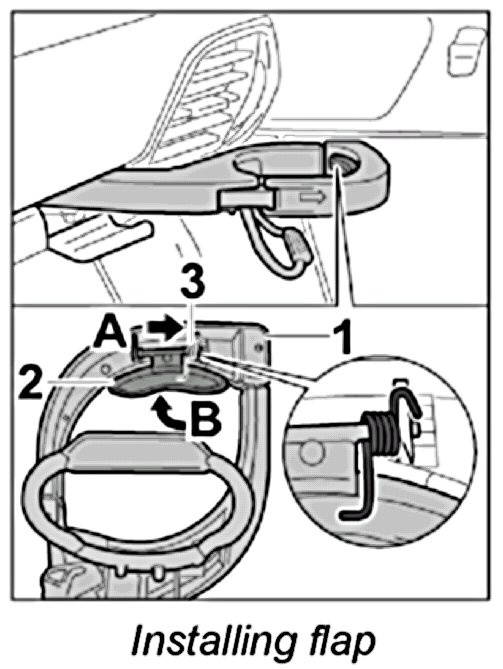

Installing flap

NOTE: To fit the flap correctly, the torsion spring -3- must be hooked in prior to installation.

1. Position flap -2- on the linkage lever -1- (-arrow A-) and press it in -direction of arrow B- until it locks with an audible click.






2. By carefully folding over the flap - 2-, check that the torsion spring -3- is secured correctly.

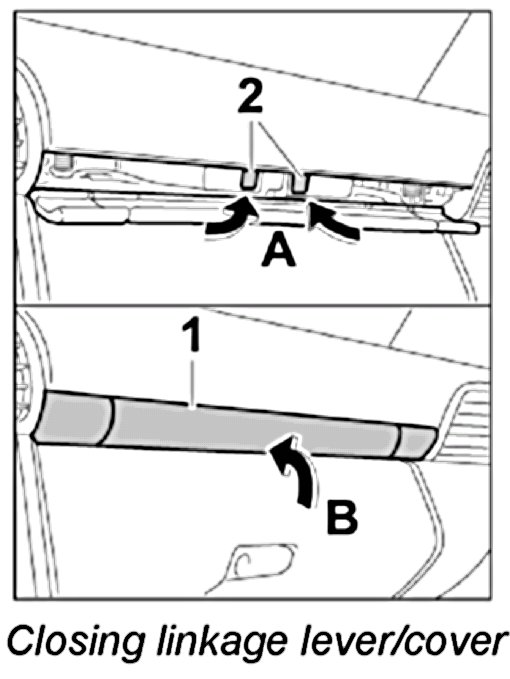

3. Close linkage lever -2- until it engages securely -arrows A-.






4. Close cover -1- until it engages securely -arrow B-.

Subsequent work
1. Install moulding for dashboard (cup holder).
2. Install cup holder.
