Multiple Junction Connector

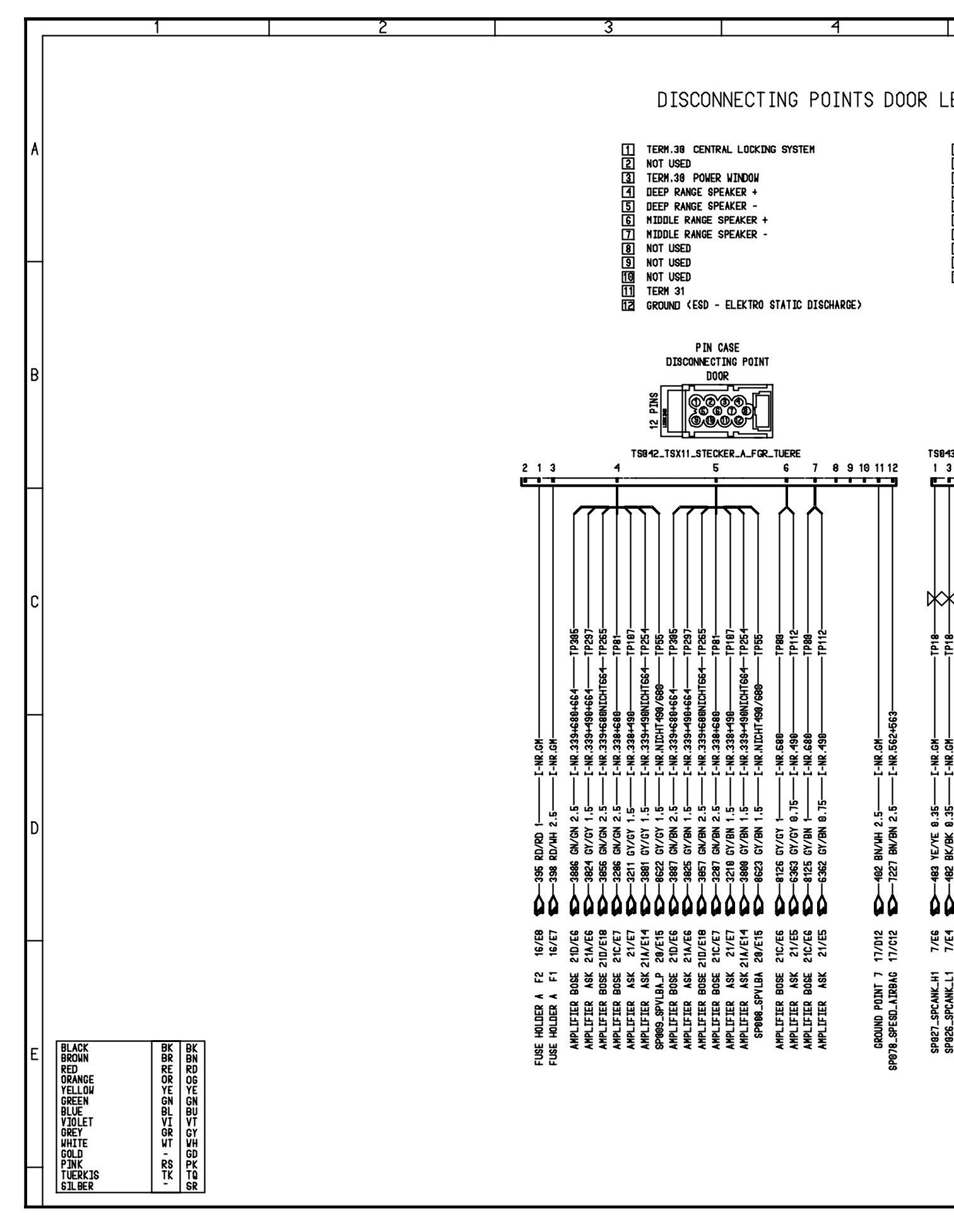

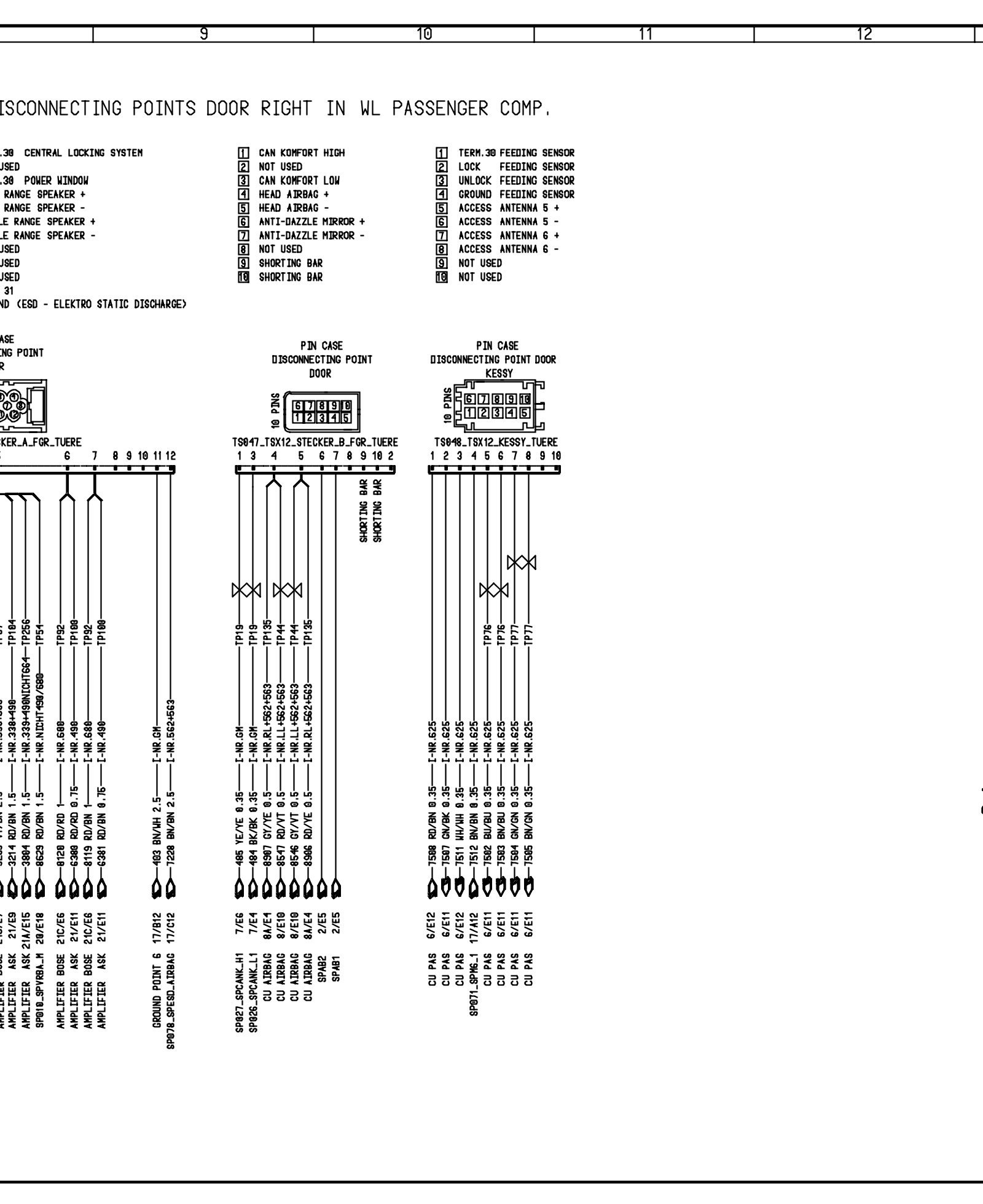

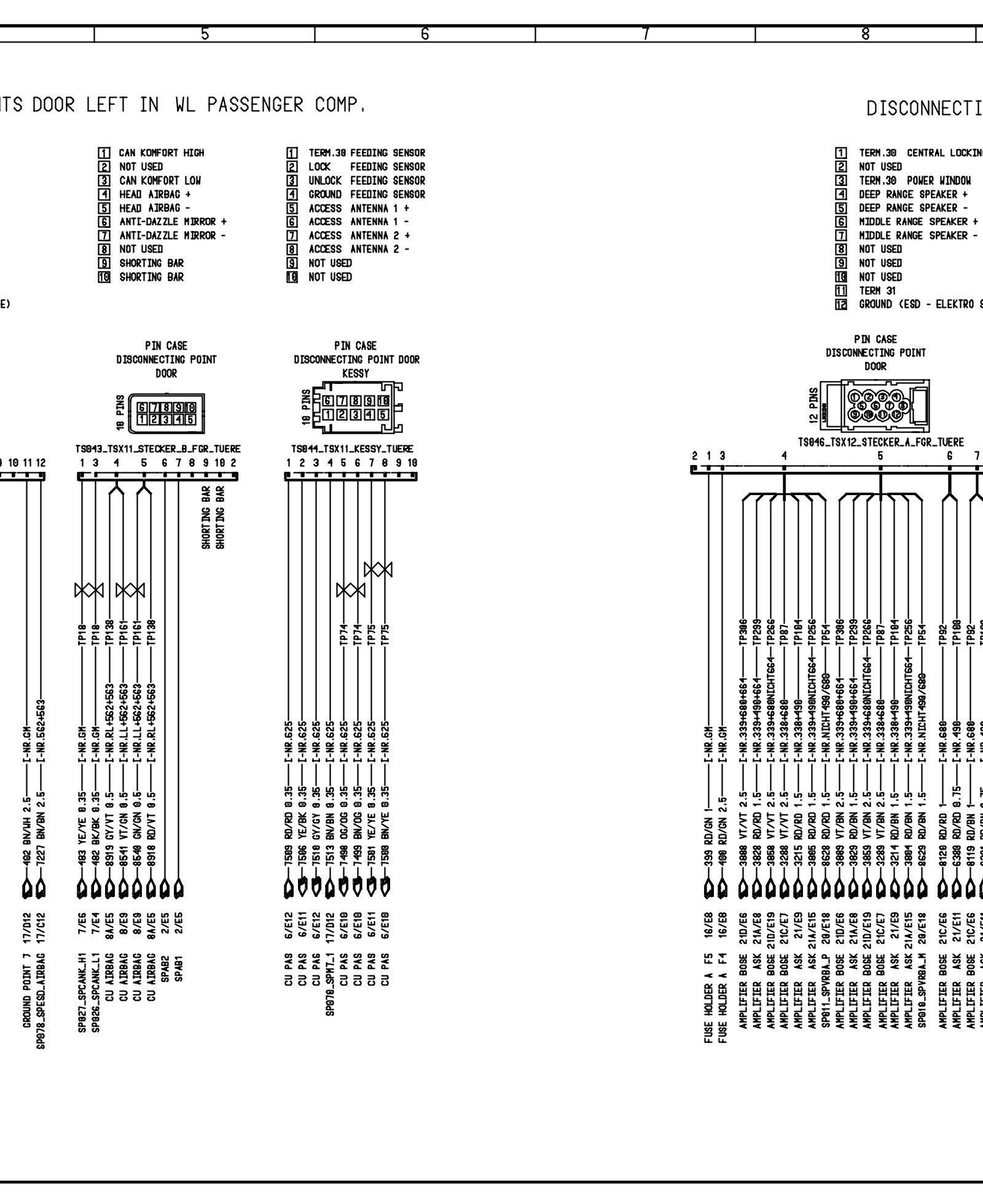

Disconnecting Points Doors Left/Right - Sheet 9A (Part 1):

Disconnecting Points Doors Left/Right - Sheet 9A (Part 2):

Disconnecting Points Doors Left/Right - Sheet 9A (Part 3):

Disconnecting Points Doors Left/Right - Sheet 9A (Part 4):
