Removing and Installing Wiring Harness

Removing and installing wiring harness

Note!
^ The ATF temperature sensor is integrated in the transmission wiring harness. If damaged, the complete transmission wiring harness must be replaced.

Removal

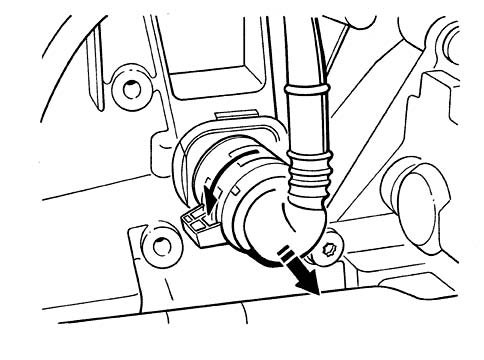

1. Disconnect plug for transmission socket. To do this, turn plug anticlockwise and pull off.





2. Remove retaining clip.
3. Remove hydraulic control unit and remove with wiring harness.

Installation





1. Replace sealing rings for socket, coat thinly with Vaseline and insert wiring harness socket in correct position. Lug "A" must point towards the spur gear.
2. Fit the retaining clip.





3. Plug the plug into the socket in the correct position and lock by turning in clockwise direction.
