Replacing Microswitch and Interior Light

Replacing Microswitch And Interior Light

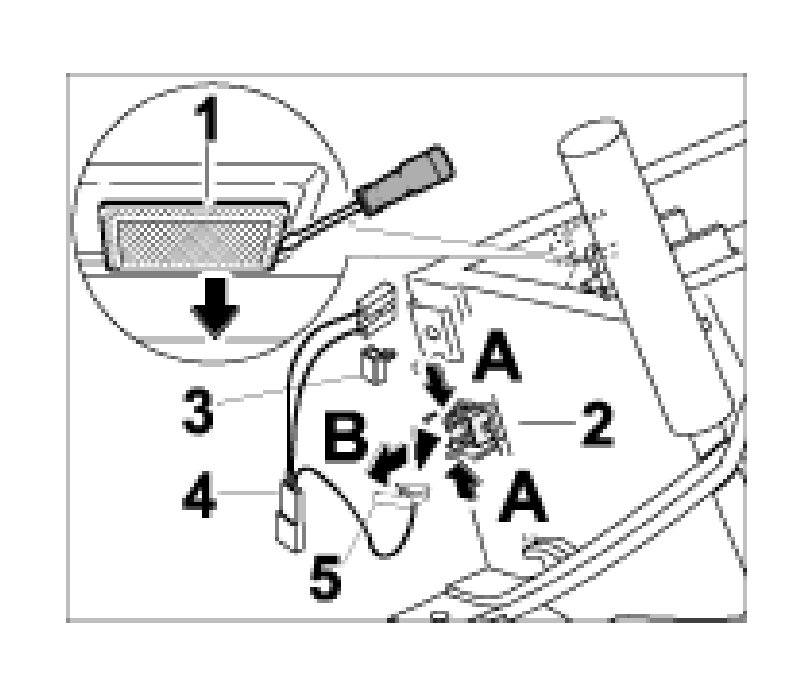

1. Replacing microswitch and interior light

NOTE: In the case of a defective microswitch, the complete wiring harness -4- must be replaced.

a. On the retaining bracket -2- , press the locking tabs -A- apart. Guide out the microswitch -5-.
b. Insert a plastic spatula into the side of the interior light -1- and press out. Disconnect the electrical plug connection.

2. Installing microswitch and interior light
d. Plug in the electrical plug connection of the interior light -1- . Press the interior light -1- into the cut-out of the glove compartment.
e. Press the microswitch -5- into the retaining bracket -2-. Note the coding of the microswitch.
f. To fit the glove compartment, engage the electrical lead -4- into the clip -3-.

Replacing pneumatic shock absorber

1. Removing the pneumatic shock absorber
Press the pneumatic shock absorber -1- out of the fastening tab -arrow B- . Turn the pneumatic shock absorber by 90 degree anti-clockwise in the direction of arrow -A- and guide it out of the glove compartment.







2. Installing the pneumatic shock absorber
Insert the pneumatic shock absorber -1- and turn it 90 degree clockwise in the direction of arrow -A-. Insert the pneumatic shock absorber into the fastening tab towards the -direction of arrow B-.
