PSM 5.7 Connector Assignment

PSM 5.7 Connector Assignment

Connector of PSM 5.7 control module

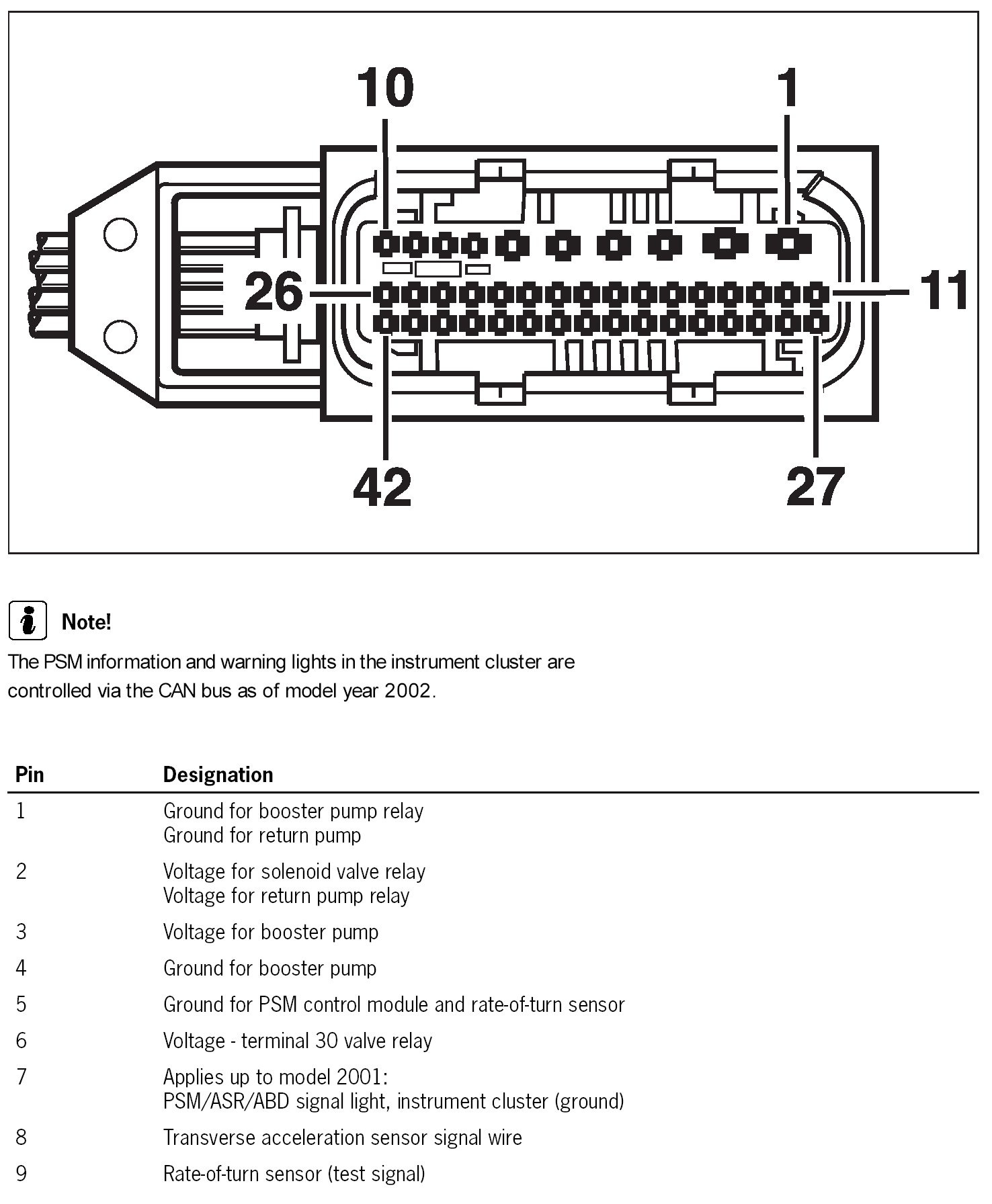

Connector Of PSM 5.7 Control Module (Part 1):

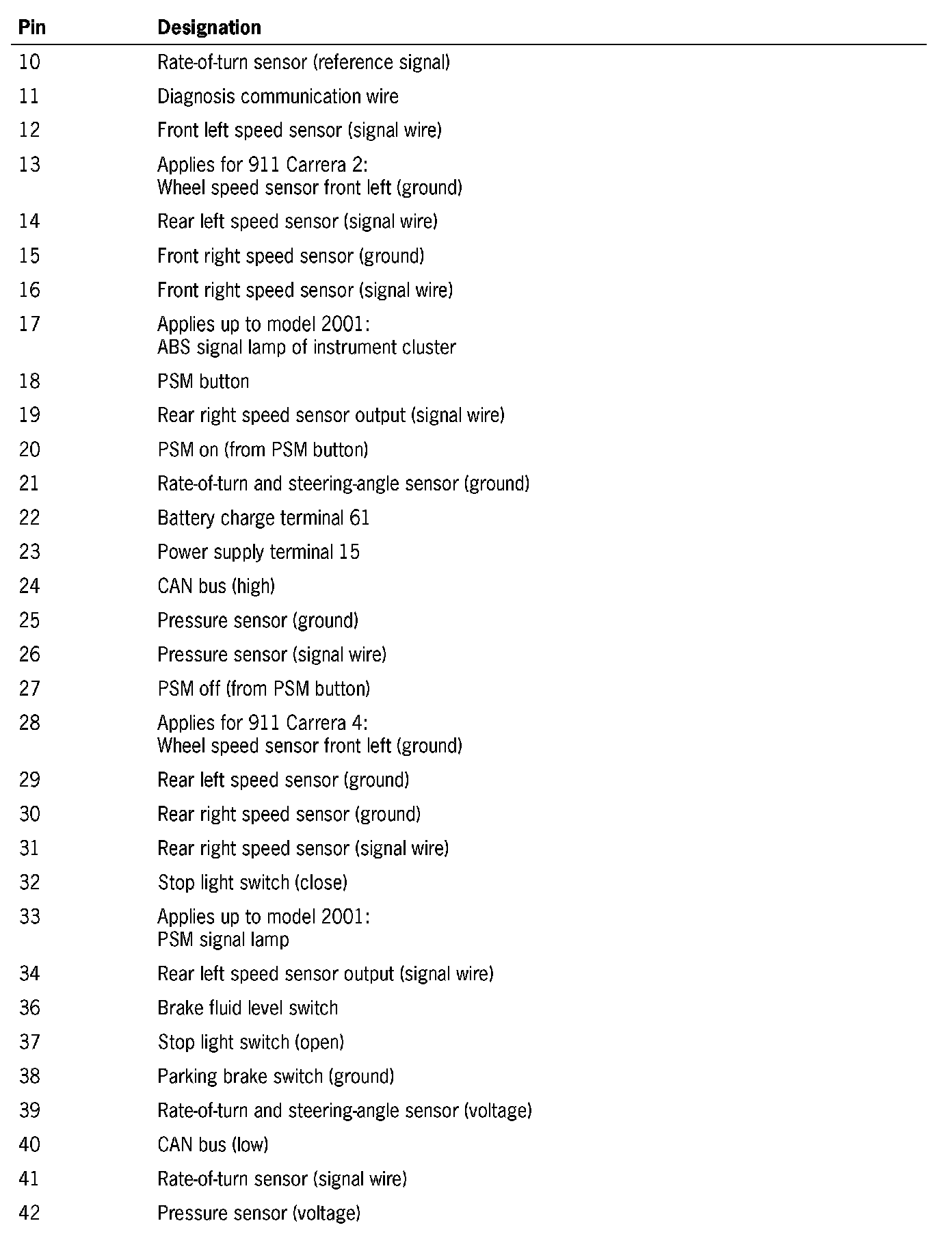

Connector Of PSM 5.7 Control Module (Part 2):

Ground points

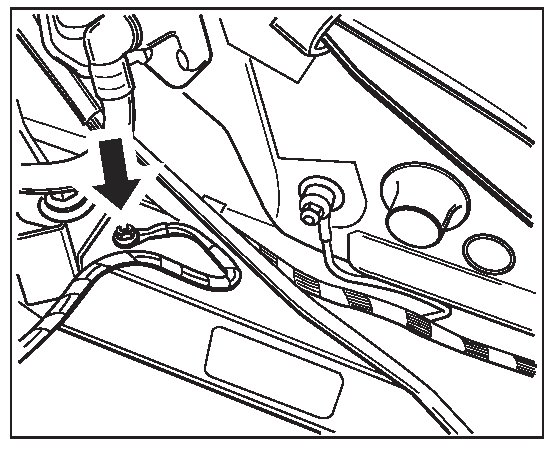

Ground point 2







Ground point 2 is located on the left at the front of the luggage compartment.
