Telephone - Sheet 15B



Telephone - Sheet 15B

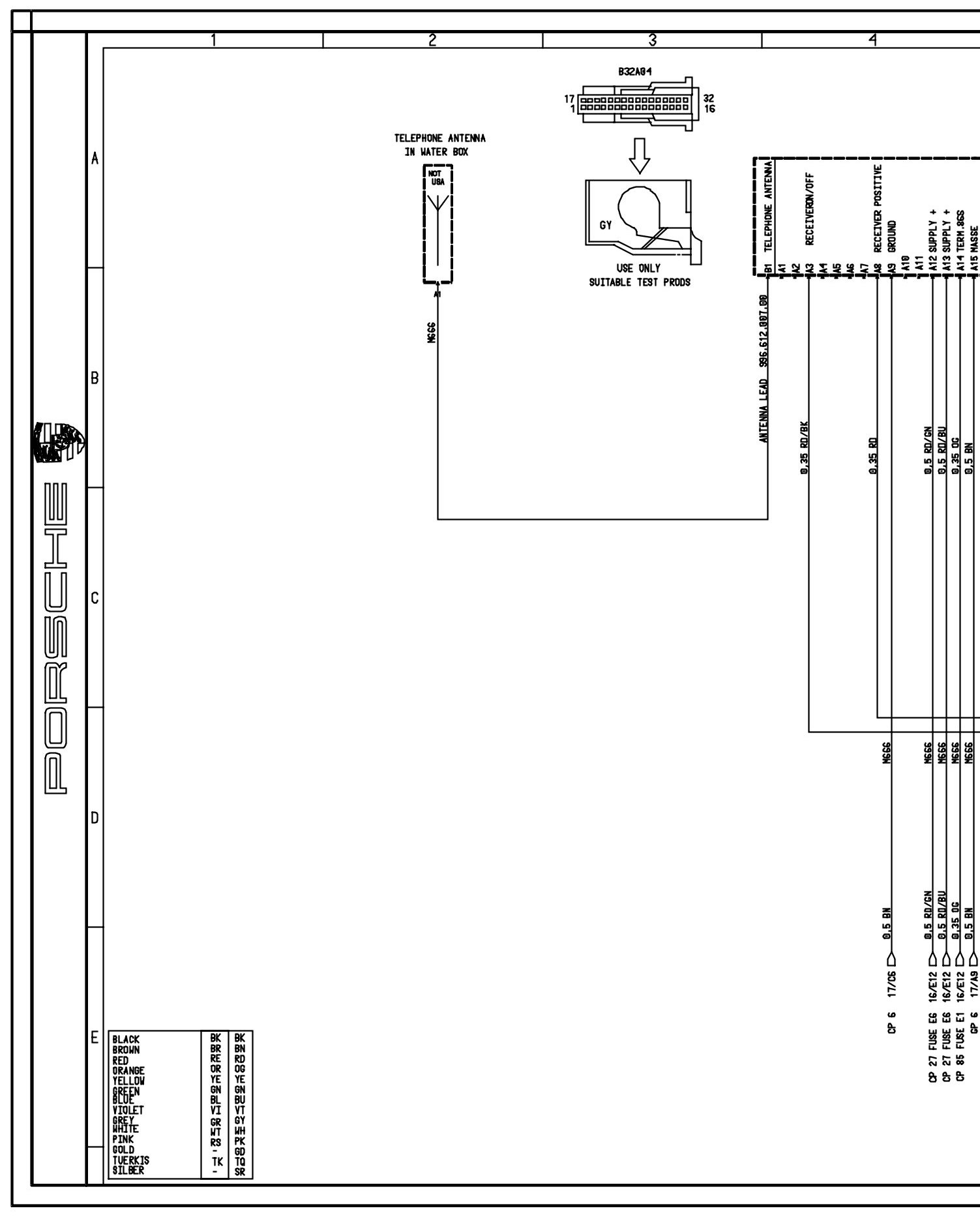

Telephone - Sheet 15B (Part 1):

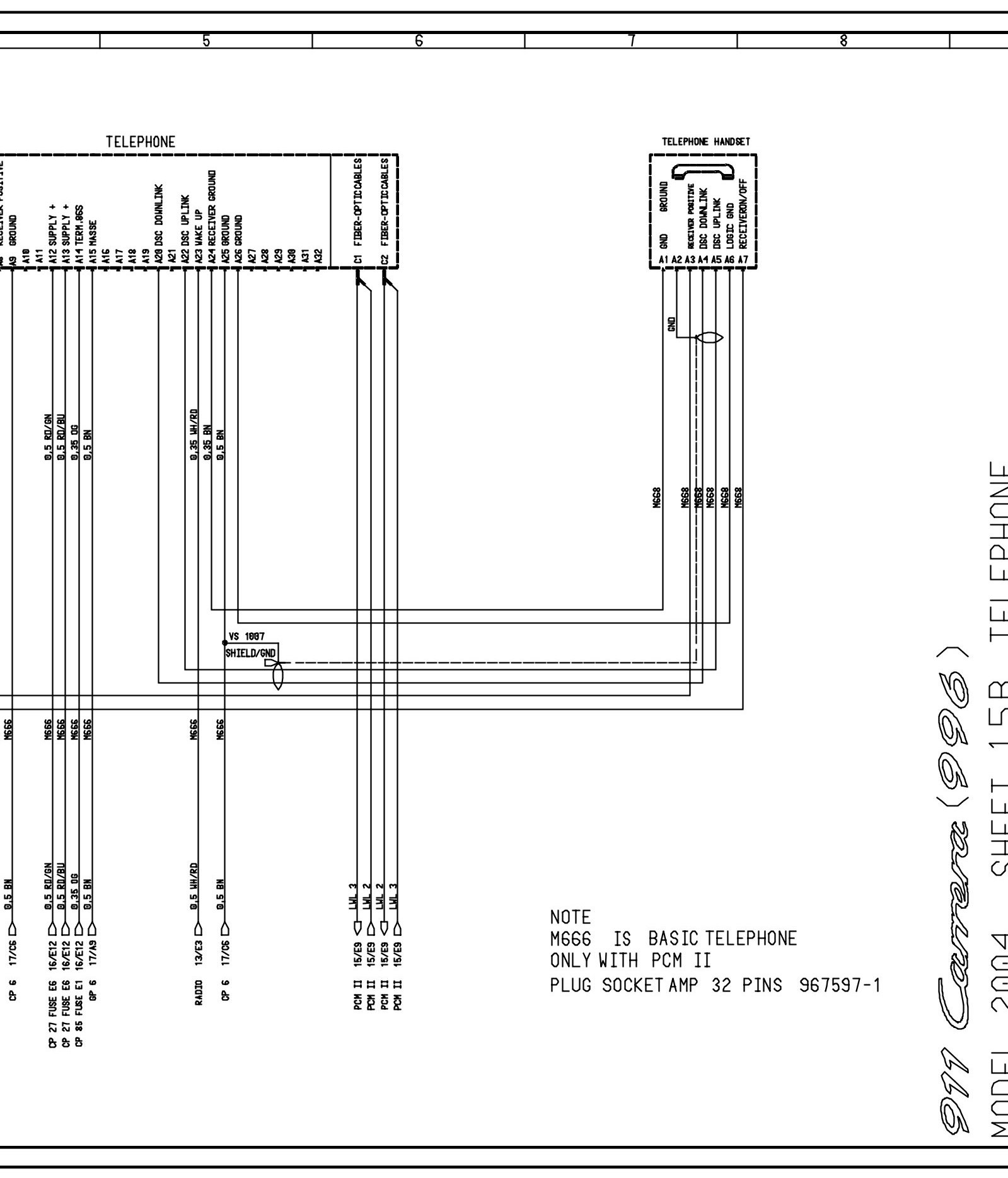

Telephone - Sheet 15B (Part 2):

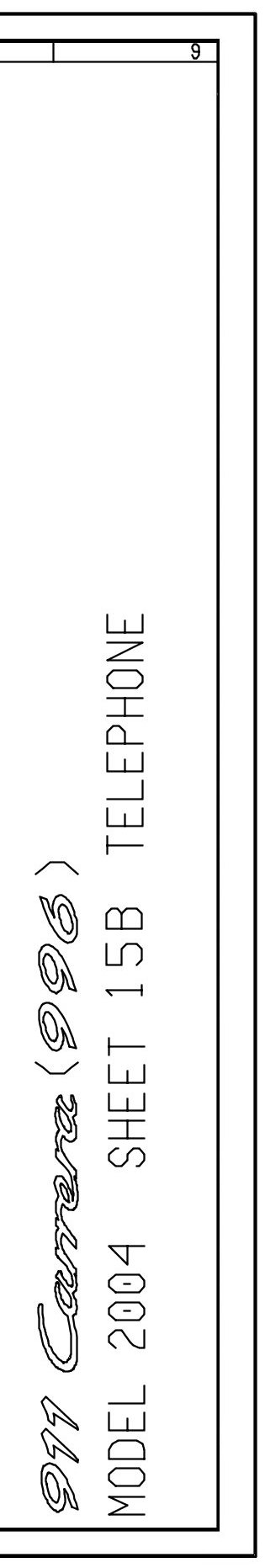

Telephone - Sheet 15B (Part 3):






Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
