Valve Guide Seal: Service and Repair

WM 156319 Removing and installing valve stem seal

Removal





Insert VW special tool 3364 into rib of valve stem seal and pull out.

Installation

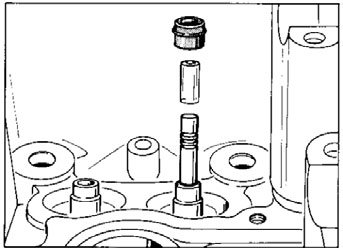

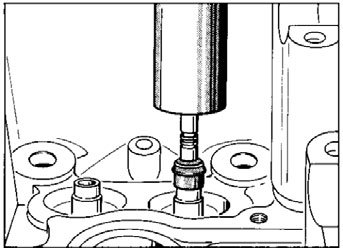

Fit original valve spring support disc. Slide plastic assembly sleeve (diameter 6 mm) onto valve stem. Oil sealing lip and seating surface of valve stem seal, put on by hand and, with assembly mandrel (VW special tool 3365), gently tap as far as the stop on the valve guide. Remove plastic sleeve.
