Air Conditioning H02



Connector Assignment

Connector assignment for air-conditioning control module

NOTE:
- The two connectors, A and C, are replaced by networking (used by CAN-Comfort Bus).
- The signals required for function or control are exchanged via the CAN Bus lines CAN Comfort high and CAN Comfort low.

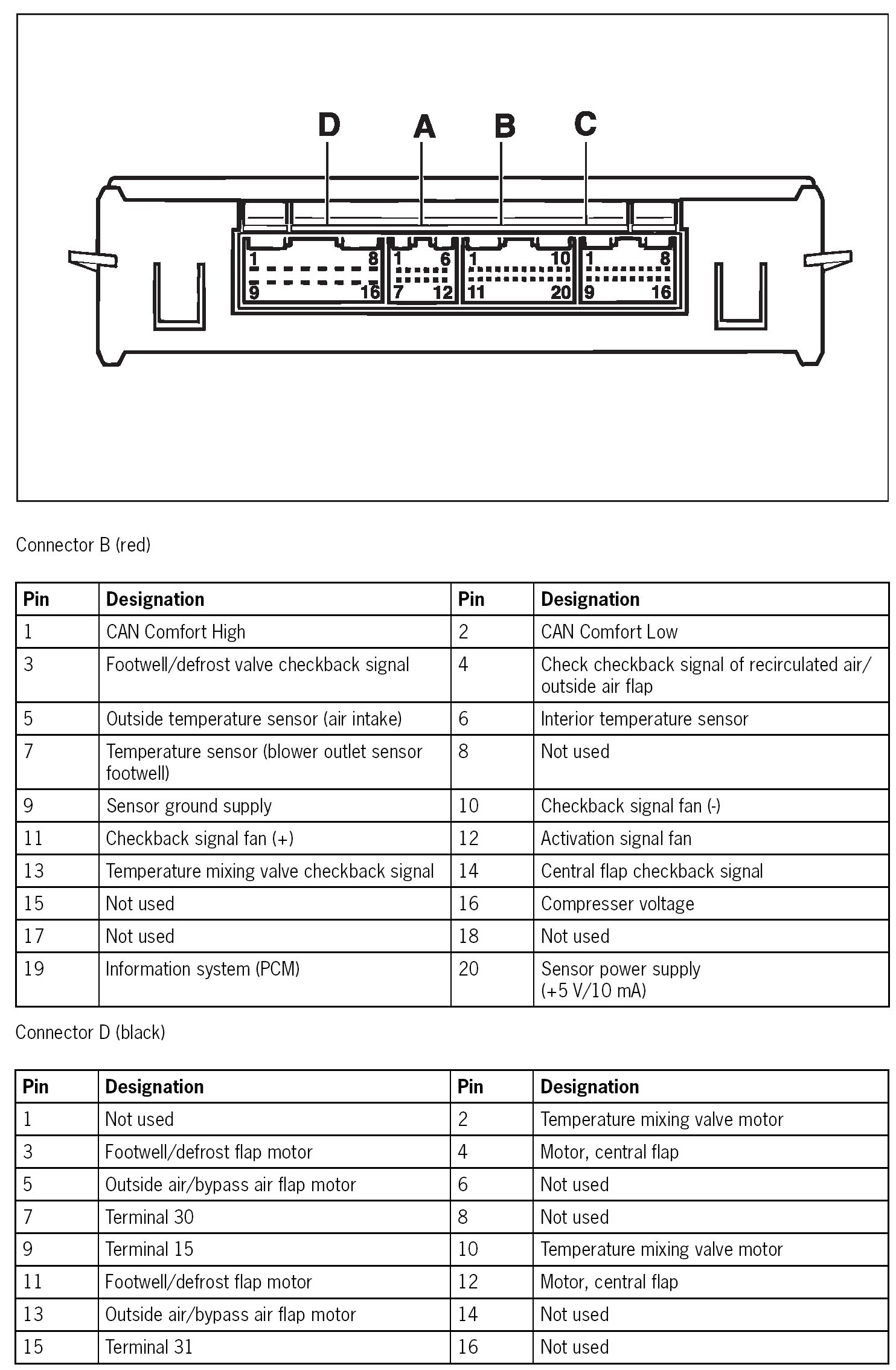

Connector Assignment For Air-Conditioning Control Module:
