Front Bumper: Service and Repair

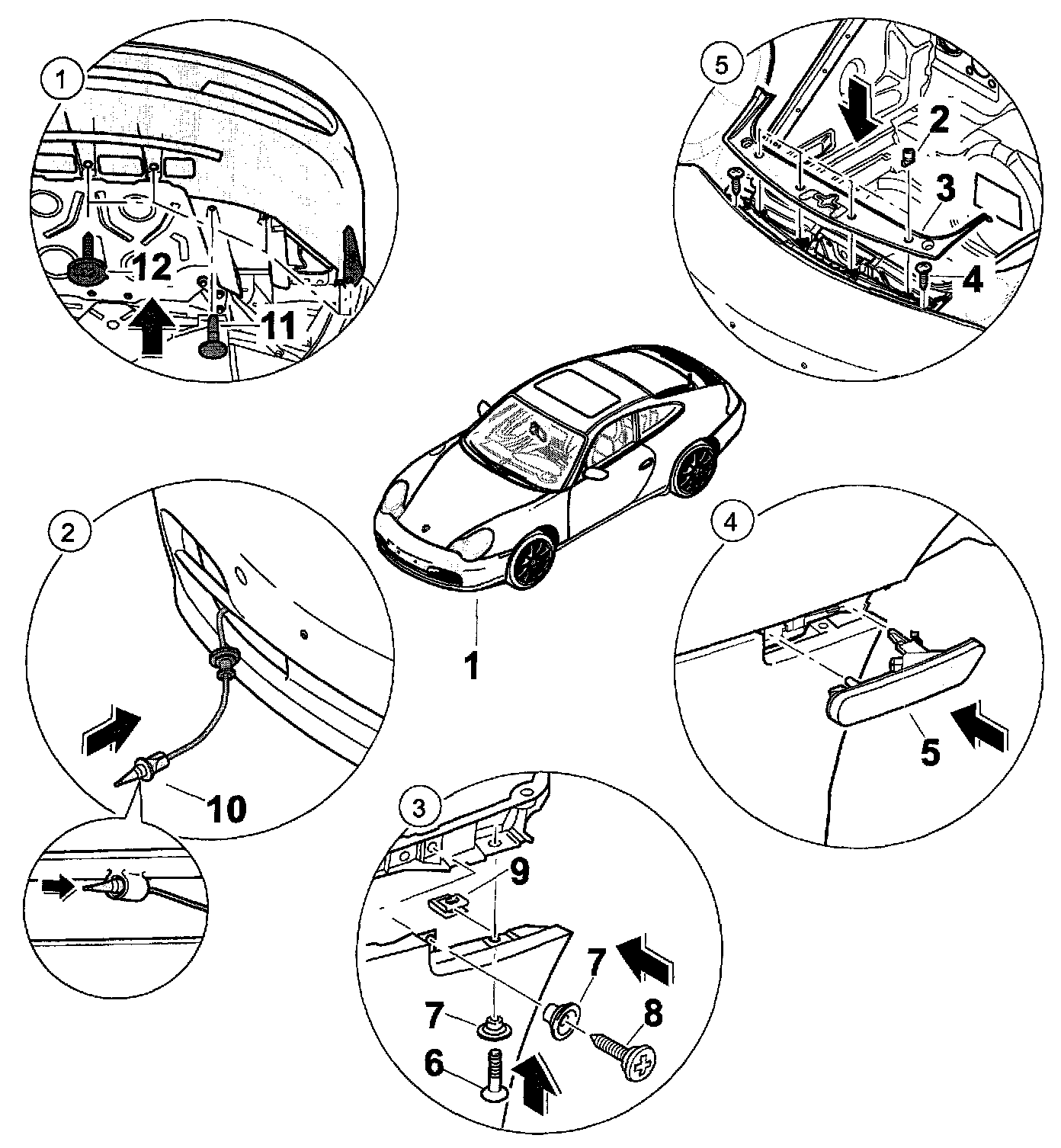

Removing And Installing Front Spoiler

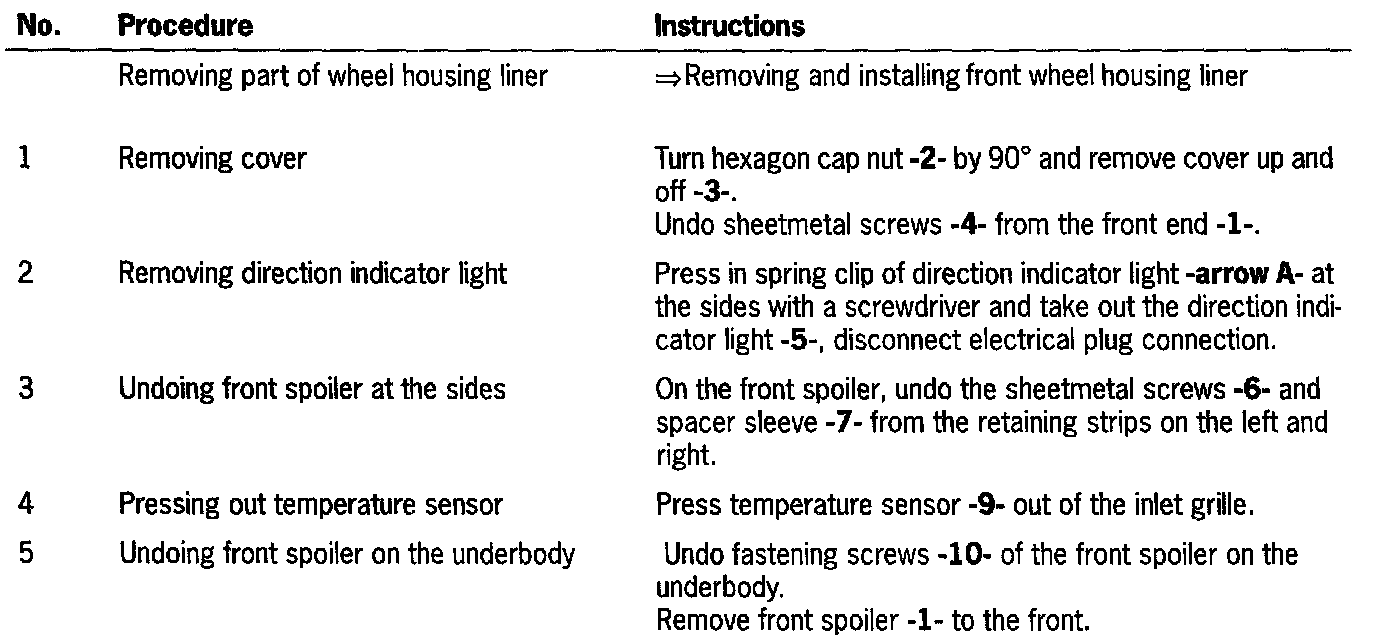

Removing front spoiler

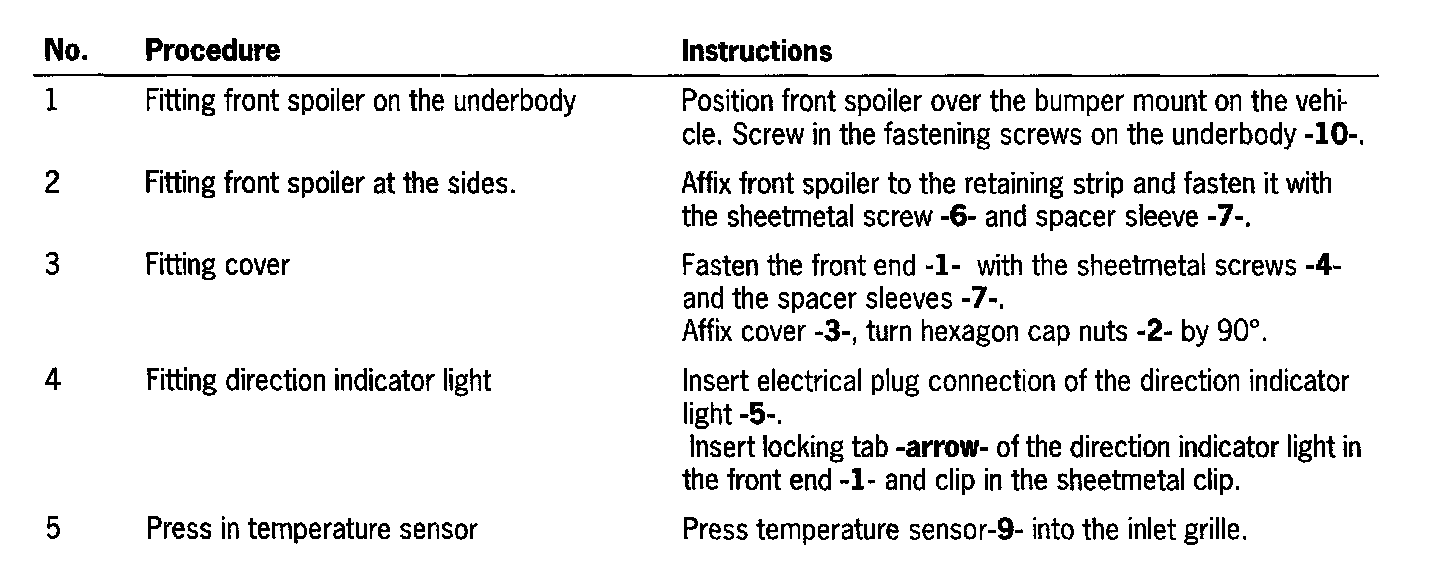

Installing front spoiler










Test and adjusting values

Set gap dimensions on the lid, wing and main headlights according to the specified dimensions.
- Refer to Diagram - body gap dimensions up to model year 2001
- Refer to Diagram - body gap dimensions as of model year 2002

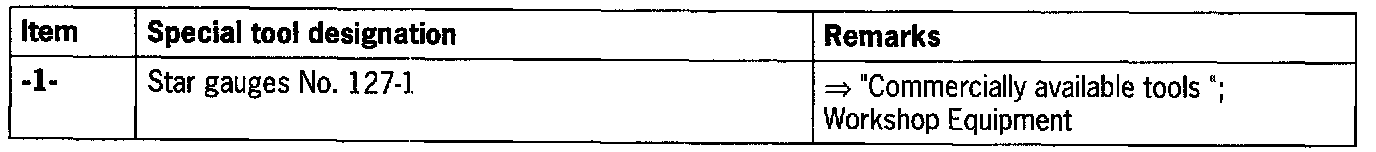

Tools and materials
