Removal and Replacement

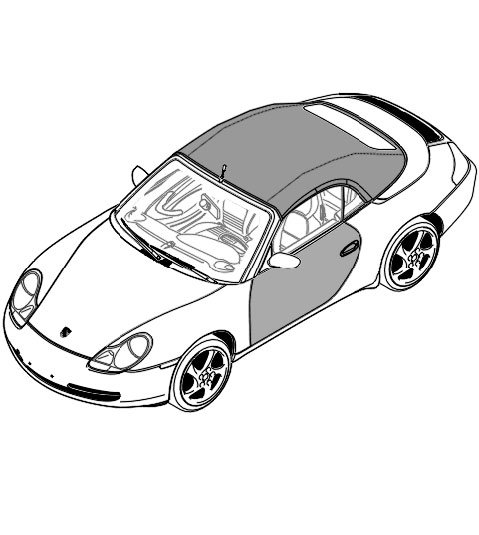

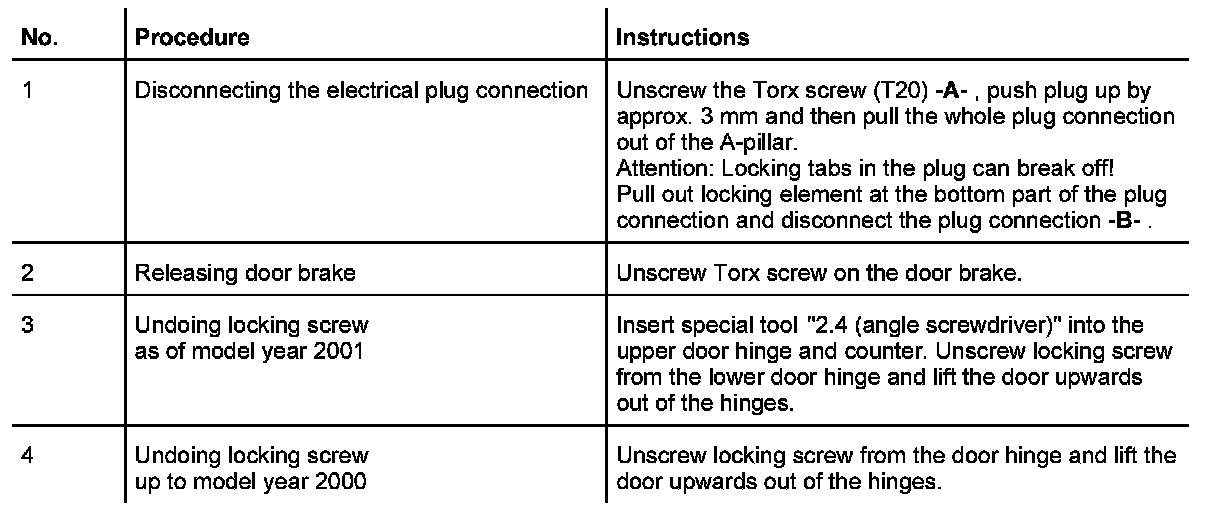

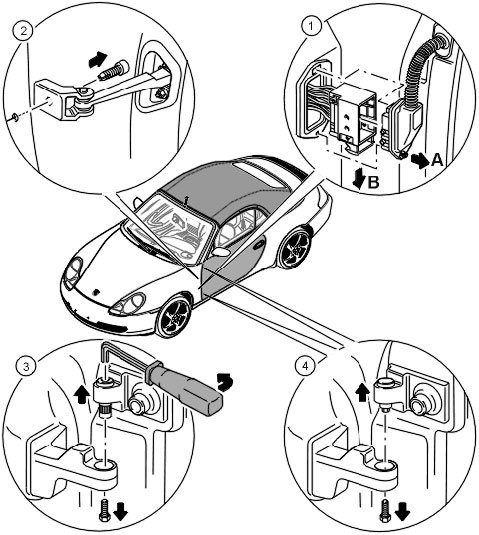

Removing And Installing Door










WARNING: Danger of injury if side airbag units in the door are triggered while ignition key is not removed

- Always remove ignition key during body work, and do not commence adjustment work until a waiting period of at least 1 minute has elapsed.
- When working on the airbag system and during straightening work in the context of body repairs, the ground strap must be disconnected.
