Sealing Ring For Differential, Removing and Installing

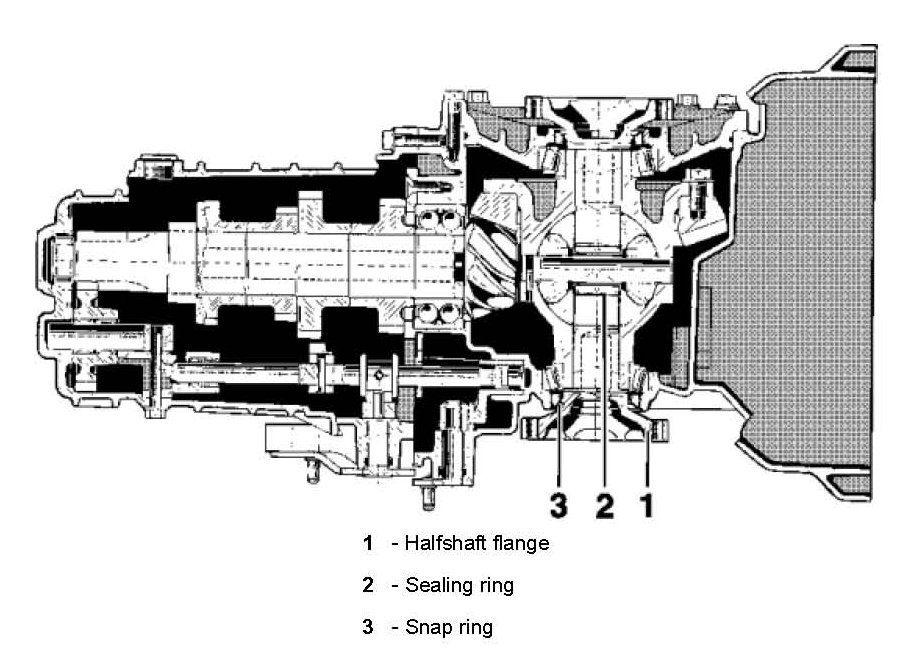

392219 Sealing ring for differential -- Removing and installing
halfshaft flange

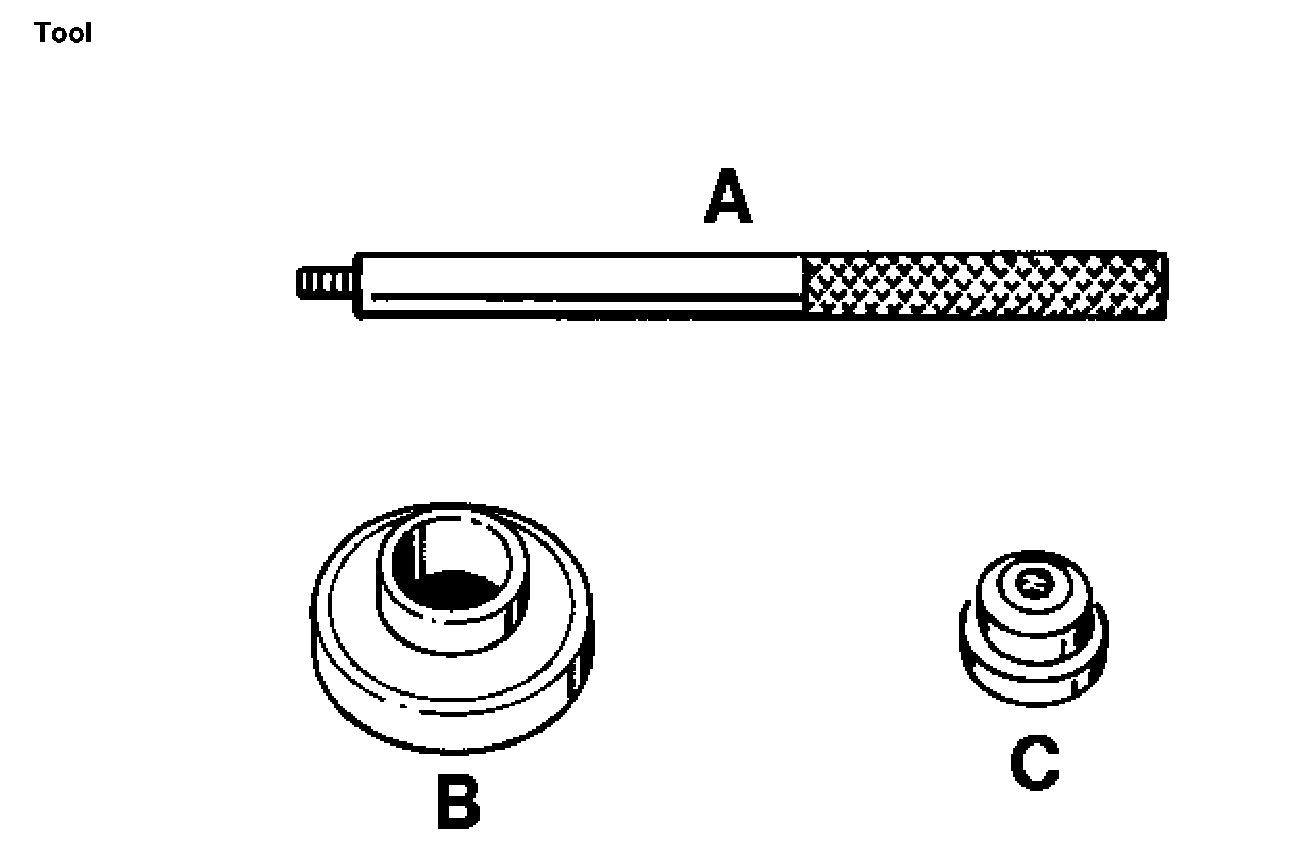

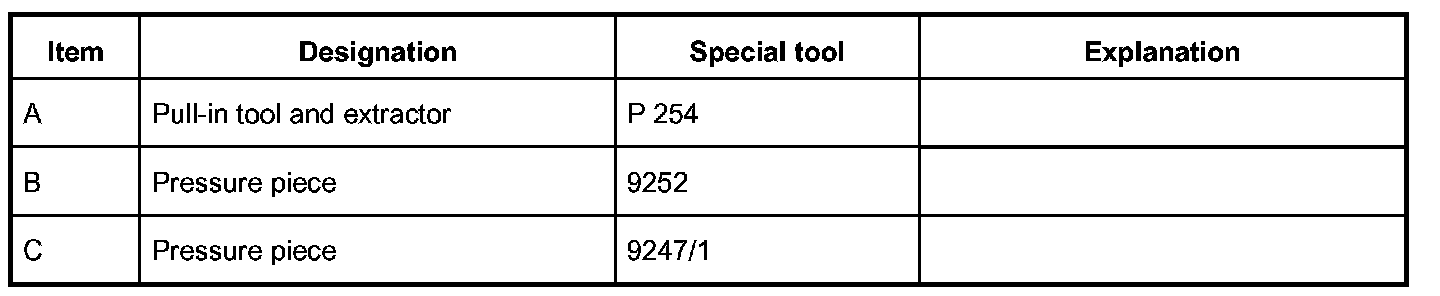

Tool















Information
- The sealing rings can also be replaced with the transmission installed.

Removal

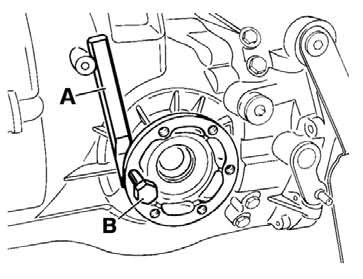

1. Remove right halfshaft flange. To do this, place a chisel or spacer "A" under the halfshaft flange and pull out the halfshaft flange by turning the screw "B".







Information

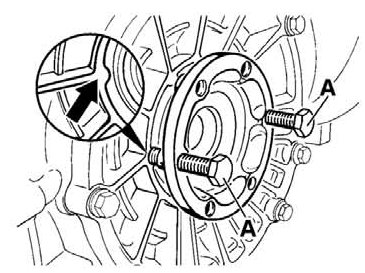

- Pull out left halfshaft flange by screwing in the hexagon-head bolts "A" on alternate sides. The bolts must be supported on the rib reinforcements of the cover (see Figure).







2. Lever out sealing ring using a suitable tool.


Installation

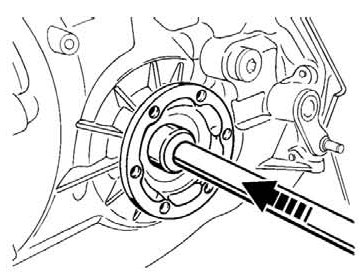

1. Fill the space between the dust and sealing lips with grease (e.g. Liqui - Moly) and drive in the sealing ring up to the mounting face using special tool 9252.
2. Always replace the snap ring for the halfshaft flange. To do this, clamp the flange in the vice with protective jaws and press out the
snap ring with the new snap ring "A".

A - New snap ring





3. Grease the snap ring well and drive in the halfshaft flange using the special tools P254 and 9247/1.
