Fault Code 4480

Fault Code 4480

Booster pump

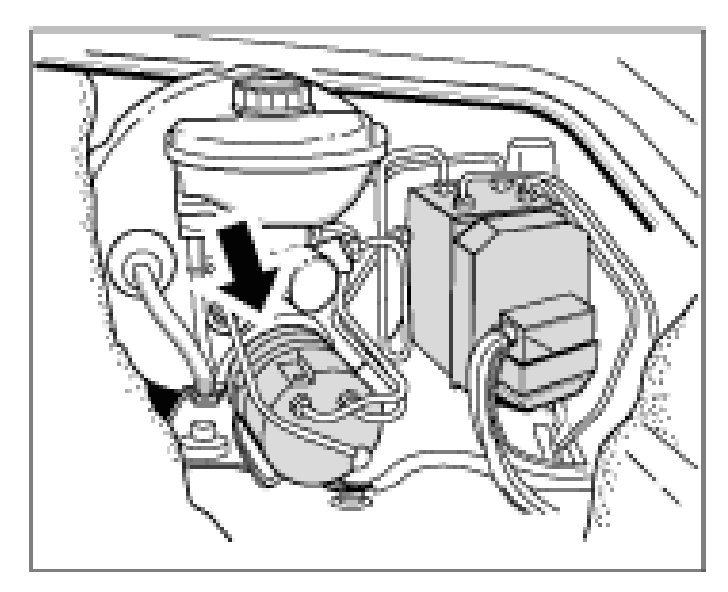

Booster pump Carrera 2

The booster pump is located at the front right in the 911 Carrera 2.







Booster pump Carrera 4

The booster pump in the 911 Carrera 4 is located next to the hydraulic unit.

Diagnostic conditions
- Booster pump actual value is evaluated and displays an implausible value

Possible cause of fault
- Short circuit to ground/B+ or open circuit
- Booster pump motor locked up/faulty
- Wiring/ plug connection faulty

NOTE: Do not jumper the pump; it must not run dry under any circumstances.

Affected terminals
PSM 5.3 Terminals 22, 24 and 51
PSM 5.7: Terminals 2, 3 and 4

Diagnosis/troubleshooting PSM 5.3

Diagnosis/troublesooting PSM 5.3 (Part 1):

Diagnosis/troublesooting PSM 5.3 (Part 2):

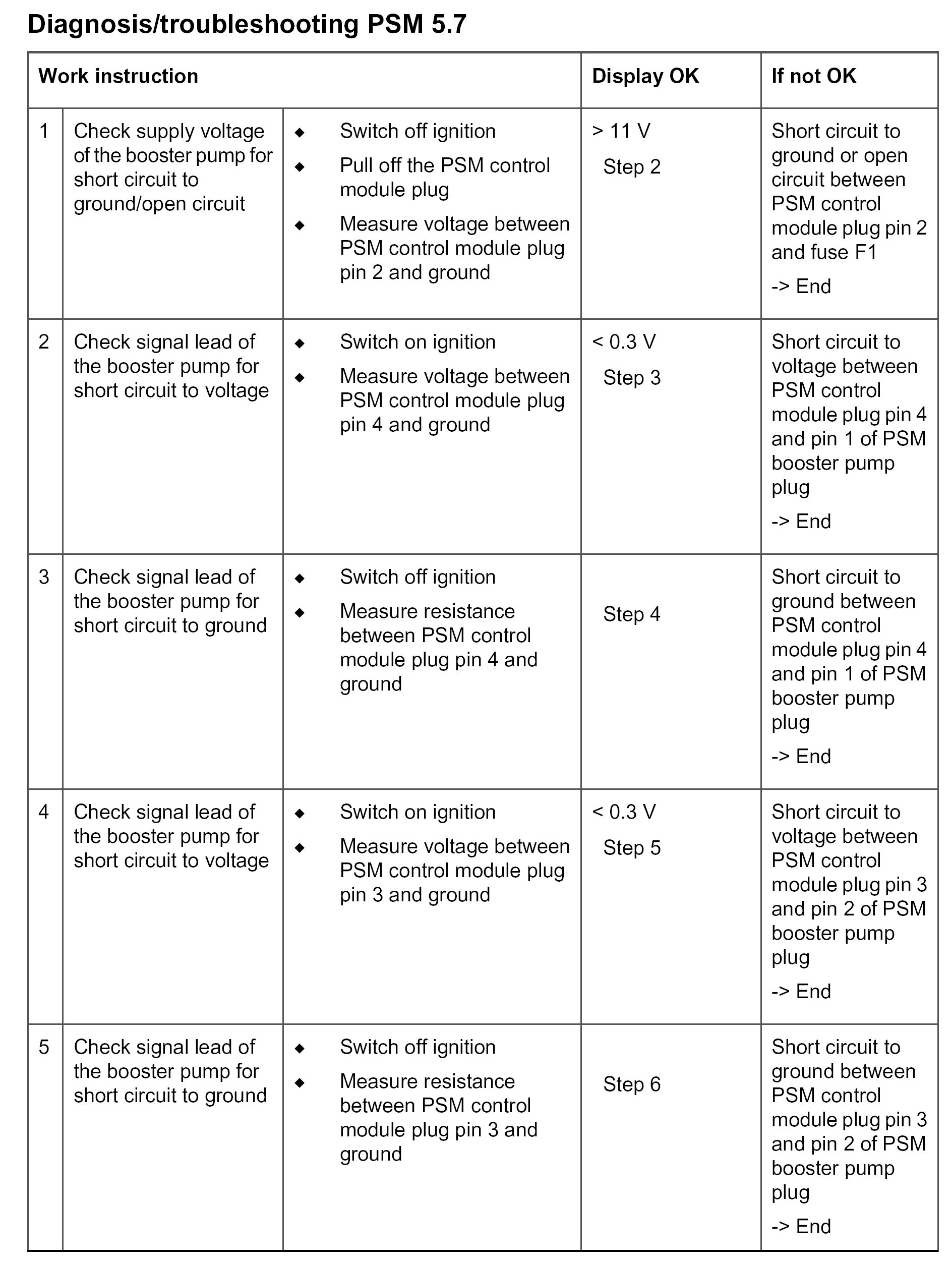

Diagnosis/troubleshooting PSM 5.7

Diagnosis/troublesooting PSM 5.7 (Part 1):

Diagnosis/troublesooting PSM 5.7 (Part 2):
