Fault Code 2



Fault Code 2

Airbag warning light

Diagnostic conditions
- Ignition on

NOTE: Due to a short circuit bridge in the plug of the triggering unit for the airbag, the warning light wiring short-circuits to ground if the plug is disconnected.

Possible cause of fault
- Faulty fuse
- Airbag warning light faulty (no bulb, cannot be exchanged)
- Short circuit to B+/ground or open circuit in the wiring between the instrument cluster and the airbag triggering unit

Affected pins
Pin 7

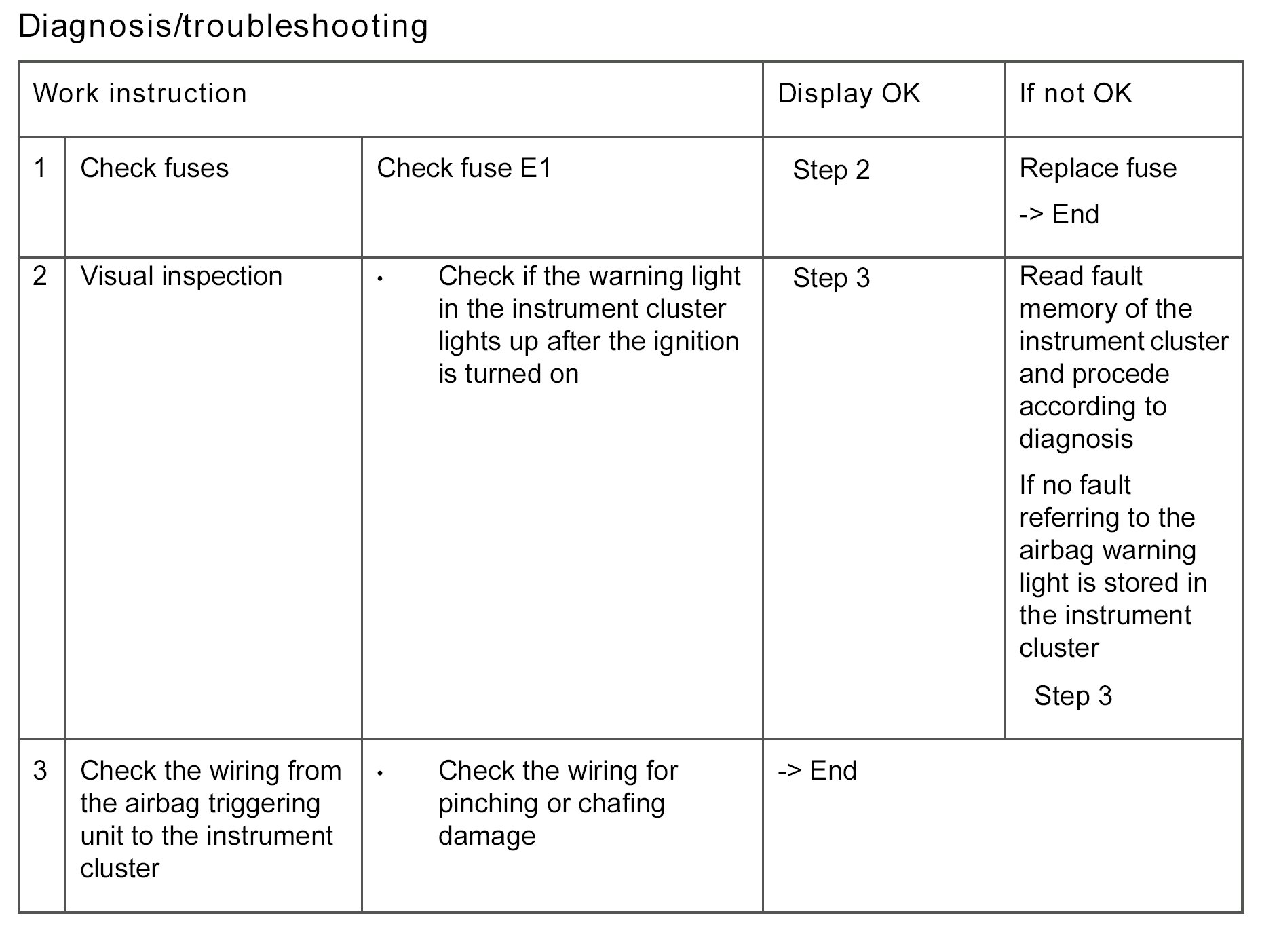

Diagnosis/troubleshooting


Diagnosis/troubleshooting:
