Component Arrangement

Component Arrangement

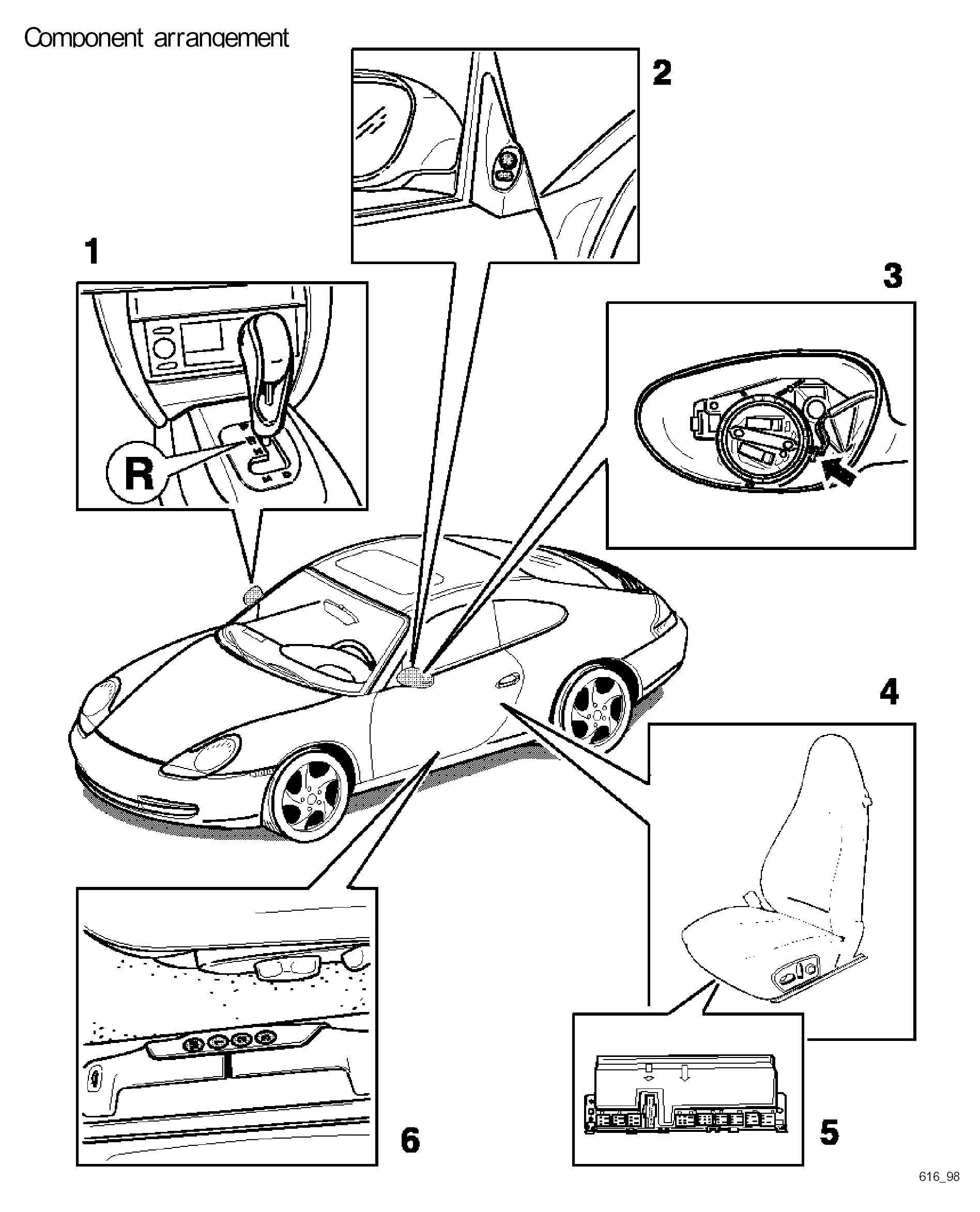

Component Arrangement:

Function Of Individual Components

1. Parking aid
When reverse gear is engaged, the corresponding rearview mirror (right-hand drive or left-hand drive according to coding) is lowered by the angle stored. Manual adjustment of the seat motors is carried out parallel to the lowering of the rearview mirror. Automatic adjustment interrupts the lowering procedure. If reverse gear is still engaged after automatic adjustment is complete, the rearview mirror is lowered again.

2. Rearview mirrors
Manual adjustment of both rearview mirrors is carried out with the switch for rearview mirrors or changeover switch for rearview mirrors. When the desired positions have been adjusted and stored by means of the switch for memory seat adjustment, automatic adjustment of the rearview mirrors is carried out by actuating the corresponding switch (1, 2 or 3)

3. Support with gear unit
The support with gear unit consists of the following components:
- Two electric motors with a potentiometer
- Gear unit

4. Front seat
The following are the possibilities for adjusting the front seat:
- Backrest
- Front height
- Rear height
- Longitudinal direction
- Upper lumbar
- Lower lumbar

When the desired positions have been found and stored by means of the switch for memory seat adjustment, they can be called up at the push of a button when required.

5. Control module
The control module is fastened under the front seat (driver's side) with two screws. There is a total of 10 connection points on the control module.

6. Switch for memory seat adjustment
These switches [M, 1, 2, 3] can be used to store or call up the optimum positions once they have been found. The systems enables adjustment values for three persons to be stored.
