Removing and Installing Console For Telephone

918819 Removing And Installing Console For Telephone

Removing console for telephone

Installation position:

1. Unscrew the two fastening screws -1- and remove the mounting plate -2-.

Unscrewing fastening screw -1-:

2. Carefully unclip the cover -3- with a screwdriver.

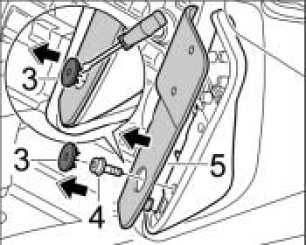

Unclipping cap:

3. Unscrew the fastening screw -4- and remove the carrier -5-.

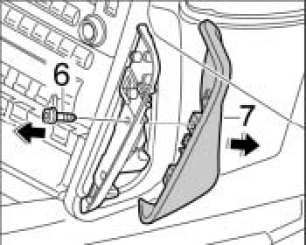

Unscrewing fastening screw and removing trim:

4. Unscrew the fastening screw -6- and remove the trim -7-.

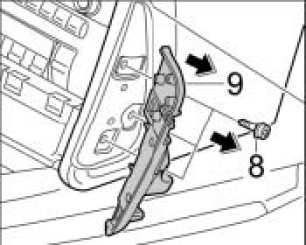

Unscrewing fastening screw and removing telephone console:

5. Unscrew the three fastening screws -8- and remove console for the telephone -9-.

Installing console for telephone

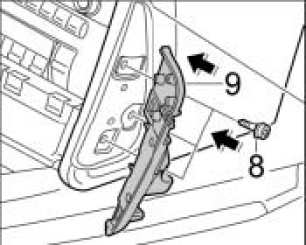

Positioning and securing telephone console:

1. Position console for telephone -9- and screw down with the three fastening screws -8-. Tightening torque 1.5 ftlb. ± 0.2 ftlb.

Positioning trim and securing with the fastening screw:

2. Press trim -7- on the console and screw down with the fastening screw -6-. Tightening torque 1.5 ftlb. ± 0.2 ftlb.

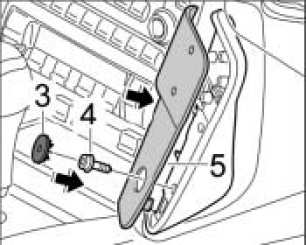

Positioning and securing carrier:

3. Press carrier -5- on the console and screw down with the fastening screw -4-. Tightening torque 1.5 ftlb. ± 0.2 ftlb.
4. Position the cover -4- and clip it into place.

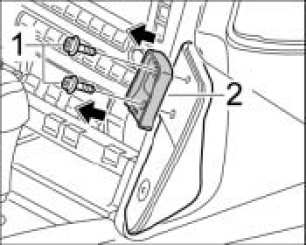

Securing mounting plate:

5. Secure the mounting plate with the fastening screws -1-. Tightening torque 1.5 ftlb. ± 0.2 ftlb.
6. Place the handset in the bracket.
